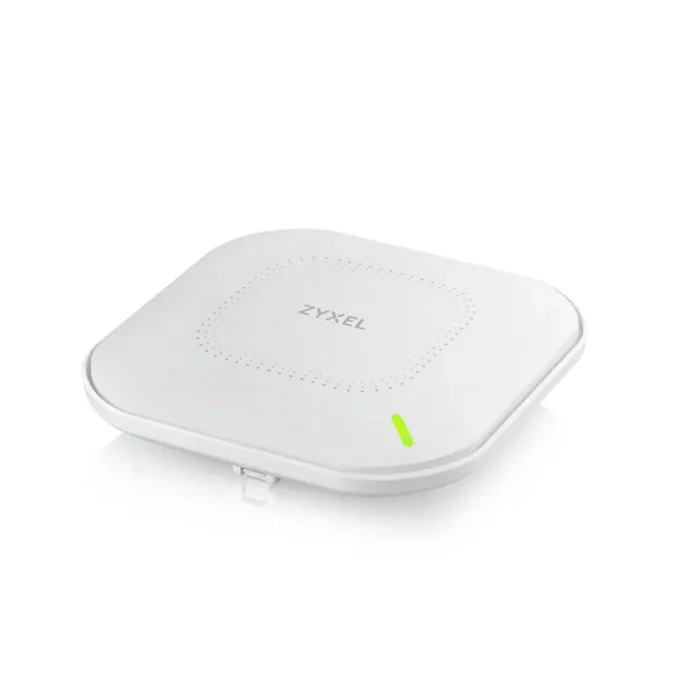

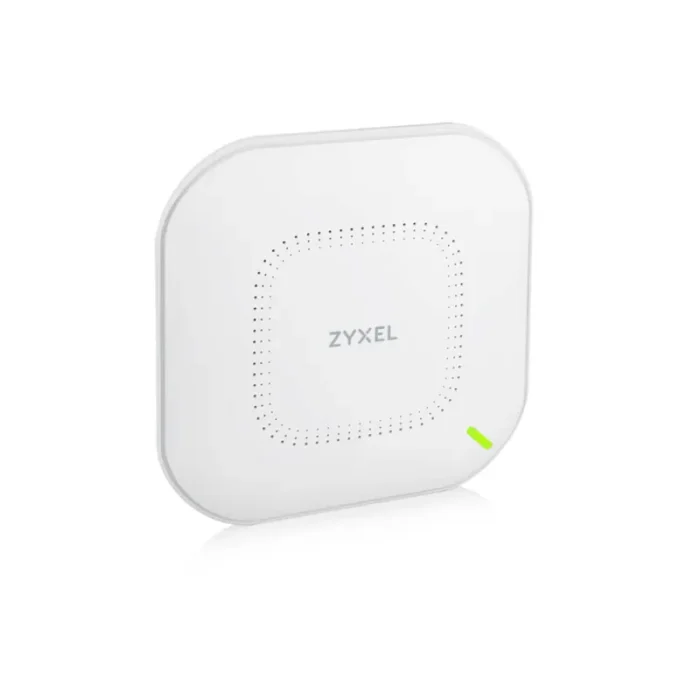

Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 575 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1000 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
WiFi 6, Wait No More
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
| Features |
| Receiver sensitivity |
Min. Rx sensitivity up to -101 dBm |
| Transmitting power |
22 dBmW |
| Band steering |
Yes |
| Virtual LAN features |
SSID-based VLAN assignment |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Automatic channel selection |
Yes |
| Automatic channel scanning |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth |
0.08 GHz |
| Frequency band |
2.412 – 2.472, 5.470 – 5.725 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
575 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| Protocols |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Routing protocols |
IP |
| Management features |
| Command-line interface (CLI) |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (typical) |
17 W |
| Input current |
1.5 A |
| AC input voltage |
5 – 12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Table, Wall |
| Antenna |
| Polarization |
Dual polarization |
| Antenna gain level (max) |
6 dBi |
| Antennas quantity |
2 |
| Antenna features |
Integrated antenna |
| Antenna type |
Internal |
| Certificates |
| Certification |
FCC Part 15CFCC Part 15EETSI EN 300 328EN 301 893LP0002EMCFCC Part 15BEN 301 489-1EN 301 489-17EN55022EN55024EN61000-3-2/-3EN60601-1-2BSMI CNS13438SafetySafety EN 60950-1IEC 60950-1BSMI CNS14336-1 |
| Weight & dimensions |
| Weight |
453 g |
| Height |
39 mm |
| Depth |
180 mm |
| Width |
180 mm |
| Packaging data |
| Package weight |
770 g |
| Package height |
64 mm |
| Package depth |
216 mm |
| Package width |
229 mm |
| Packaging content |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-30 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
10 – 95% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
