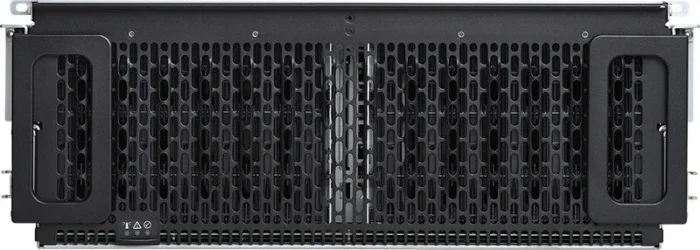

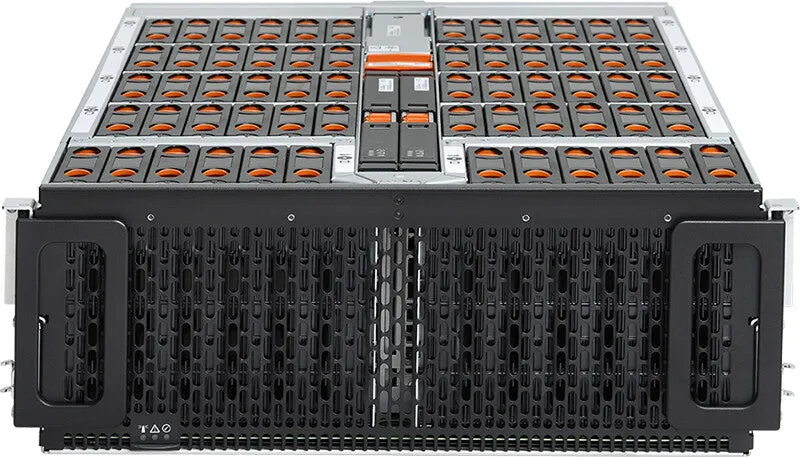

Western Digital Ultrastar Data60 disk array 1200 TB Rack (4U) Black
- Up to 60 Ultrastar HDDs (SAS or SATA)
- Up to 1.2PB1 raw capacity in 4U using forthcoming 20TB SMR HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.
A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Data transfer rate | 12 Gbit/s |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Storage drive size | 3.5″ |
| Storage drive interface | Serial Attached SCSI (SAS) III |
| Number of storage drives supported | 60 |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 1200 TB |
| Installed storage drive type | HDD |
| Storage drives installed | Yes |
| Ports & interfaces | |
|---|---|
| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 12 |
| USB connectivity | No |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Noise level | 72 dB |
| Number of fans | 6 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (4U) |
| Device class | Small & Medium Business |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 1600 W |
| Weight & dimensions | |
|---|---|
| Disk enclosure weight | 23.7 kg |
| Weight | 79.4 kg |
| Height | 175 mm |
| Depth | 712 mm |
| Width | 447 mm |
| General | |
|---|---|
| Product family | Ultrastar |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Operating temperature (T-T) | 5 – 35 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717020 |
