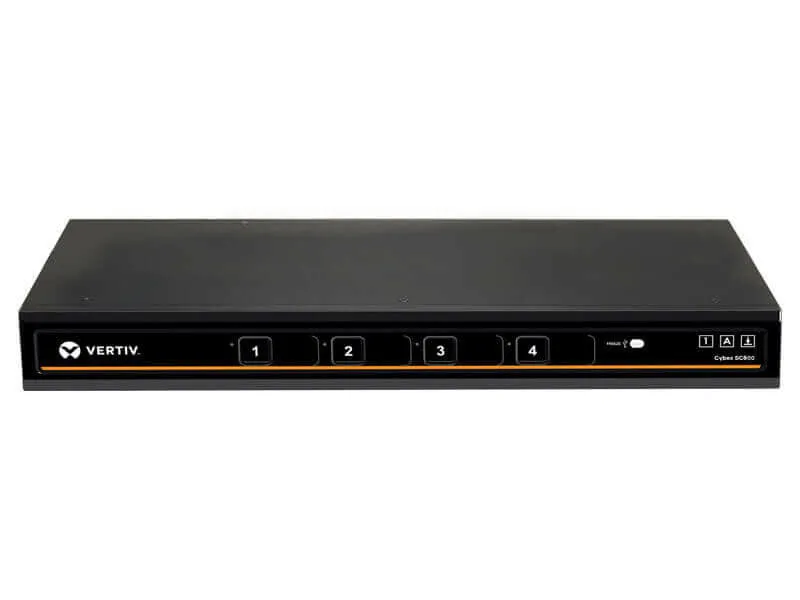

Vertiv SC940DVI-400 KVM switch Black
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- Unidirectional data flow of keyboard, mouse, video, and audio
- Isolated switch ports provide discrete processing paths to each computer
- Native video supports up to 2560 x 1600 at 60 Hz or 4K UHD 3840 x 2160 at 30 Hz (using HDMI-to-DVI-D cable)
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Touch screen support
- Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
- Ease of setup and use Button LEDs can be customized for enhanced channel identification
- Always-on active anti-tampering system, and heavy-duty tamper-resistant enclosure with holographic tamper evident seals
The Vertiv™ Cybex™ Secure DVI-D KVM is ideal for environments where monitoring and
managing of multiple computers, covering various degrees of secure data is required.
Through Cursor Navigation Switching (CNS), users have the flexibility to manage and
monitor their data by simply pressing the left CTRL key and moving their mouse across
window borders.

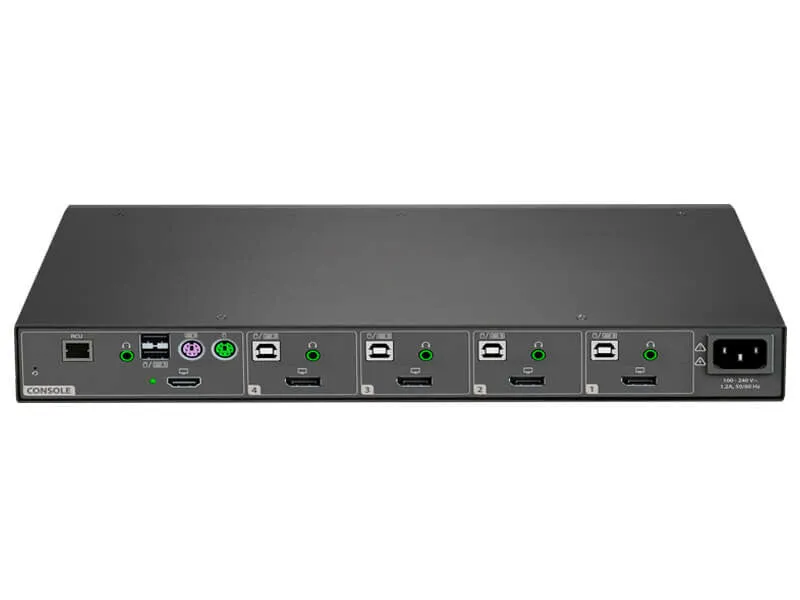

| Ports & interfaces |
| Headphone outputs |
1 |
| USB 2.0 Type-A hub ports quantity |
2 |
| Console ports |
3.5mm headphone, DVI-D, USB A |
| USB 2.0 Type-B ports quantity |
1 |
| DVI-D ports quantity |
2 |
| Video port type |
DVI-D |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Performance |
| Video bandwidth |
30 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
| Certification |
FCC class A, CE, TUV US, TUV Canada, RCM, VCCI |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
| Built-in display |
No |
| Power |
| External power adapter |
Yes |
| Input current |
2.5 A |
| Input voltage |
100 – 240 V |
| Power source |
AC |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
1.9 kg |
| Height |
58 mm |
| Depth |
127 mm |
| Width |
348 mm |
