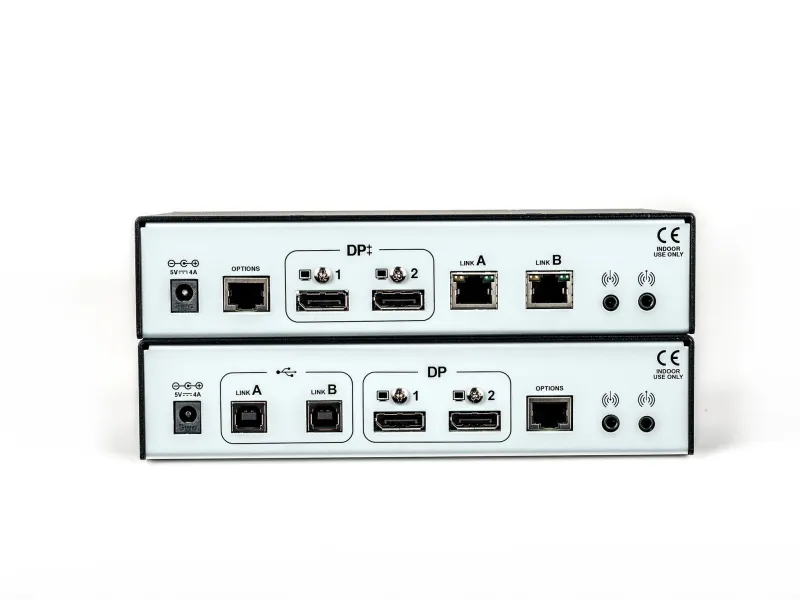

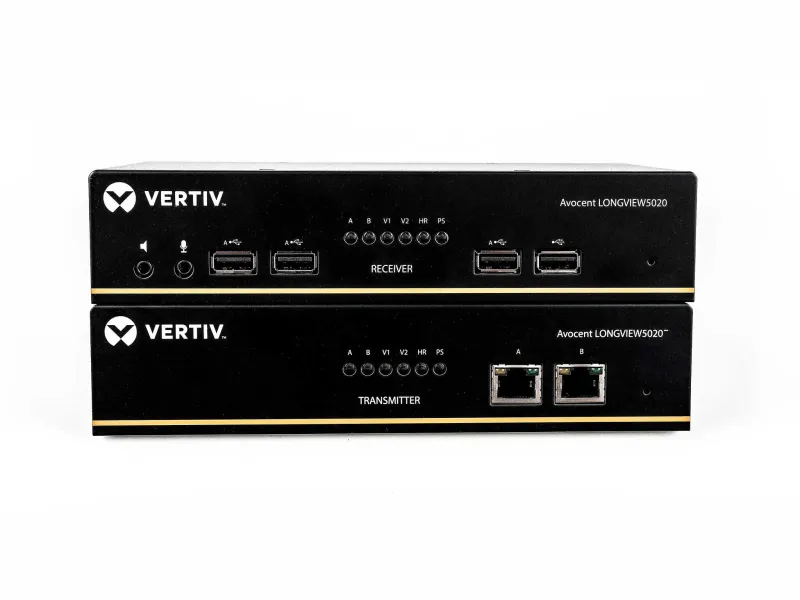

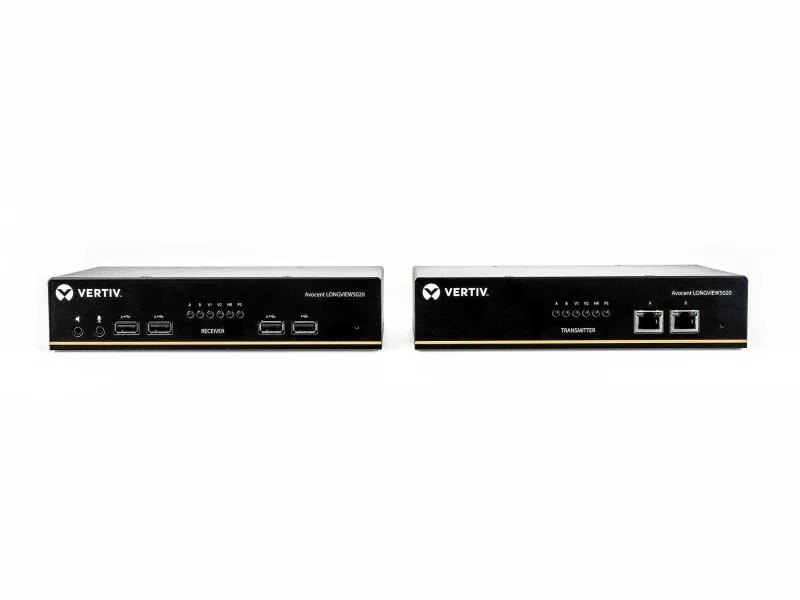

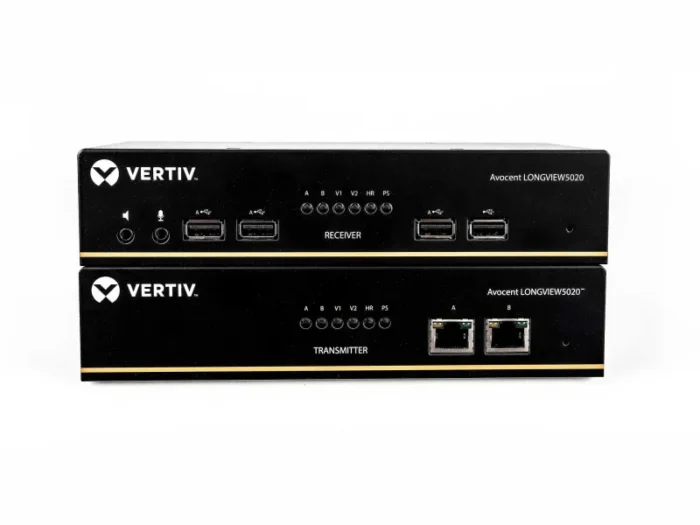

Vertiv Avocent LV5020P KVM extender Transmitter & receiver
- High-definition Display Port Video – Supports DisplayPort Dual Mode (DP++) and can transmit maximum resolution of up to 3840×2160 (UHD 4K) with a single monitor, or two 1920 x 1200 (WUXGA) video streams in a dual monitor configuration
- USB 2.0 – Enables connection of up to six USB human interface devices including mice, keyboards, graphics tablets, touchscreens, jog shuttles, joysticks, 3D explorers, mass storage devices and isochronous devices like webcams and headsets
- HD-quality – High definition analog stereo audio input and output. S/PDIF input also supported
- Plug and play – The LV5000 Series extenders are delivered in a zero config state so you can plug them in and start working right away. There’s no need for drivers or software to be installed
The Avocent LV5000 series of high performance extender solutions provide the desktop experience in environments where conditions make it is advantageous to operate and manage critical business systems from a secure, monitored location. Users can access systems and applications remotely without sacrificing video quality, audio quality or device capability.
| Features | |
|---|---|
| Audio support | Yes |
| Certification | CE, FCC, UL |
| LED indicators | Yes |
| Plug and Play | Yes |
| Easy to install | Yes |
| Material | Metal |
| Product colour | Blue |
| Maximum digital resolution | 3860 x 2160 pixels |
| Rack mounting | Yes |
| Cable types supported | Cat5e, Cat6a, Cat7 |
| Maximum transfer distance | 150 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 2 |
| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 2 |
| Transmitter local video port type | DisplayPort |
| Transmitter local video port | Yes |
| Transmitter video port type | DisplayPort |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 2 |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 20 W |
| Power consumption (transmitter) (max) | 20 W |
| AC adapter output current | 0.8 A |
| AC adapter output voltage | 5 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Receiver weight | 750 g |
| Receiver height | 4.4 cm |
| Receiver depth | 12 cm |
| Receiver width | 19.8 cm |
| Transmitter weight | 750 g |
| Transmitter height | 4.4 cm |
| Transmitter depth | 1.2 cm |
| Transmitter width | 19.8 cm |
| Packaging content | |
|---|---|
| Included power plug types | UK |
| Mounting bracket(s) included | No |
| Quick installation guide | Yes |
| Cables included | AC, Audio (3.5mm), DisplayPort, USB |
| AC adapter included | Yes |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Video in | DisplayPort |
| Maximum resolution | 3840 x 2160 pixels |
