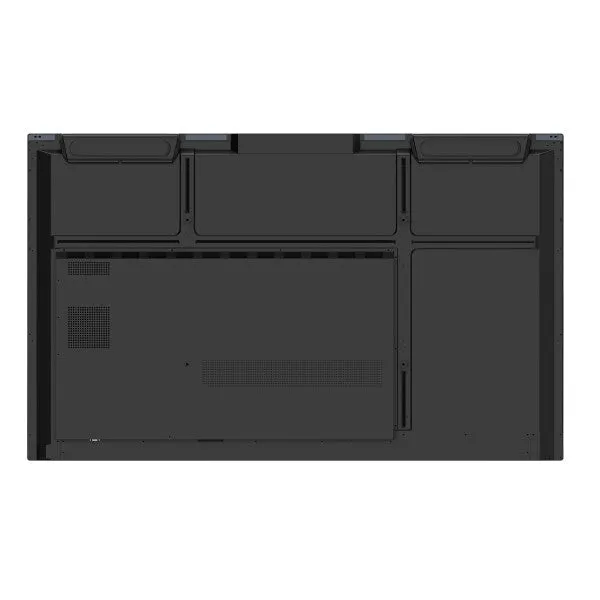

V7 IFP8603-V7PROM Interactive Display – 86 Inch 4K Android 13 EDLA Certified, 16GB RAM 256GB ROM, 2 x 8W + 2 x 18W Speakers,includes Device management, Wi-Fi, Bluetooth Wall Mount, Google Play Store
- Fast Android 13 system with powerful Octacore CPU, boosted with increased ROM and RAM delivering smoother performance, it tackles demanding apps with ease, and offers ample storage for your data and applications
- Google Play Store included for downloading applications
- 4K Interactive Display with 50 point touch and palm rejection
- Multitasking with easy to use built in applications for leading classrooms and meetings interactively with the audience
- Wired and Wireless Networking included with Internet access and screen sharing to and from almost any device
- USB-C PD 100w Device Charging, USB-C 4K video out, and plenty of USB, video, network, and wireless connectivity
- 2 x 18W + 2 x 8W, 8 Microphone Array, and Bluetooth wireless Connectivity
- Bytello DMS with 5 year subscription included unified Bulk Remote Management with status monitoring, time & channel, switching, volume control and information broadcasting
V7 Interactive 4K Pro Model Displays allow users to easily collaborate, save and share ideas interactively and digitally in meeting rooms and classrooms. The system uses a powerful Octa-Core processor and graphics chipset with increased memory. The EDLA certification with the included Google Play Store gives users access to a vast library of downloadable apps for including productivity, collaboration, entertainment, education, and gaming. It is optimal for multi-window multitasking applications for leading classrooms or meetings including whiteboard, note taking, web browser, screen sharing and recording, and more. With Bytello Share, you can share and receive content between the Interactive Display and Windows, Mac OS, Chrome OS, Android, and iOS Devices using the included application or using Miracast, ChromeCast or AirPlay (up to 9 devices split screen at one time). Connect to a variety of resources and provide a great interactive multimedia environment with 50 point touch with palm rejection, 2 x 18 watt + 2 x 8 watt front facing speakers and a microphone array, 2 USB-C ports with Power Delivery (1 x 100 watt, 1 x 15 watt) for your devices, and many other ports including USB, Video, and Network to connect with other devices.
| Display |
| Hardness |
9H |
| Working area |
1895.04 x 1065.96 mm |
| Pixel pitch |
493.5 x 493.5 mm |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Number of simultaneous touchpoints |
50 |
| Touchscreen |
Yes |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
4000:1 |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Direct-LED |
| Panel type |
VA |
| HD type |
4K Ultra HD |
| Anti-glare screen |
Yes |
| Display brightness |
450 cd/m² |
| Display diagonal |
2.18 m (86″) |
| Computer system |
| RAM capacity |
16 GB |
| Maximum internal memory |
256 GB |
| Audio |
| Speaker power |
52 W |
| Number of built-in speakers |
4 |
| Built-in speaker(s) |
Yes |
| Projector |
| Aspect ratio |
16:9 |
| Built-in projector |
No |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| RS-232 ports |
1 |
| Headphone connectivity |
3.5 mm |
| Audio output |
1 |
| OPS slot |
80 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| HDMI output ports quantity |
1 |
| USB Type-C ports quantity |
3 |
| HDMI ports quantity |
5 |
| USB connector type |
USB Type-C |
| USB 2.0 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ergonomics |
| Certification |
CE,Energy Star,FCC,RoHS,WEEE |
| Panel mounting interface |
800 x 600 mm |
| VESA mounting |
Yes |
| Product colour |
Black |
| Power |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
142.65 W |
| Power consumption (max) |
570 W |
| System requirements |
| Minimum processor |
CPU A76×4 + A55×4, GPU Mali-G610 MP4 |
| Mobile operating systems supported |
Android 13.0 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
63.5 kg |
| Height |
1171 mm |
| Depth |
86 mm |
| Width |
1957 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
80.2 kg |
| Package height |
1291 mm |
| Package depth |
225 mm |
| Package width |
2110 mm |
| Packaging content |
| Open Pluggable Specification (OPS) included |
Yes |
| Number of stylus pens |
2 |
| Stylus included |
Yes |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Cables included |
HDMI, USB Type-C |
| Manual |
Yes |
| Other features |
| Country of origin |
China |
