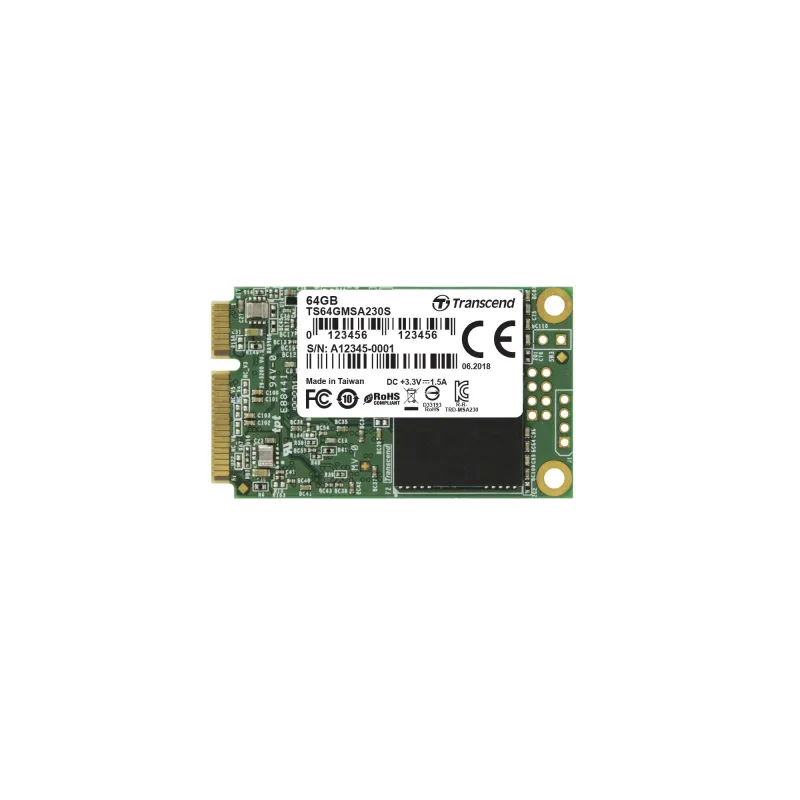

Transcend mSATA SSD 230S 64GB
- 3D NAND flash memory
- DDR3 DRAM cache
- Advanced Global Wear-leveling and Block management for reliability
- Built-in LDPC ECC (Error Correction Code) functionality
- Supports Advanced Garbage Collection, S.M.A.R.T. function, and Security Command
- Supports TRIM and NCQ commands
Transcend’s mSATA SSD 230S uses the SATA III 6Gb/s interface and a powerful controller, delivering blazing-fast performance, long-term reliability, and high cost-effectiveness. The compact mSATA form factor is just one-eighth the size of a standard 2.5″ SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
| Features |
| Certification |
CE/FCC/BSMI/KC/RCM |
| TBW rating |
40 |
| Linux operating systems supported |
Kernel 2.6.31 |
| Mac operating systems supported |
No |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Active garbage collection |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| Native Command Queuing (NCQ) |
Yes |
| Low-density parity-check (LDPC) |
Yes |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| RAID support |
Yes |
| DevSlp (device sleep) support |
Yes |
| Random write (4KB) |
50000 IOPS |
| Random read (4KB) |
35000 IOPS |
| Write speed |
200 MB/s |
| Read speed |
390 MB/s |
| Data transfer rate |
6 Gbit/s |
| Component for |
PC/Laptop |
| Memory type |
3D NAND |
| Interface |
Serial ATA III |
| SSD form factor |
mSATA |
| SSD capacity |
64 GB |
| Power |
| Operating voltage |
3.3 V |
| Weight & dimensions |
| Weight |
9 g |
| Height |
50.8 mm |
| Depth |
4.85 mm |
| Width |
29.9 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 – 70 °C |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
