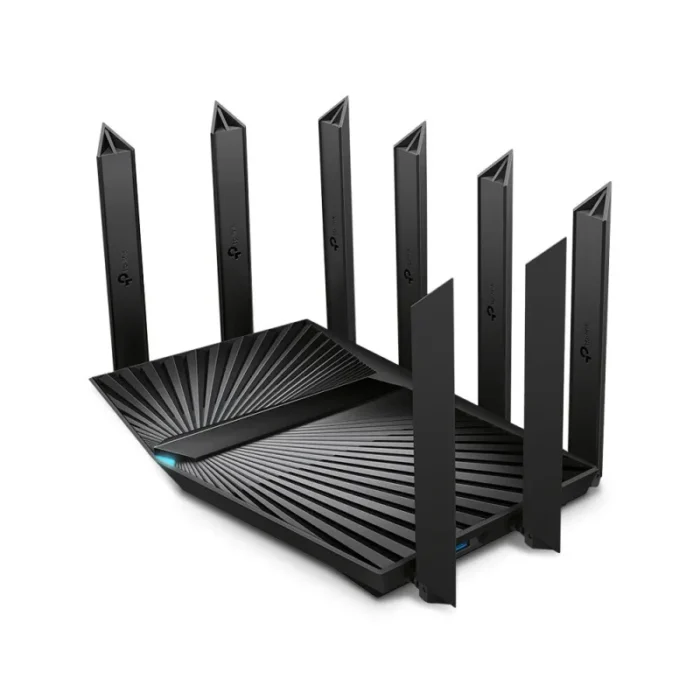

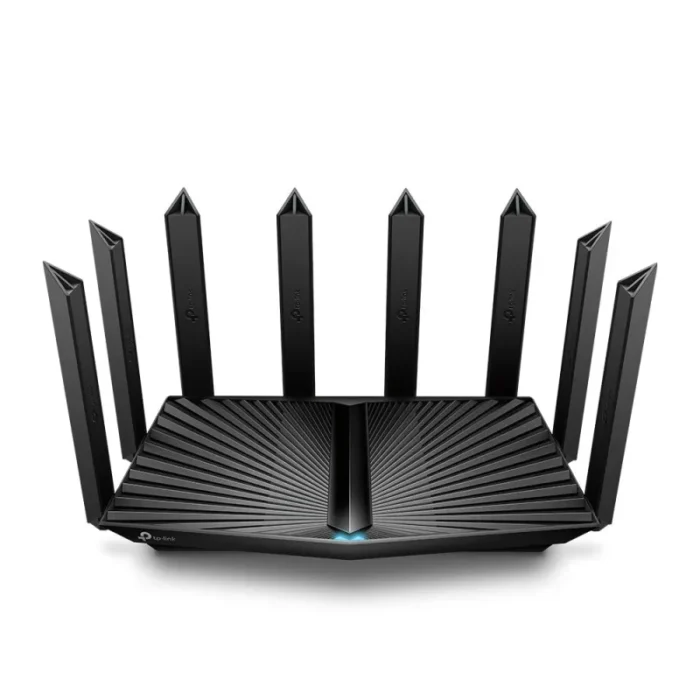

TP-Link Archer AX7800 Tri-Band 8-Stream Wi-Fi 6 Router
- Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1

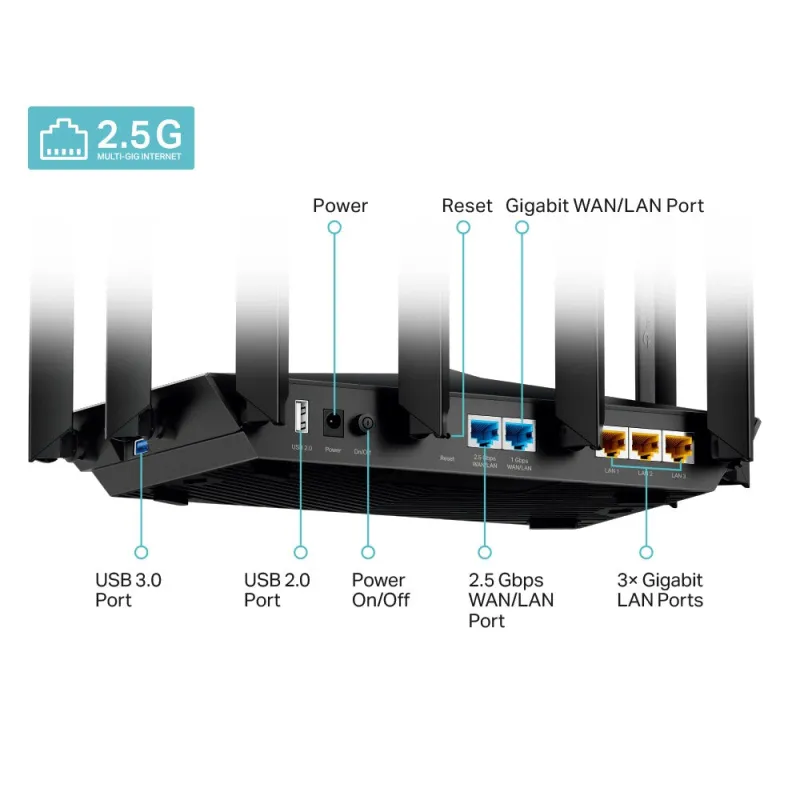

- Ultra Connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput
- Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage
- More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1
- Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats
- Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security
FASTER. BROADER. UNSTOPPABLE.
AX7800 Tri-Band 8-Stream Wi-Fi 6 Router
Hello Tri-Band AX7800, Goodbye Congestion
Combining tri-band WiFi with high-tech WiFi 6, Archer AX95 provides eight simultaneous data streams to deliver speeds up to 7.8 Gbps, achieving higher efficiency and lower congestion.
Go Faster — Multi-Gig Wired Connections
In addition to stunning wireless speeds of more than 7.8 Gbps, AX95 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.
Powerful Processing with High RAM
An advanced Broadcom™ chipset and high memory empowers AX95’s tri-band structure. Enjoy fast connections and minimal latency even under the heaviest of transmission loads.
Boosted WiFi Coverage Throughout Your Home
8× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially in hard-to-reach areas.
Massively Expanded Device Capacity
The number of IoT devices today creates greater demands on home WiFi. Archer AX95 future-proofs your home network with a higher capacity of up to 200+ devices, providing fast WiFi to all your devices.
OFDMA
Multiple devices share one channel at the same time
MU-MIMO
Offers 4×4 connections to reduce wait time
8 Streams
More simultaneous connections
Tri-Band
More available bandwidth
TP-Link OneMesh™
Flexibly Create Whole Home WiFi with Archer AX95
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
Unified Management
Manage your whole home WiFi from the central node via the Tether app/Web UI
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network’s data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropriate content to keep your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AX95 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX95 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notifications
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 7800 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN server | OpenVPN, PPTP, L2TP |
| Built-in FTP server | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 3 |
| Static route | Yes |
| Dynamic DNS (DDNS) | Yes |
| Automatic channel selection | Yes |
| Load balancing system | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Filtering | Yes |
| DDoS protection | Yes |
| Parental control | Yes |
| DoS attack prevention | Yes |
| Schedule access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | SPI Firewall |
| Firewall | Yes |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| Indication light | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Manual | Yes |
| Antenna included | Yes |
| AC adapter included | Yes |
| Antenna | |
|---|---|
| Antennas quantity | 8 |
| Antenna design | External |
| Features | |
|---|---|
| Processor cores | 4 |
| Processor frequency | 1700 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| External power adapter | Yes |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Weight & dimensions | |
|---|---|
| Width | 277.3 mm |
| Depth | 183.9 mm |
| Height | 57.3 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package type | Box |
- leaflet
- Quick Installation Guide
