TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router
- Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
4G LTE with AC1200 Wi-Fi to Stream from Everywhere

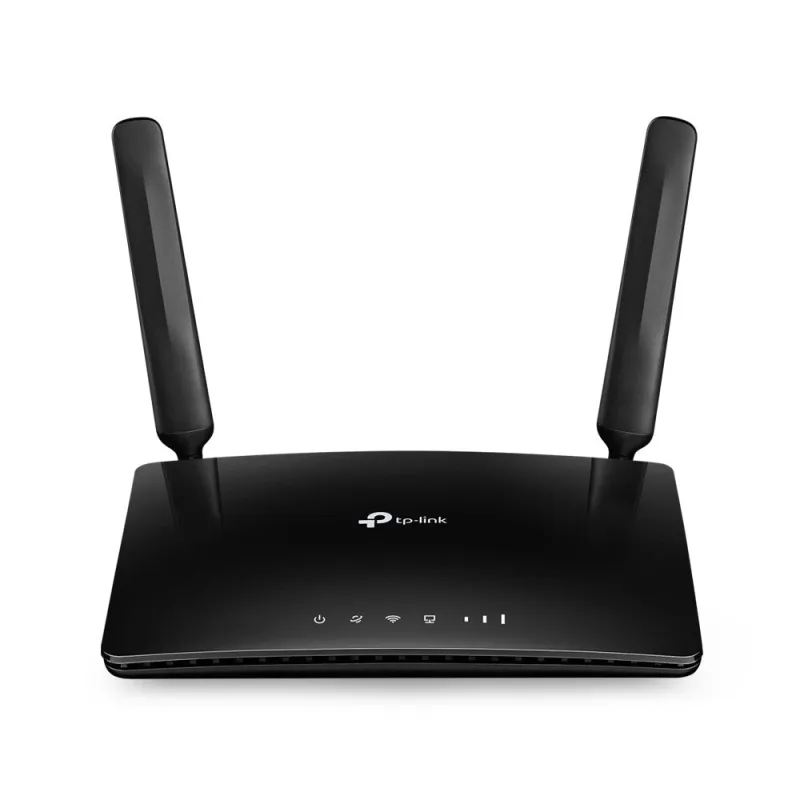

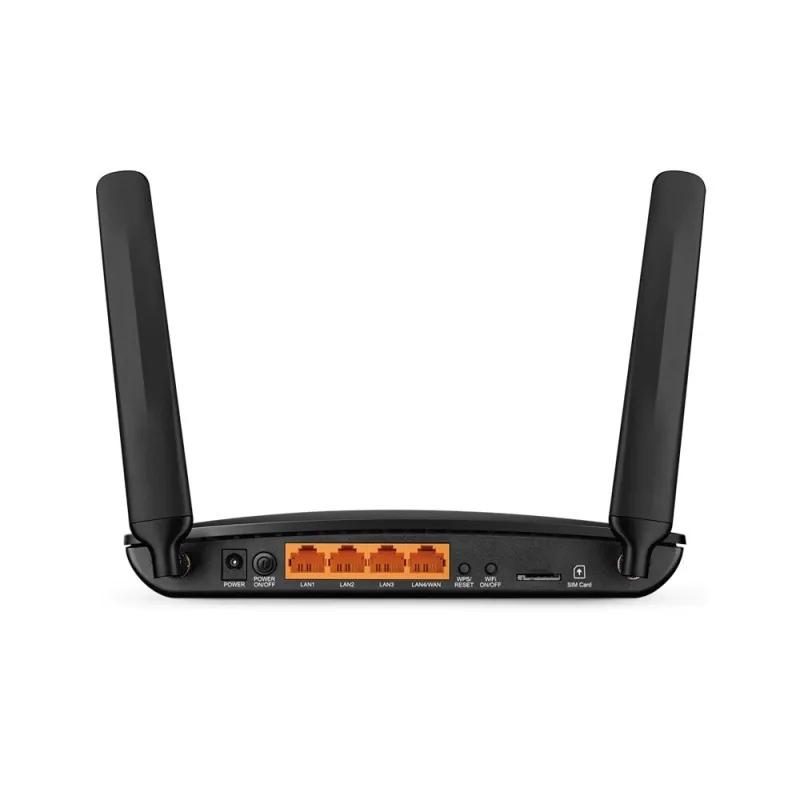

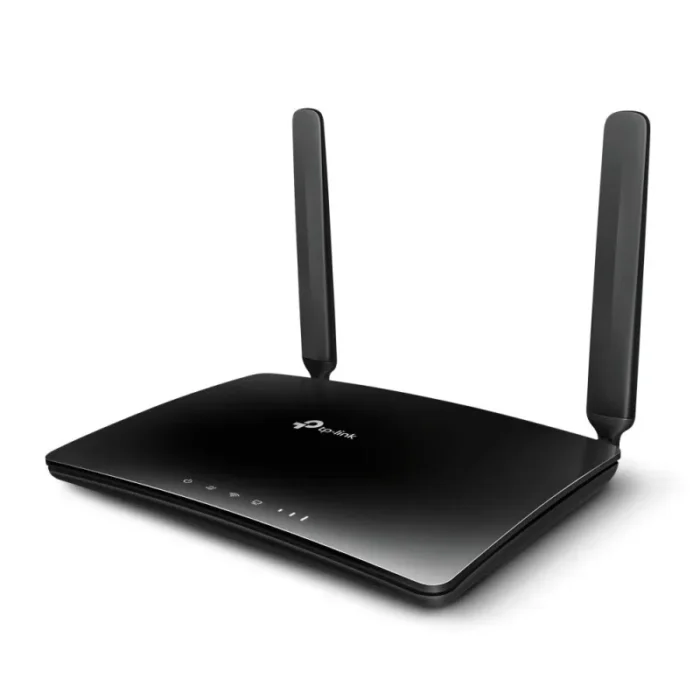

AC1200 Wireless Dual Band 4G LTE Router
Archer MR400
Got SIM Card?
Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network for download speeds of up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Internet Access for
up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 450 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm11ac HT20: -67dBm11ac HT40: -64dBm11ac HT80 : -60dBm11n HT20: -71dBm11n HT40: -70dBm2.4G: 11g 54M: -76dBm11n HT20: -73dBm11n HT40: -67dBm |
| VPN support | PPTP, L2TP, IPSec |
| VPN Passthrough | Yes |
| VPN tunnels quantity | 10 |
| VPN server | PPTP VPN, IPSec VPN , OpenVPN |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| UMTS bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| SIM card type | MicroSIM |
| GSM bands supported | 850,900,1800,1900 MHz |
| 4G standard | LTE |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 2G standards | Edge, GPRS, GSM |
| 3G | Yes |
| 4G | Yes |
| Mobile network generation | 4G |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Memory card slot(s) | No |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 3 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Firewall | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| General | |
|---|---|
| Product family | Archer |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, Status, WLAN |
| Wall mountable | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Antenna | |
|---|---|
| Transmit power | CE: |
| Detachable antenna(s) | Yes |
| Antennas quantity | 2 |
| Antenna design | Internal & external |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | macOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Width | 174 mm |
| Depth | 124.5 mm |
| Height | 33.5 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 670 g |
| Package height | 70 mm |
| Package depth | 223 mm |
| Package width | 307 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
