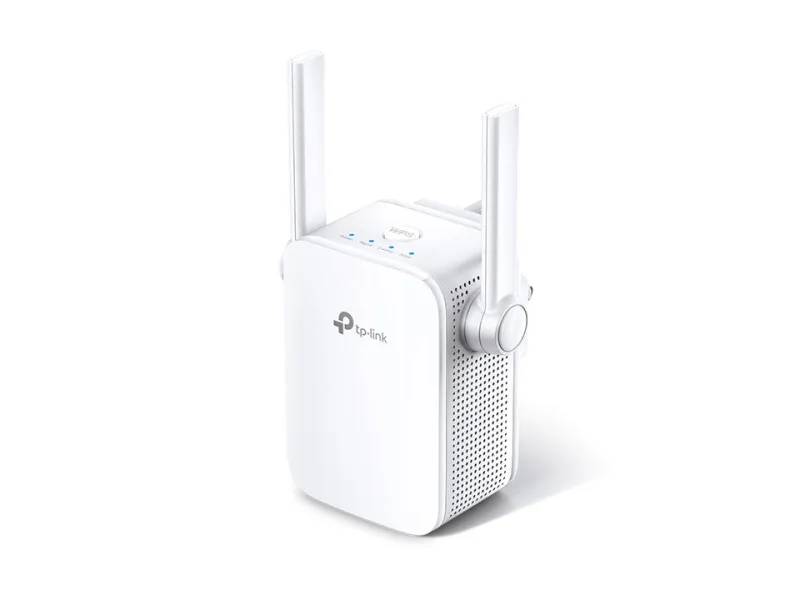

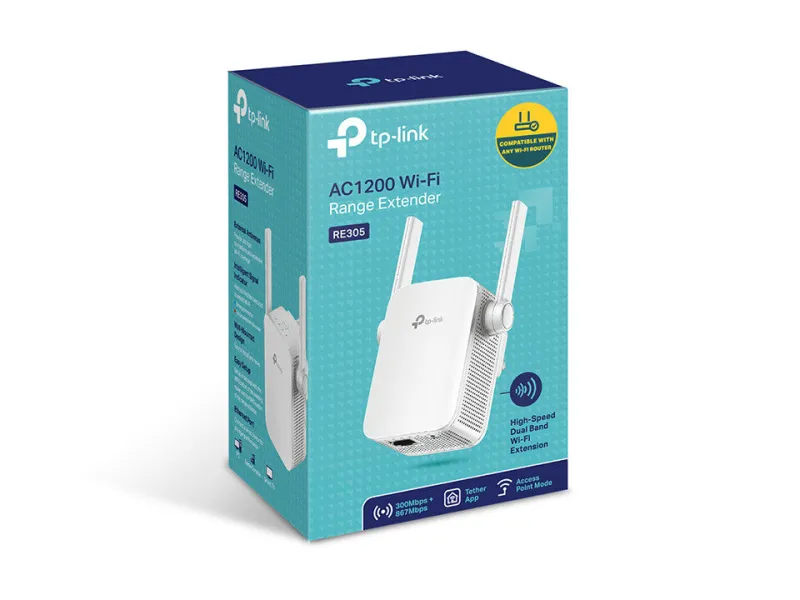

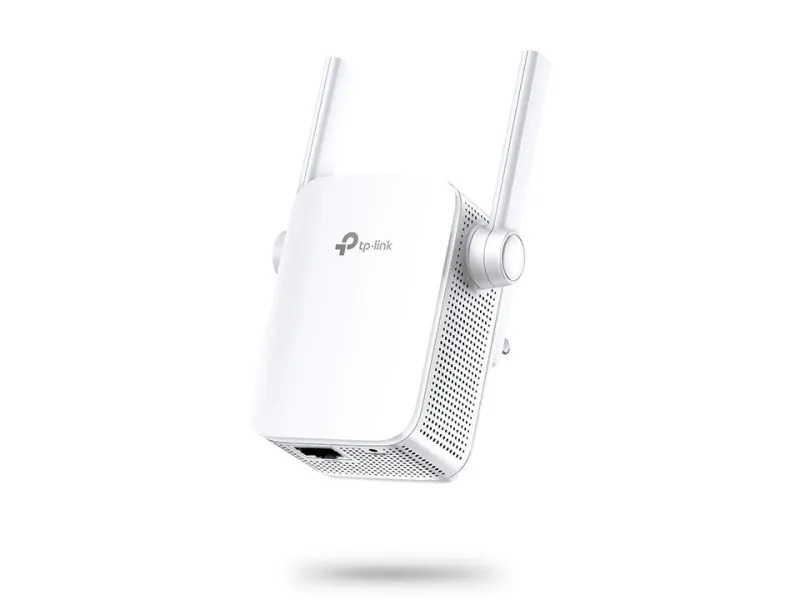

TP-Link AC1200 Wi-Fi Range Extender
- Network transmitter 867 Mbit/s
- 10/100Base-T(X)
- Wi-Fi Dual-band (2.4 GHz / 5 GHz) 867 Mbit/s 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- White
– Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
– Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience
– Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
– Works with any Wi-Fi router or wireless access point
High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
Built-in Access Point Mode
RE305 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easy Management and Remote Control
The RE305 works with all Wi-Fi routers. You can use TP-Link’s free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
| Performance | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| WPS push button | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 867 Mbit/s |
| Type | Network transmitter |
| Antenna | |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
| Network | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Certification | CE, FCC |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (max) | 7.3 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 77 mm |
| Depth | 77.8 mm |
| Width | 80 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 250 g |
| Package height | 95 mm |
| Package depth | 101.5 mm |
| Package width | 156.5 mm |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
