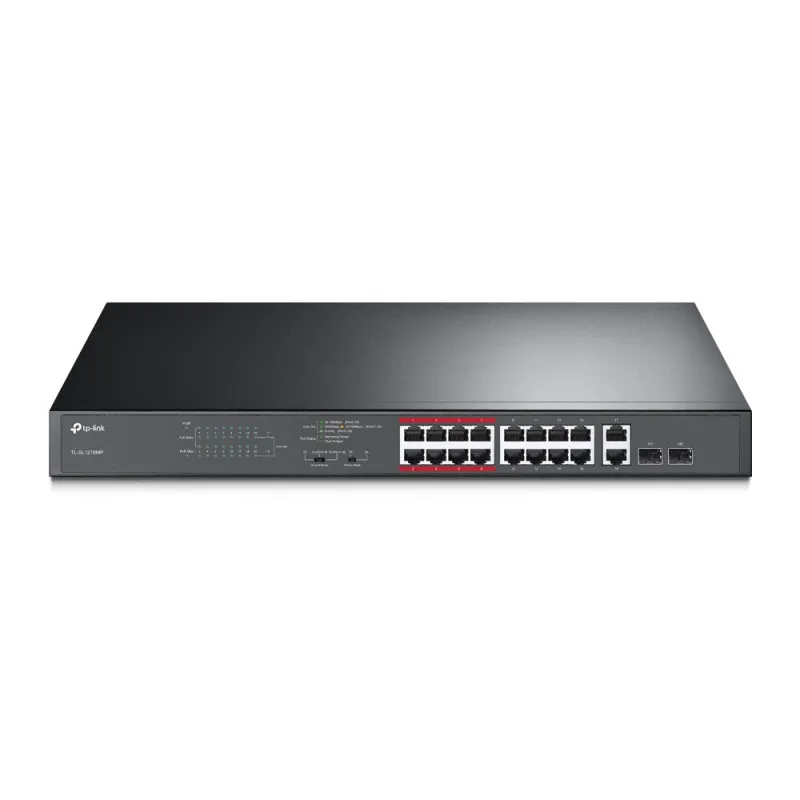

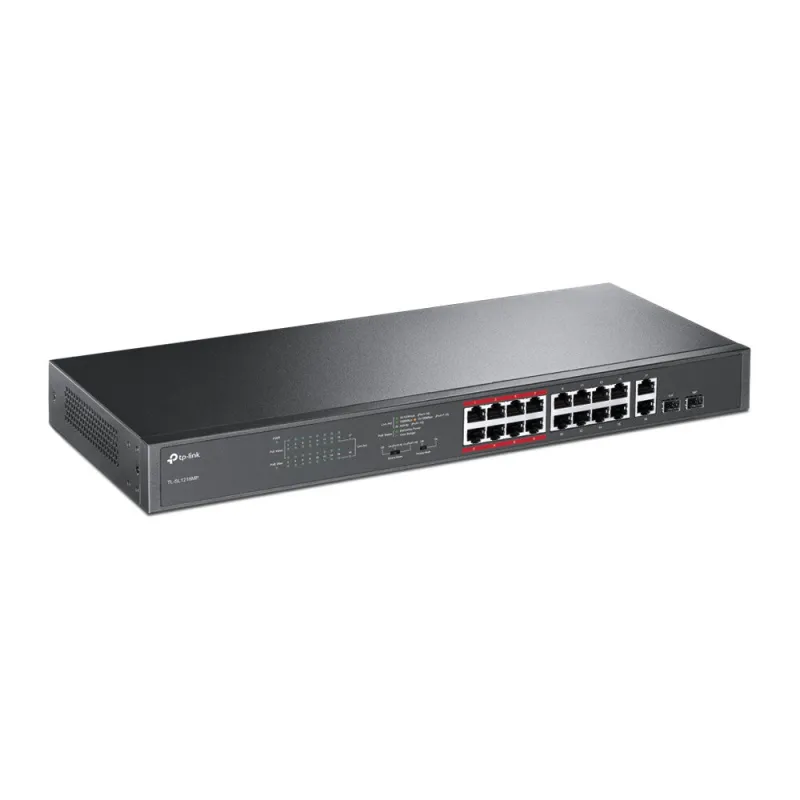

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Combo SFP ports quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Fast Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
20 |
| Network |
| MAC address auto-aging supported |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| MAC address auto-learning supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
5.36 Mpps |
| Switching capacity |
7.2 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
LAN, PoE, Status |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
217.22 W |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
192 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
741.15 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
LAN (RJ-45) |
| Packaging data |
| Package weight |
2.96 kg |
| Package height |
80 mm |
| Package depth |
528 mm |
| Package width |
250 mm |
| Package type |
Box |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
