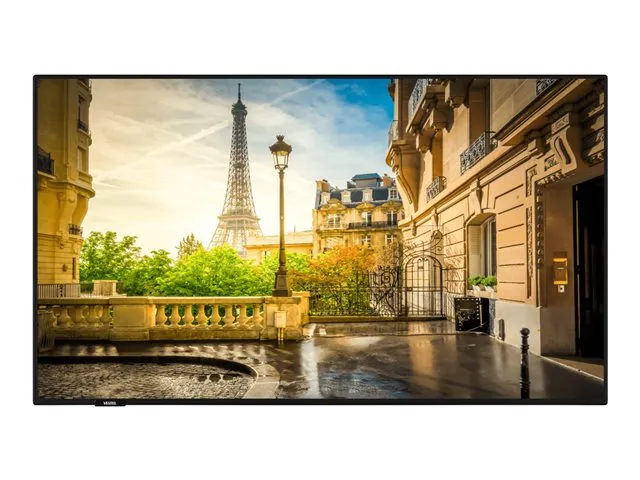

TieDex UK Vestel PR43D-4H PR+ Series – 43″ LED-backlit LCD display – 4K – for digital signage
Vestel PR43D-4H – 43″ Diagonal Class PR+ Series LED-backlit LCD display – digital signage – VAP400 – 4K UHD (2160p) 3840 x 2160 – Slim Direct Backlight
Basic Specifications
- Manufacturer’s Part Number
- PR43D-4H
- EAN
- 3700410366907
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Weight
- 10.4 kg
- Product Description
- Vestel PR43D-4H PR+ Series – 43″ LED-backlit LCD display – 4K – for digital signage
- Model
- Vestel PR43D-4H
- Dimensions (WxDxH)
- 96.3 cm x 6.3 cm x 55.5 cm
- HDMI Ports Qty
- 4 ports
- LCD Backlight Technology
- LED backlight – Slim Direct Backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Display Format
- 4K UHD (2160p)
- USB
- 3 ports
- Voltage
- AC 110-240 V (50/60 Hz)
- Commercial Features
- HTML5 support, SNMP support, detachable logo, Real-Time Clock (RTC), Crestron Connected Certified, Open Content Management Support, control panel lock, USB auto-play, FailOver, Android app launcher, usb security, SoC Content Management, Auto-Launch
- Diagonal Class
- 43″
- Included Accessories
- Remote control, mounting kit
- Connectivity
- Wi-Fi, LAN, Bluetooth
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Platform
- Vestel Android Platform 400
- Speaker System
- 2 speakers
- Technology
- IPS
- TV Tuner
- No tuner
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
- Picture Enhancements
- 72% Colour Gamut NTSC
- Storage Capacity
- 16GB eMMC
- Supported Memory Cards
- microSD
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Energy Class (HDR)
- Class G
- Power Consumption (Max)
- 127 Watt
- Power Consumption SDR (On mode)
- 127 kWh/1000h
- Power Consumption HDR (On mode)
- 127 kWh/1000h
- Diagonal Class
- 43″
- Commercial Use
- Yes – digital signage
- Series
- PR+ Series
- Platform
- Vestel Android Platform 400
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 4 ports
- Modes
- Portrait mode, landscape mode
- Picture Enhancements
- 72% Colour Gamut NTSC
- Design
- Subtle Design
- Width
- 96.3 cm
- Depth
- 6.3 cm
- Height
- 55.5 cm
- Weight
- 10.4 kg
Power
- Power Device
- Power supply
- Input Voltage
- AC 110-240 V (50/60 Hz)
- Power Consumption (Off Mode)
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 105 cm
- Depth (Shipping)
- 17.8 cm
- Height (Shipping)
- 71.8 cm
- Weight (Shipping)
- 13.5 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90%
Miscellaneous
- Included Accessories
- Mounting kit
- Cables Included
- IR extender cable
- Compliant Standards
- EMC, CEC, IEEE 802.1x, Safety certification
Network & Internet Multimedia
- Connectivity
- Wi-Fi, LAN, Bluetooth
- LAN Protocol
- Fast Ethernet
- Wi-Fi Protocol
- 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac
- Bluetooth Version
- Bluetooth 5.1
- Connect & Share
- Wi-Fi Miracast
Stands & Mounts
- Flat Panel Mount Interface
- 200 x 200 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 4 x HDMI input ¦ HDMI output ¦ USB 3.0 ¦ USB 2.0 ¦ USB 2.0 – internal ¦ USB ¦ Headphones ¦ SPDIF input ¦ Sensor ¦ RS-232 ¦ LAN ¦ Service
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 16 Watt
- Speakers
- 2 x speaker – 8 Watt
Media Player
- Supported Memory Cards
- microSD
- USB Port
- Yes
- USB Ports Qty
- 3
- Configuration
- ARM Cortex-A55 Quad-Core – 2 GB DDR4 – 16GB eMMC – ARM Mali-G31 MP2
Display
- LCD Display Technology
- IPS
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight – Slim Direct Backlight
- Coating
- 1% haze
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 70000:1
- Brightness
- 700 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 8 ms
- Backlight Life
- 50,000 hour(s)
- Commercial Features
- HTML5 support, SNMP support, detachable logo, Real-Time Clock (RTC), Crestron Connected Certified, Open Content Management Support, control panel lock, USB auto-play, FailOver, Android app launcher, usb security, SoC Content Management, Auto-Launch
- Operation Hours / Days
- 24 / 7
- Features
- Daisy Chain, Scheduler, Pixel Shifting, Signal Failover, videowall support, 1.07 billion colours (8-bit+FRC)
