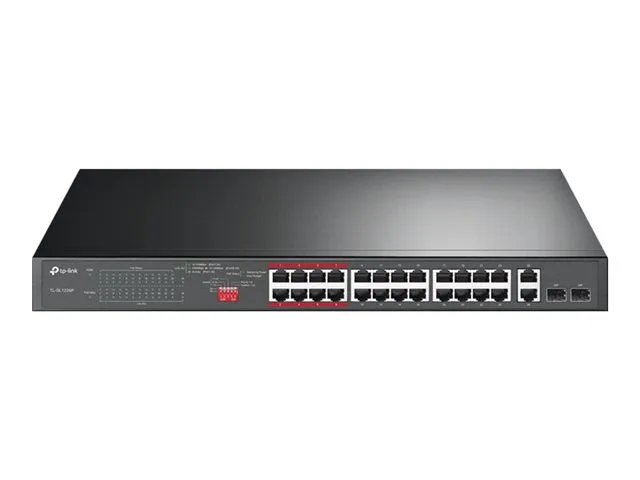

TieDex UK TP-Link TL-SL1226P – switch – 26 ports – unmanaged – rack-mountable
TP-Link TL-SL1226P – Switch – unmanaged – 24 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP – desktop, rack-mountable – PoE+ (250 W)
Basic Specifications
- Manufacturer’s Part Number
- TL-SL1226P
- EAN
- 6935364089450
- Product Description
- TP-Link TL-SL1226P – switch – 26 ports – unmanaged – rack-mountable
- Model
- TP-Link TL-SL1226P
- Dimensions (WxDxH)
- 44 cm x 18 cm x 4.4 cm
- Features
- Flow control, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE+, 2 fans, MAC address learning, MAC address aging, priority mode, extend mode, security slot (Kensington security lock compatible)
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch – 26 ports – unmanaged
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Capacity
- Packet buffer size: 4.1 Mbit
- MAC Address Table Size
- 8K entries
- Subtype
- Fast Ethernet
- Performance
- Switching capacity: 8.8 Gbps ¦ Packet forwarding rate: 6.54 Mpps
- Enclosure Type
- Rack-mountable 1U
- Jumbo Frame Support
- 10KB
- Ports
- 24 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
- PoE Budget
- 250 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 26 ports – unmanaged
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 24 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 250 W
- Performance
- Switching capacity: 8.8 Gbps ¦ Packet forwarding rate: 6.54 Mpps
- Capacity
- Packet buffer size: 4.1 Mbit
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Features
- Flow control, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, PoE+, 2 fans, MAC address learning, MAC address aging, priority mode, extend mode, security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Status Indicators
- Power, 100M device connected, 1000M device connected, PoE, link/activity, PoE max
Dimensions & Weight
- Width
- 44 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- Plug and Play, FCC, RoHS
Expansion / Connectivity
- Interfaces
- 24 x 100Base-TX RJ-45 PoE+ – 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 294 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 – 90% (non-condensing)
