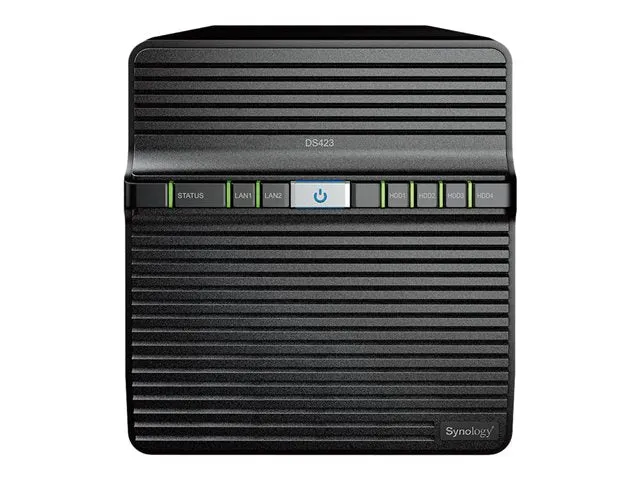

TieDex UK Synology Disk Station DS423 – NAS server
Synology Disk Station DS423 – NAS server – 4 bays – SATA 6Gb/s – RAID JBOD, RAID 0, 1, 5, 6, 10 – RAM 2 GB – Gigabit Ethernet – iSCSI support
Basic Specifications
- Manufacturer’s Part Number
- DS423
- EAN
- 4711174724918
- RAM
- 2 GB
- Manufacturer Warranty
- 2-year warranty
- Product Type
- NAS server
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- Weight
- 2.21 kg ()
- Product Description
- Synology Disk Station DS423 – NAS server
- Model
- Synology Disk Station DS423
- Dimensions (WxDxH)
- 16.8 cm x 23 cm x 18.4 cm
- Processor
- 1 x Realtek Semiconductor RTD1619B 1.7 GHz (Quad-Core)
- Power
- AC 100-240 V (50/60 Hz)
- Storage Controller
- RAID SATA 6Gb/s RAID JBOD, RAID 0, 1, 5, 6, 10
- Device Type
- NAS server
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Storage Operating System
- Synology DiskStation Manager
- Host Connectivity
- Gigabit Ethernet
- IP Cameras Supported
- 30
- Manufacturer Guarantee
- 2 years
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Width
- 16.8 cm
- Depth
- 23 cm
- Height
- 18.4 cm
- Weight
- 2.21 kg ()
- Built-in Devices
- 2 x fans
Miscellaneous
- Cables Included
- 2 x network cable
- Features
- Power recovery, scheduled power on/off, security lock slot (cable lock sold separately)
- Security Slot Type
- Kensington security slot
- Compliant Standards
- FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, RoHS
- Included Accessories
- Accessory pack, power cable
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Remote Management Protocol
- HTTP, HTTPS, SNMP, LDAP
- Network Services Compatibility
- Server Message Block (SMB), Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), FTP, Calendaring Extensions to WebDAV (CalDAV), Web-based Distributed Authoring and Versioning (WebDAV), Microsoft CIFS
- Features
- Hardware encryption, Link Aggregation, failover protection, wake on LAN (WOL), wake on WAN (WOW), SSD trim, Synology Hybrid RAID, RAID migration, NFS Kerberos authentication, Windows ACL, Syslog support, VPN Server, DLNA Media Server
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 4 (free) x hot-swap – 2.5″ / 3.5″
- Interfaces
- 2 x USB 3.2 Gen 1 – Type A ¦ 2 x Ethernet 1000Base-T – RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 32.41 Watt
- Power Consumption Stand by
- 4.97 Watt
- Power Provided
- 90 Watt
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 – 95% RH
- Sound Emission
- 20.6 dBA
Processor / Memory
- Processors Installed
- 1 x Realtek Semiconductor RTD1619B 1.7 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 2 GB DDR4
Software / System Requirements
- Storage Operating System
- Synology DiskStation Manager
Security DVR
- IP Cameras Supported
- 30
- Compression Format
- H.264, H.265
- Image Resolution
- 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160
