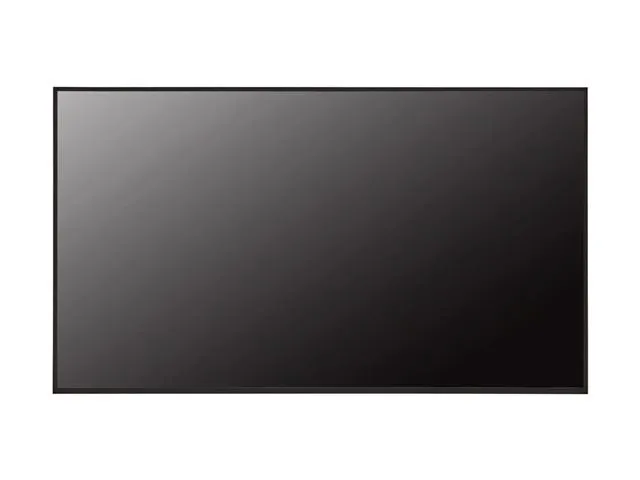

TieDex UK LG 49UH5N-E UH5N-E Series – 49″ with Integrated Pro:Idiom LED-backlit LCD display – 4K – for digital signage
LG 49UH5N-E – 49″ Diagonal Class UH5N-E Series LED-backlit LCD display – digital signage with Integrated Pro:Idiom – webOS – 4K UHD (2160p) 3840 x 2160 – Edge LED – black
Basic Specifications
- Manufacturer’s Part Number
- 49UH5N-E
- EAN
- 0195174062340
- Product Type
- LED-backlit LCD flat panel display with Integrated Pro:Idiom
- Product Description
- LG 49UH5N-E UH5N-E Series – 49″ with Integrated Pro:Idiom LED-backlit LCD display – 4K – for digital signage
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight – Edge LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 116 Watt
- Model
- LG 49UH5N-E
- PC Interface
- DisplayPort
- Dimensions (WxDxH) – without stand
- 109.56 cm x 2.97 cm x 64.08 cm
- Display Format
- 4K UHD (2160p)
- Energy Class
- Class G
- USB
- Yes
- Diagonal Class
- 49″
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Environmental Standards
- ENERGY STAR Qualified
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- IPS
- Colour
- Black
- TV Tuner
- No tuner
- Weight
- 14.4 kg
- Display Resolution
- 4K Ultra HD (2160p)
- Connectivity
- Wi-Fi, LAN, Bluetooth
- Platform
- webOS
- Storage Capacity
- 16 GB
- Commercial Features
- SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, conformal coating, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method
- Settings Cloning Capability
- Yes
- Included Accessories
- Remote control, cable holder, telephone to D-Sub9 connector
- Power Consumption Stand by
- 0.5 Watt
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 80%
Remote Control
- Type
- Remote control
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 300 x 300 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 1
- Configuration
- 16 GB
Connections
- Connector Type
- 3 x HDMI input ¦ DisplayPort input ¦ RS-232C input ¦ LAN input ¦ USB 2.0 ¦ Infrared input ¦ HDMI output ¦ Audio line-out ¦ RS-232C output
Display
- LCD Display Technology
- IPS
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight – Edge LED
- Coating
- 28% haze
- Image Contrast Ratio
- 1100:1
- Dynamic Contrast Ratio
- 1000000:1
- Brightness
- 500 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 8 ms
- Display Menu Language
- Multilingual
- Backlight Life
- 50,000 hour(s)
- Commercial Features
- SNMP support, No Signal image, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver, SuperSign WB compatible, LG ConnectedCare, 30-degrees tilting installation, Video Tag, conformal coating, booting logo image, Auto Set ID, SI Server Setting, play via URL, Control Manager, SuperSign Cloud, Mobile CMS, Group Manager, ISM Method
- Settings Cloning Capability
- Yes
- Operation Hours / Days
- 24 / 7
- Features
- Crestron Connected Compatible, BEACON technology, Daisy Chain, 10-bit support, picture in picture (no tuner), picture by picture (no tuner), Cisco Certified
General
- Product Type
- LED-backlit LCD flat panel display with Integrated Pro:Idiom
- Energy Class
- Class G
- Power Consumption (Max)
- 129 Watt
- Power Consumption Operational
- 116 Watt
- Power Consumption SDR (On mode)
- 87 kWh/1000h
- Diagonal Class
- 49″
- Commercial Use
- Yes – digital signage
- Series
- UH5N-E Series
- Platform
- webOS
- Operating System
- webOS 6.0
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Temperature sensor, auto brightness sensor, acceleration sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- PC Interface
- DisplayPort
- Modes
- Portrait mode, landscape mode, Tiling Mode (15 x 15), PM mode
- Protection
- Dustproof
- Dimensions
- Without stand
- Width
- 109.56 cm
- Depth
- 2.97 cm
- Height
- 64.08 cm
- Weight
- 14.4 kg
- Enclosure Colour
- Black
Miscellaneous
- Included Accessories
- Cable holder, telephone to D-Sub9 connector
- Compliant Standards
- Plug and Play, FCC Class B certified, CB, EMC, CEC, ERP, NRTL, IP5X, ISTA 6, ISO/IEC 15408, Carbon Trust
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Heat Generation Details
- Cabinet – typical – 394 BTU/h ¦ Cabinet – max – 441 BTU/h
- Features
- Smart energy saving, WOL (Wake on LAN)
Dimensions & Weight (Shipping)
- Width (Shipping)
- 121.5 cm
- Depth (Shipping)
- 15.2 cm
- Height (Shipping)
- 77.5 cm
- Weight (Shipping)
- 17.8 kg
Network & Internet Multimedia
- Connectivity
- Wi-Fi, LAN, Bluetooth
- LAN Protocol
- Ethernet
Sustainability Information
- ENERGY STAR Certified
- Yes
