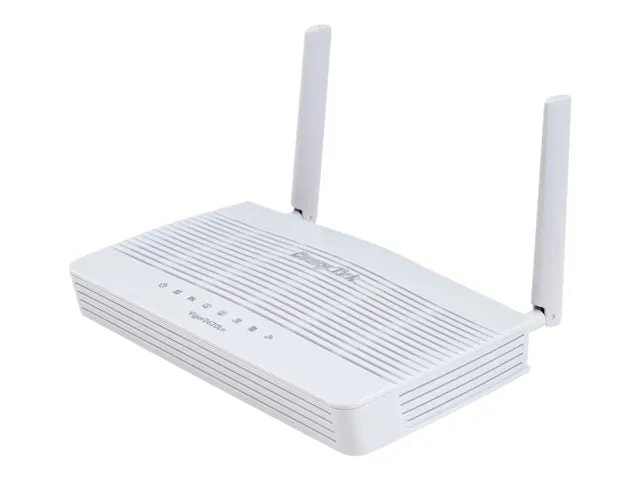

TieDex UK Draytek Vigor 2620Ln – wireless router – DSL/WWAN – Wi-Fi – desktop
Draytek Vigor 2620Ln – Wireless router – DSL/WWAN 2-port switch – 1GbE, PPP – WAN ports: 2 – Wi-Fi – 2.4 GHz
Basic Specifications
- Manufacturer’s Part Number
- V2620LN-K
- EAN
- 4712909127851
- Manufacturer Warranty
- 2-year warranty
- Weight
- 440 g
- Product Description
- Draytek Vigor 2620Ln – wireless router – DSL/WWAN – Wi-Fi – desktop
- Model
- Draytek Vigor 2620Ln
- Dimensions (WxDxH)
- 20.7 cm x 13.1 cm x 3.9 cm
- Localisation
- United Kingdom, Ireland
- Features
- NAT support, VPN support, firewall protection, SMS remote control, VLAN support, VLAN Tagging, wireless bridge mode, IPv6 support, IPv4 support, DoS attack prevention, content filtering, bandwidth control, QoS, WPS, WPS button, reset button, black list, white list, MAC address filtering, WDS support, WMM support, DMZ support, ALGs, SPI, DDos attack prevention, anti-spoofing protection, Syslog support, E-mail alert, IP-MAC binding, CSM, URL filtering, Web Filtering, ToS, DSCP support, VPN passthrough, IPSec NAT-T, DPD, DHCP relay, port mirroring, DNS caching, DNS proxy, NTP client, MIB II, IGMP proxy, wall mountable, Multiple SSID support, DHCP server, TFTP support, firmware upgradable, IM/P2P filter, WAN failover
- Power
- AC 230V
- Device Type
- Wireless router – DSL modem / wireless cellular modem – 2-port switch (integrated)
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, ANSI T1.413i2
- Capacity
- Concurrent VPN tunnels: 2 ¦ NAT sessions: 30000 ¦ SSIDs total: 4 ¦ Port-pedirection entries: 40 ¦ Open port entries: 40
- Data Transfer Rate
- 300 Mbps
- Performance
- VPN throughput (IPSec): 50 Mbps ¦ VPN throughput (SSL): 25 Mbps ¦ Firewall throughput: 300 Mbps
- Frequency Band
- 2.4 GHz
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, PPP, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Enclosure Type
- Desktop
- Network / Transport Protocol
- IPSec, DDNS, PPTP, L2TP, DHCP, DNS, PPPoE, PPPoA
- WAN Ports Qty
- 2
- Remote Management Protocol
- Telnet, HTTP, HTTPS, CLI, TFTP, SNMP 2, SNMP 3, TR-069, TR-104, SSH
- Cellular Protocol
- LTE
- Digital Signaling Protocol
- VDSL2, ADSL2+, ADSL, ADSL2, VDSL
- Mobile Communication Protocol
- LTE
General
- Device Type
- Wireless router – 2-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wired, wireless
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, PPP, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Frequency Band
- 2.4 GHz
- Data Transfer Rate
- 300 Mbps
- Performance
- VPN throughput (IPSec): 50 Mbps ¦ VPN throughput (SSL): 25 Mbps ¦ Firewall throughput: 300 Mbps
- Capacity
- Concurrent VPN tunnels: 2 ¦ NAT sessions: 30000 ¦ SSIDs total: 4 ¦ Port-pedirection entries: 40 ¦ Open port entries: 40
- Network / Transport Protocol
- IPSec, DDNS, PPTP, L2TP, DHCP, DNS, PPPoE, PPPoA
- Remote Management Protocol
- Telnet, HTTP, HTTPS, CLI, TFTP, SNMP 2, SNMP 3, TR-069, TR-104, SSH
- Encryption Algorithm
- SSL, 256-bit AES, WPA, WPA2, TLS, IKEv2, IKE, DES, Triple DES, 128-bit AES, 192-bit AES, SHA-1, 256-bit SHA, MD5
- Authentication Method
- X.509 certificates, Radio Service Set ID (SSID)
- Features
- NAT support, VPN support, firewall protection, SMS remote control, VLAN support, VLAN Tagging, wireless bridge mode, IPv6 support, IPv4 support, DoS attack prevention, content filtering, bandwidth control, QoS, WPS, WPS button, reset button, black list, white list, MAC address filtering, WDS support, WMM support, DMZ support, ALGs, SPI, DDos attack prevention, anti-spoofing protection, Syslog support, E-mail alert, IP-MAC binding, CSM, URL filtering, Web Filtering, ToS, DSCP support, VPN passthrough, IPSec NAT-T, DPD, DHCP relay, port mirroring, DNS caching, DNS proxy, NTP client, MIB II, IGMP proxy, wall mountable, Multiple SSID support, DHCP server, TFTP support, firmware upgradable, IM/P2P filter, WAN failover
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, ANSI T1.413i2
- Built-in Devices
- Led panel
- Status Indicators
- Power, Internet, DSL, LTE, LAN, SIM status, Wi-Fi
Communications
- Type
- DSL modem / wireless cellular modem
- Digital Signaling Protocol
- VDSL2, ADSL2+, ADSL, ADSL2, VDSL
- Mobile Communication Protocol
- LTE
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.3, ITU G.992.5, ITU G.993.2, ITU G.993.1, ITU G.997.1
- Max Transfer Rate
- 150 Mbps
Dimensions & Weight
- Width
- 20.7 cm
- Depth
- 13.1 cm
- Height
- 3.9 cm
- Weight
- 440 g
Miscellaneous
- Localisation
- United Kingdom, Ireland
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Expansion / Connectivity
- Interfaces
- LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ – RJ-11 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
- Expansion Slots
- 2 (total) / 2 (free) x SIM
Power
- Power Device
- External power adapter
- Voltage Required
- AC 230V
- Power Consumption Operational
- 12 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Software / System Requirements
- OS Provided
- No operating system
Aerial
- Aerial
- External detachable and internal
- Antenna Qty
- 4
Line Properties
- Framing Format
- ANSI T1.413i2
