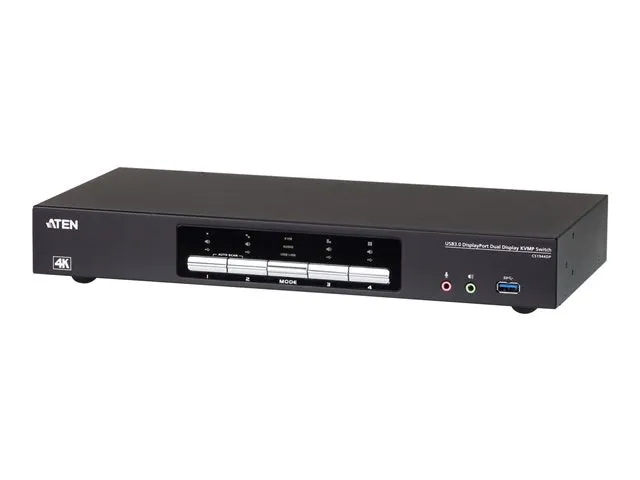

TieDex UK ATEN CS1944DP – KVM / audio / USB switch – 4 ports
ATEN CS1944DP – KVM / audio / USB switch – 4 x KVM / audio – 1 local user – desktop
Basic Specifications
- Manufacturer’s Part Number
- CS1944DP
- EAN
- 0672792007897
- Manufacturer Warranty
- 2-year warranty
- Weight
- 1.51 kg
- Product Description
- ATEN CS1944DP – KVM / audio / USB switch – 4 ports
- Model
- ATEN CS1944DP
- Dimensions (WxDxH)
- 33.5 cm x 15.66 cm x 4.4 cm
- Features
- Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, MST support, daisy-chaining support, built-in 2-port USB 3.1 hub, DP++ technology
- Device Type
- KVM / audio / USB switch – 4 ports
- Compliant Standards
- USB 3.1 Gen 1
- Subtype
- DisplayPort
- Ports
- 4 x KVM / audio
- KVM Users Qty
- 1 local user
General
- Device Type
- KVM / audio / USB switch – 4 ports
- Enclosure Type
- Desktop
- Subtype
- DisplayPort
- Ports
- 4 x KVM / audio
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 4096 x 2160 @ 60 Hz
- Features
- Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, MST support, daisy-chaining support, built-in 2-port USB 3.1 hub, DP++ technology
- Compliant Standards
- USB 3.1 Gen 1
- Built-in Devices
- USB 3.1 Gen 1 hub
Dimensions & Weight
- Width
- 33.5 cm
- Depth
- 15.66 cm
- Height
- 4.4 cm
- Weight
- 1.51 kg
Miscellaneous
- Cables Included
- 8 x DisplayPort cable ¦ 4 x SuperSpeed USB cable ¦ 8 x audio cable
- Compliant Standards
- DisplayPort 1.2
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Expansion / Connectivity
- Interfaces
- 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x DisplayPort output ¦ 2 x microphone input mini-jack ¦ 4 x headphones output mini-jack ¦ 1 x network stack device RJ-45 ¦ 4 x USB 3.1 Gen 1 Type B ¦ 2 x USB 3.1 Gen 1 Type A ¦ 4 x microphone output mini-jack ¦ 4 x headphones input mini-jack ¦ 8 x DisplayPort input
Power
- Power Device
- External power adapter
- Power Provided
- 12 V
- Power Consumption Operational
- 5.76 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 – 80% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
