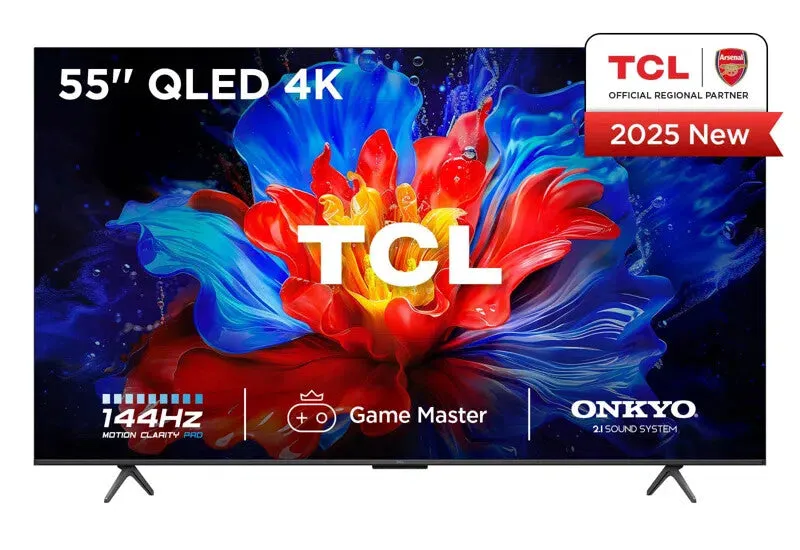

TCL 55P8K 55″ 4K QLED HDR Smart TV
- QLED
- 4K HDR PRO
- HVA Screen
- AiPQ Processor
- HDR Multi-Format
- GAME MASTER
- 288Hz Game Accelerator
- ONKYO 2.1 SOUND SYSTEM
- Miracast & Google Cast
- GOOGLE TV
| Display | |
|---|---|
| Colour gamut standard | DCI-P3 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Contrast ratio (typical) | 5000:1 |
| Display refresh rates supported | 120 Hz, 144 Hz, 240 Hz |
| Native refresh rate | 120 Hz |
| Display brightness | 350 cd/m² |
| Response time | 6.5 ms |
| Screen format adjustments | 4:3, 14:9, 16:9, Zoom |
| Native aspect ratio | 16:9 |
| Screen shape | Flat |
| LED backlighting type | Direct-LED |
| LED backlight | Yes |
| Display technology | QLED |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Display diagonal | 139.7 cm (55″) |
| TV tuner | |
|---|---|
| Digital signal format system | DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2 |
| Analog signal format system | NTSC, PAL BG |
| Tuner type | Analog & digital |
| Smart TV | |
|---|---|
| App distribution platform | Google Play |
| Smart modes | Auto AI, Movie, Sports, Standard |
| Hybrid Broadcast Broadband TV (HbbTV) | Yes |
| Timeshift | No |
| Operating system installed | Google TV |
| Internet TV | Yes |
| Smart TV | Yes |
| Audio | |
|---|---|
| Enhanced Audio Return Channel (eARC) | Yes |
| Auto volume leveller | Yes |
| Sound modes | Dynamic, Game, Movie, Music, Sports, Standard, Voice |
| Audio decoders | DTS Virtual:X, DTS:X, Dolby Atmos |
| Built-in subwoofer | Yes |
| Subwoofer RMS power | 15 W |
| RMS rated power | 20 W |
| Audio output channels | 2.1 channels |
| Network | |
|---|---|
| Miracast | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Design | |
|---|---|
| Stand type | Legs stand |
| Frameless design | Yes |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), High impact polystyrene (HIPS), Polycarbonate (PC), Steel |
| Panel mounting interface | 300 x 300 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Parental control | Yes |
| Game features | Game Master, Variable Refresh Rate (VRR) |
| AMD FreeSync | Yes |
| Processor cores | 4 |
| Noise reduction | Yes |
| Picture processing technology | TCL AiPQ Pro Processor |
| Audio formats supported | MP3, WMA |
| Image formats supported | BMP, HEIF, JPEG, PNG, WEBP |
| Video compression formats | AV1, H.264, H.265, MPEG1, MPEG2, MPEG4, VP8, VP9, WMV |
| Video formats supported | AVI, MKV |
| Subtitles function | Yes |
| Teletext function | Yes |
| Game mode | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported | Yes |
| Ports & interfaces | |
|---|---|
| Common interface (CI) | Yes |
| RF connector type | F, IEC |
| RF ports quantity | 2 |
| Headphone outputs | 1 |
| Digital audio optical out | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PC in (D-Sub) | No |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| Audio Return Channel (ARC) | Yes |
| HDMI version | 1.4/2.0/2.1 |
| HDMI ports quantity | 4 |
| Management features | |
|---|---|
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
| Firmware upgradeable | Yes |
| On Screen Display (OSD) languages | Multi |
| On Screen Display (OSD) | Yes |
| Electronic Programme Guide (EPG) | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Energy consumption (HDR) per 1000 hours | 125 kWh |
| Energy consumption (SDR) per 1000 hours | 70 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 150 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 – 35 °C |
| Brand-specific features | |
|---|---|
| TCL technologies (AV/TV) | 4K HDR Pro, 288Hz Game Accelerator, Apple AirPlay, Chromecast Built-In, Google Cast, HVA Screen, Motion Clarity Pro, Multi HDR Format, Onkyo Sound |
| Technical details | |
|---|---|
| Compliance certificates | CE, UKCA |

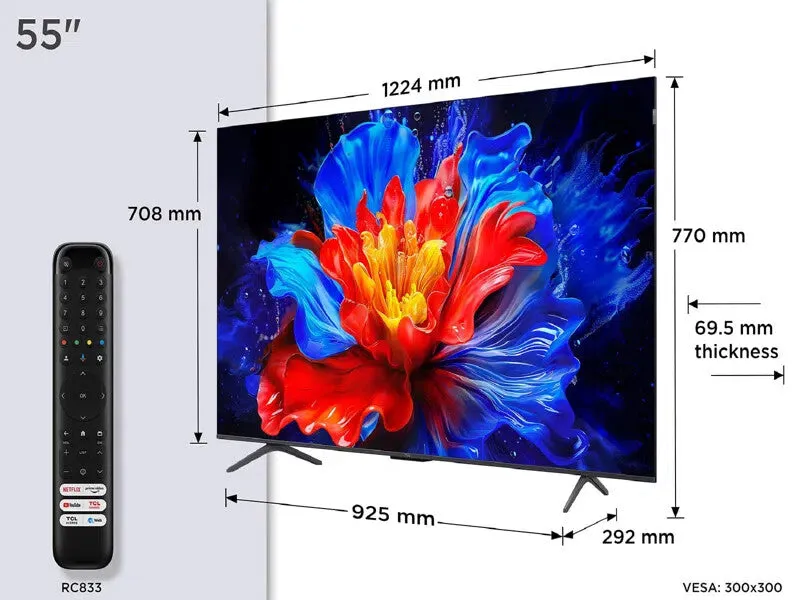

| Weight & dimensions | |
|---|---|
| Stand depth | 29.2 cm |
| Stand width | 92.5 cm |
| Weight (without stand) | 11 kg |
| Height (without stand) | 708 mm |
| Depth (without stand) | 69.5 mm |
| Width (without stand) | 1224 mm |
| Weight (with stand) | 11.3 kg |
| Height (with stand) | 770 mm |
| Depth (with stand) | 292 mm |
| Width (with stand) | 1224 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 14.8 kg |
| Package height | 830 mm |
| Package depth | 1360 mm |
| Package width | 128 mm |
| Packaging content | |
|---|---|
| Remote control type | RC833A |
| Remote control included | Yes |
| Cables included | AC |
| Desktop stand | Yes |
