StarTech.com USB C Multiport Adapter – USB C to 4K 60Hz HDMI 2.0 – 2-Port 10Gbps USB Hub – 100W Power Delivery Pass-through – GbE – SD/MicroSD – USB Type-C Mini Dock – 10″ Cable
- 6-IN-1 MULTIPORT ADAPTER: USB-C multiport adapter supports HDMI 2.0b, 4K 60Hz HDR10 (DP 1.4 Alt Mode req); 2x USB-A 3.2 Gen 2 Hub 10Gbps including 1x BC 1.2 charge port (7.5W); 100W PD 3.0 pass through, SD Card Reader, Gigabit Ethernet (PXE Boot & WoL)
- EXTRA LONG CABLE: USB C mini dock with 10″ (25 cm) attached cable extends reach to reduce port/connector strain on 2-in-1 devices: Surface Pro 7/iPad Pro/HP Elite x2/laptops on riser stands; Hideaway cable management feature hides cable during travel
- 4K 60HZ WITH DP 1.4 ALT-MODE: Supports 4K 60Hz digital video resolution on DP 1.4 Alt-Mode host devices (Intel 11th Gen minimum); Supports 4K 30Hz on DP 1.2 Alt-Mode host devices; PS186 chip for compatibility with iPad Pro and iPad Mini with USB-C
- RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 85W for laptop charging
- WIDE COMPATIBILITY: Docking station is fully compatible w/USB-C laptops, Ultrabooks & Chromebooks and Thunderbolt 3/4/USB4 laptops from HP, Dell, Lenovo, MacBooks (Intel processor & M1 chip) and Surface; works w/Windows, macOS, iPadOS, Android & ChromeOS
- STARTECH.COM CONNECTIVITY TOOLS: Included with the portable all-in-one USB Type-C adapter, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
USB-C Multiport Adapter | HDMI Video | 100W PD Pass-Through | 2-Port USB Hub (10Gbps) | SD/MicroSD Card Reader

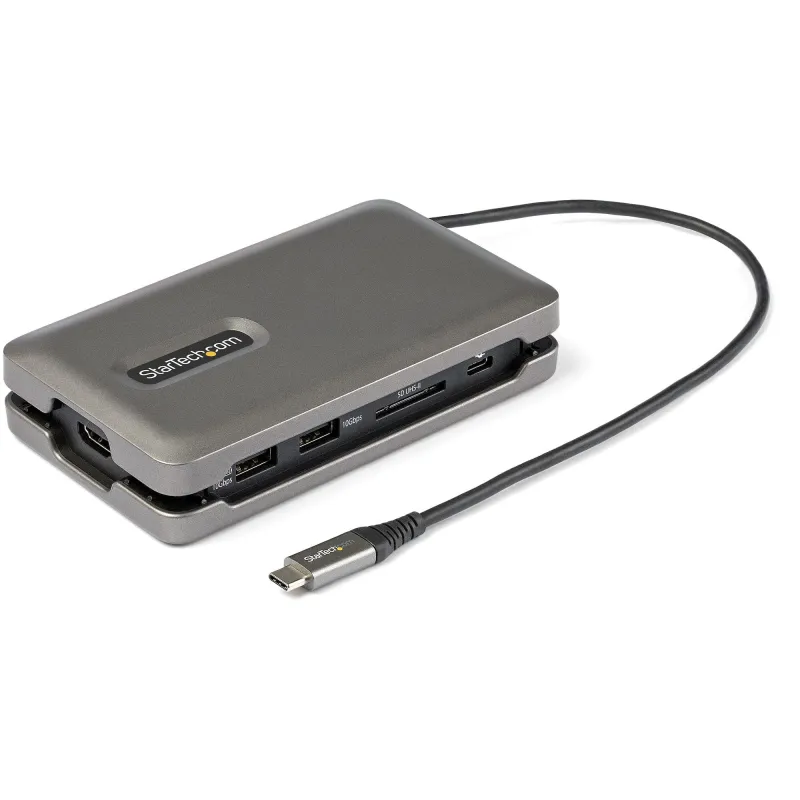

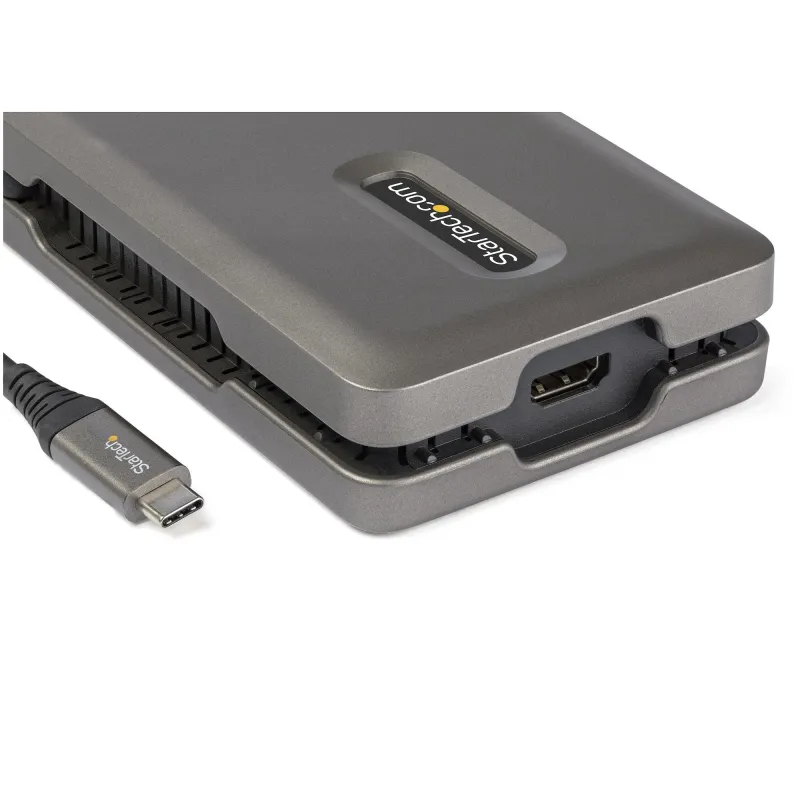

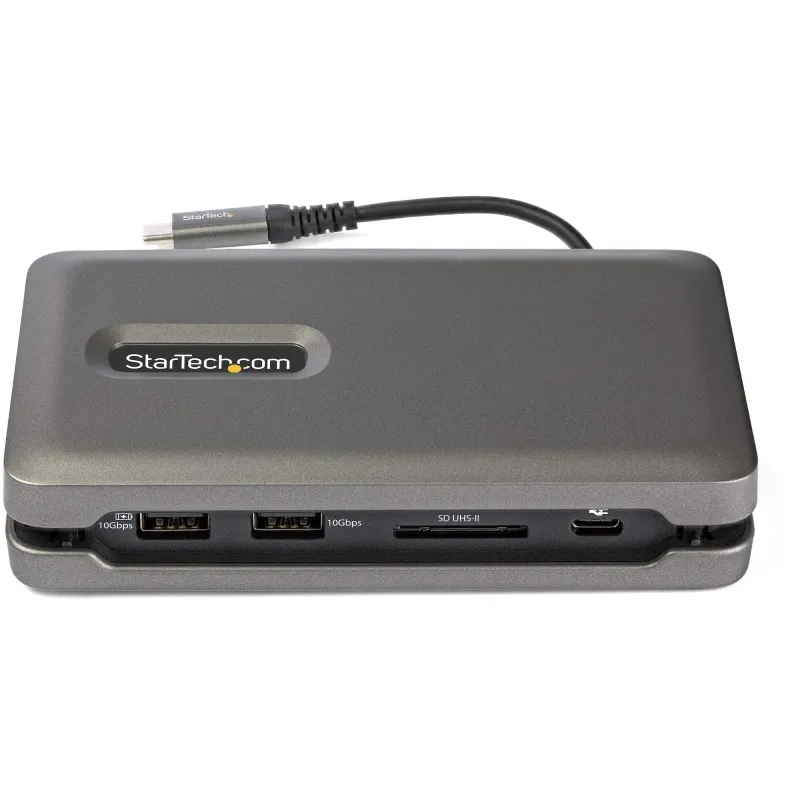

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop’s USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2×1 (10Gbps).
Enhance Productivity
The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.
Easy Portability
For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Microphone in | No |
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| High Dynamic Range 10 (HDR10) | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Number of displays supported | 1 |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | MMC, SD |
| Card reader integrated | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| Power consumption (typical) | 15 W |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android 10.0, Android 11.0, Android 9.0, iPadOS |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 150 g |
| Height | 29 mm |
| Depth | 82 mm |
| Width | 142 mm |
| Packaging data | |
|---|---|
| Package weight | 270 g |
| Package height | 40 mm |
| Package depth | 144 mm |
| Package width | 210 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 318 mm |
| Master (outer) case height | 227 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Chipset | Genesys Logic – GL9510, Genesys Logic – GL3590, Genesys Logic – GL3523, Realek – RTL8153VC, Parade – PS186 |
| Cable length | 0.25 m |
