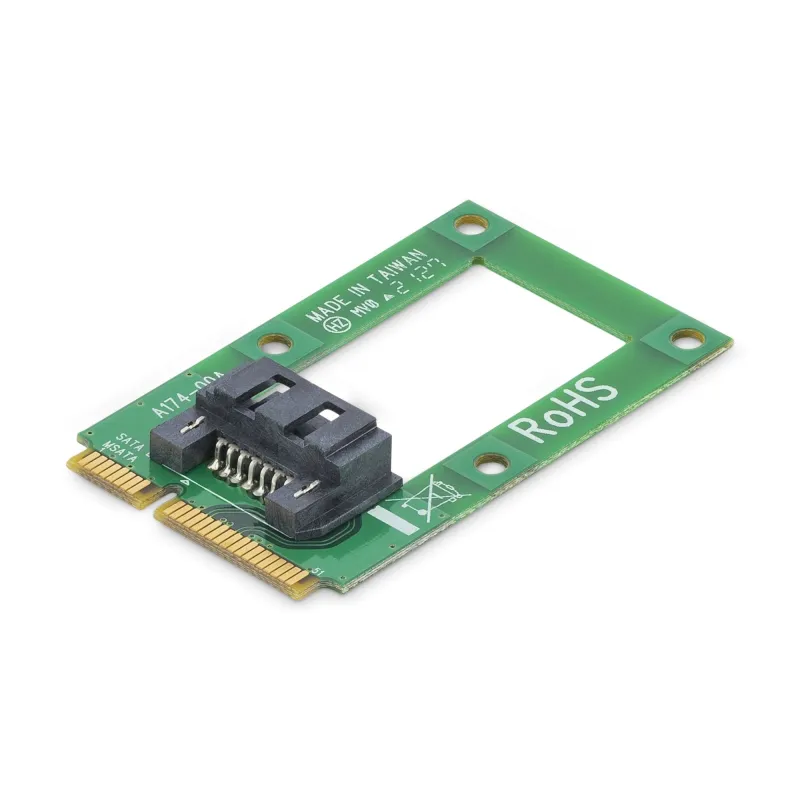

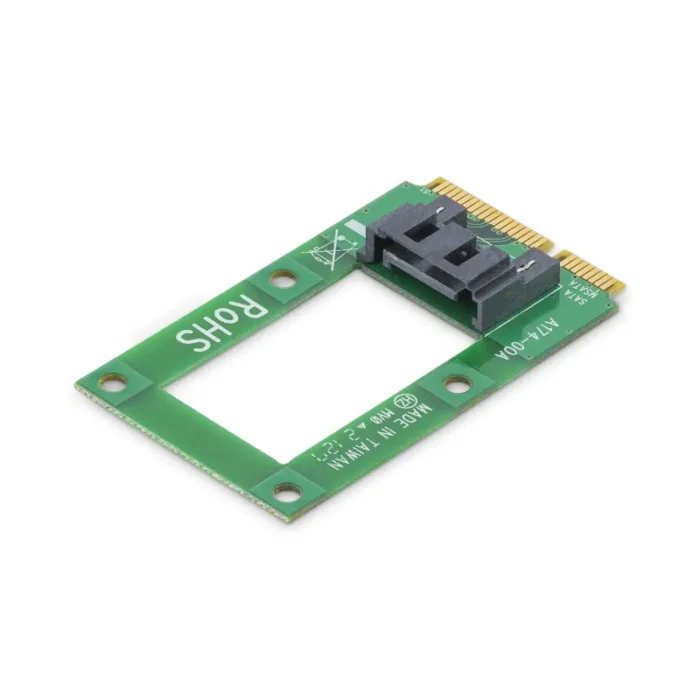

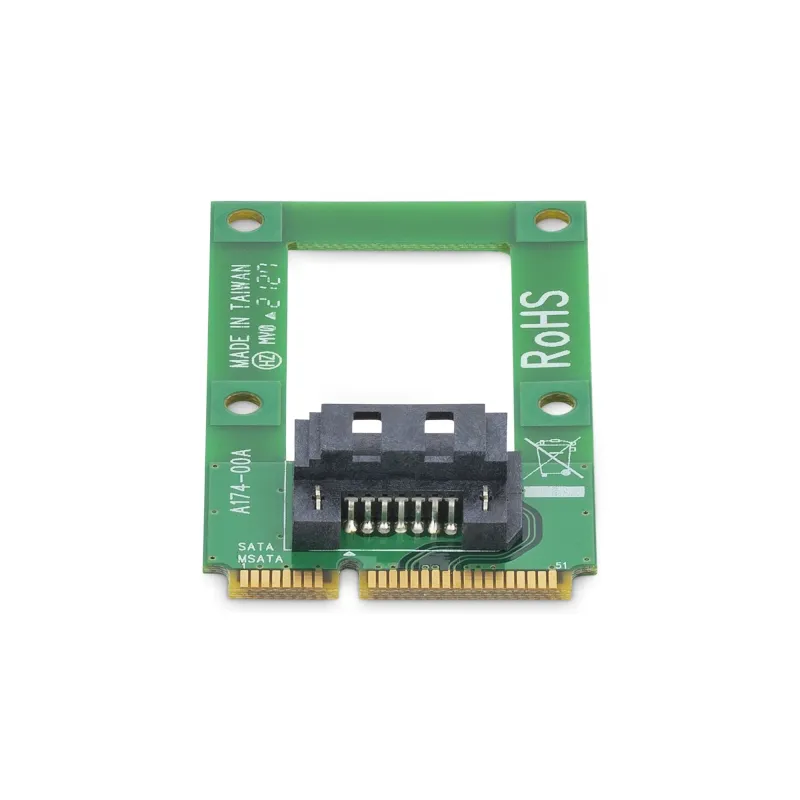

StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives
- Compliant with SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Turn an mSATA host connection into a standard SATA port
The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
| SATA revision |
3.0 |
| Output interface |
SATA |
| Host interface |
mSATA |
| Design |
| Product colour |
Green |
| Internal |
Yes |
| Features |
| Data transfer rate (max) |
6 Gbit/s |
| Operational conditions |
| Storage relative humidity (H-H) |
15 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating temperature (T-T) |
5 – 50 °C |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
| Weight |
10 g |
| Height |
8 mm |
| Depth |
51 mm |
| Width |
30 mm |
| Packaging data |
| Package weight |
15 g |
| Package height |
10 mm |
| Package depth |
225 mm |
| Package width |
125 mm |
| User guide |
Yes |
| Screws included |
Yes |
| Logistics data |
| Master (outer) case height |
215 mm |
| Master (outer) case length |
690 mm |
| Master (outer) case width |
295 mm |
| Products per master (outer) case |
100 pc(s) |
| Harmonized System (HS) code |
84733020 |
