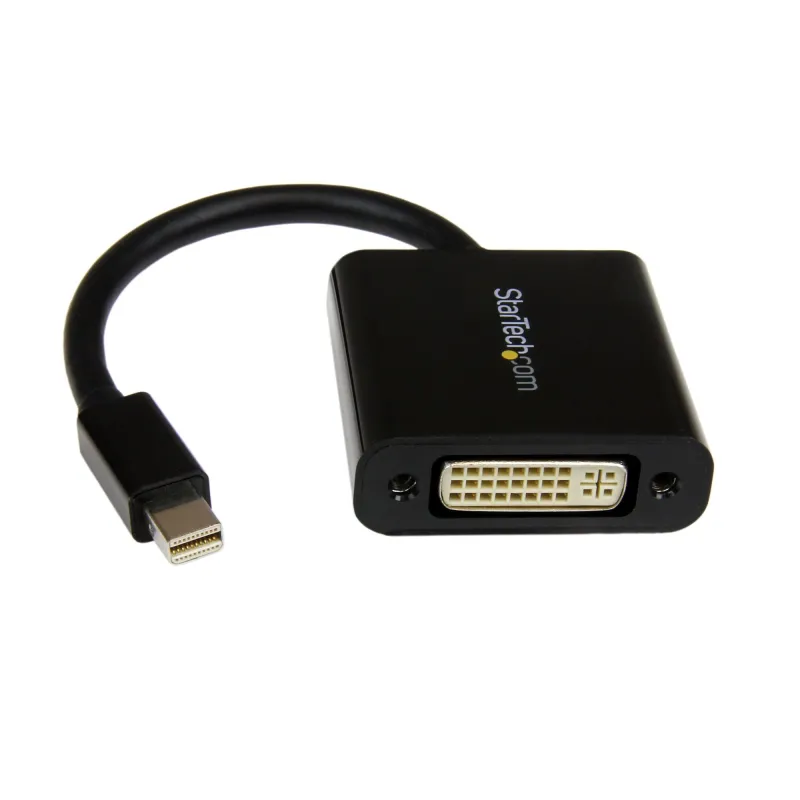

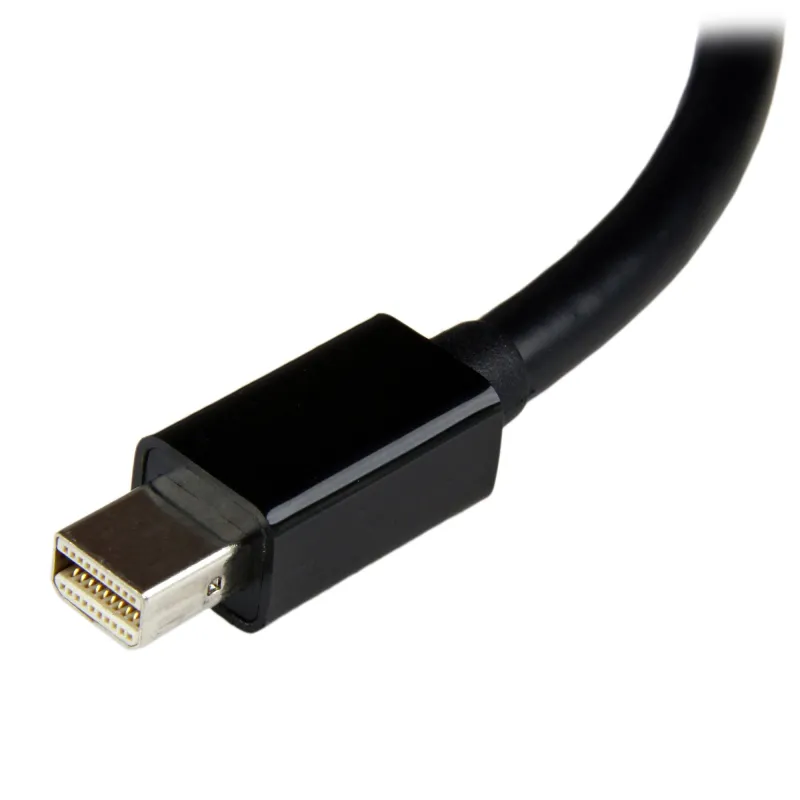

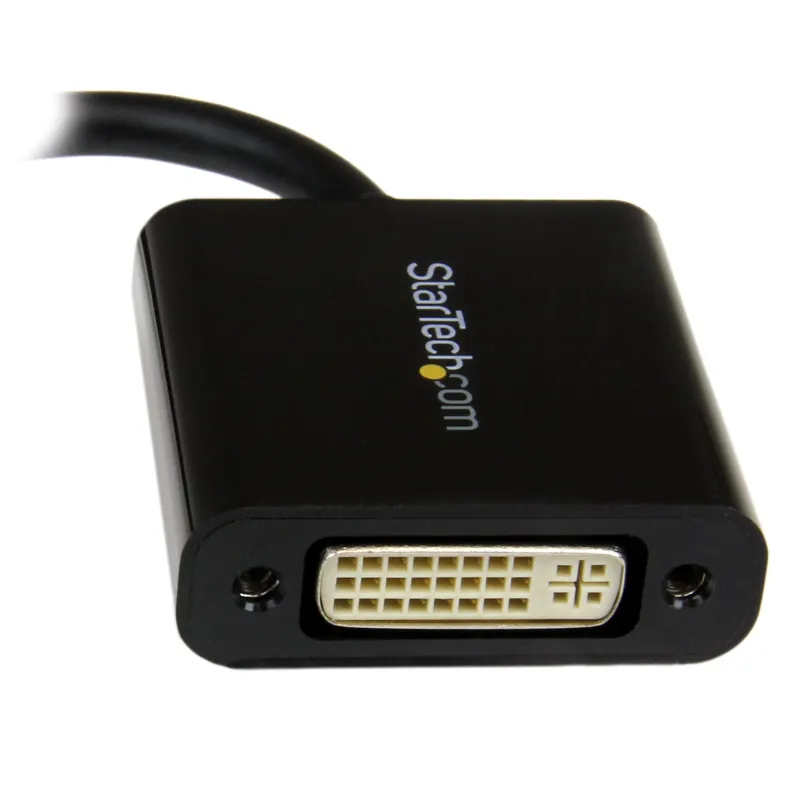

StarTech.com Mini DisplayPort to DVI Adapter – Mini DP to DVI-D Converter – 1080p Video – mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor – Compact mDP 1.2 to DVI Single-Link Adapter Dongle
- MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector supporting 1920×1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design makes it ideal for travel / 5″” (13cm) attached cable
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Connect a DVI Display to a Mini DisplayPort Video Source
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920×1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Converter type | Passive video converter |
| Product colour | Black |
| Supported video modes | 1080p |
| Maximum resolution | 1920 x 1200 pixels |
| DisplayPort version | 1.2 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | DVI-I |
| Connector 1 | Mini DisplayPort |
| Cable length | 0.13 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 40 – 85% |
| Storage temperature (T-T) | 0 – 70 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Depth | 185 mm |
| Width | 40 mm |
| Weight | 26.5 g |
| Packaging data | |
|---|---|
| Package weight | 51 g |
| Package height | 20 mm |
| Package depth | 240 mm |
| Package width | 160 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case height | 355 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case width | 270 mm |
| Harmonized System (HS) code | 84733080 |
