StarTech.com Industrial Fiber to Ethernet Media Converter – 100Mbps SFP to RJ45/Cat6 – Singlemode/Multimode Optical Fiber to Copper Network – 12-56V DC – IP-30/ -40 to +75C
- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter – extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated
- Rugged IP-30 aluminum housing
- Hardened operating temp -40C to 75C
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
“10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

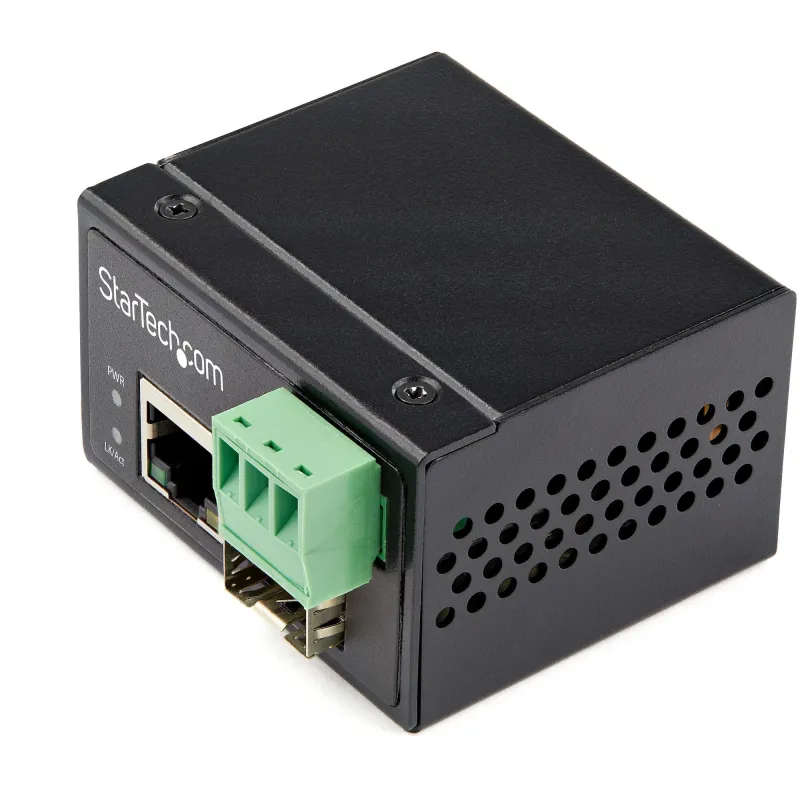

An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it’s rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter – extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
– ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
– Vibration, shock & freefall rated”
| Network | |
|---|---|
| Duplex system | Full |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Converter output interface | 100Base-FX |
| Converter input interface | 10Base-T, 100Base-TX |
| Maximum data transfer rate | 100 Mbit/s |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 500000 h |
| Fiber mode structure | Multi-mode, Single-mode |
| Features | |
|---|---|
| Housing material | Aluminium |
| LED indicators | Yes |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power plug type | Type N |
| Power over Ethernet (PoE) | No |
| Power consumption (typical) | 1.92 W |
| Input voltage | 12 – 56 V |
| Weight & dimensions | |
|---|---|
| Weight | 81.4 g |
| Height | 50 mm |
| Depth | 59 mm |
| Width | 36 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -40 – 75 °C |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 242.4 g |
| Package height | 64 mm |
| Package depth | 105 mm |
| Package width | 155 mm |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 225 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case width | 355 mm |
| Harmonized System (HS) code | 85176990 |
