StarTech.com 2m (6ft) Mini DisplayPort to DisplayPort 1.2 Cable – 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable – Mini DP to DP Cable for Monitor – mDP to DP Converter Cord
- MINI-DP to DISPLAYPORT 1.2 CABLE: This 2m (6.6ft) DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations with AMD FirePro™ W9100/8100, Nvidia NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 6/4
- SPECS: 2 m (6.6 ft); Black; DisplayPort v1.2; Mini-DP Male to Standard DP Latching Male; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR 2, MST, GTC; Backed for Life
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

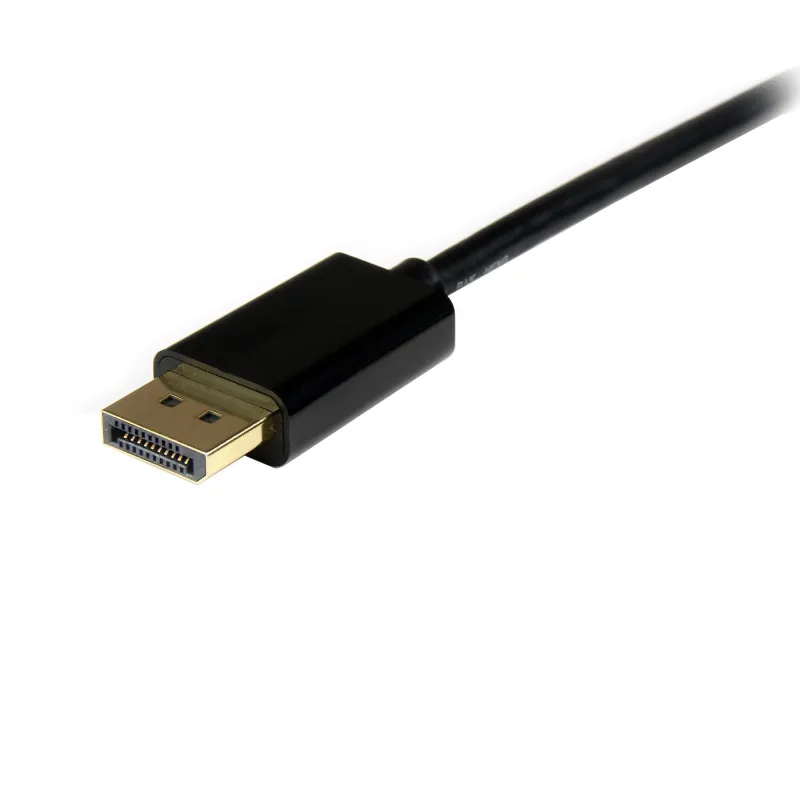

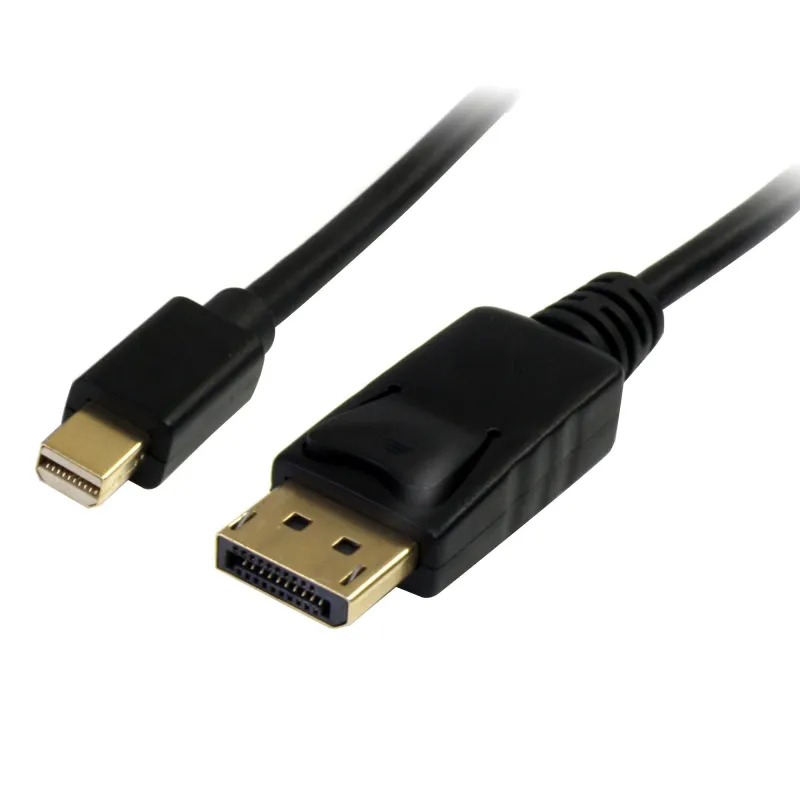

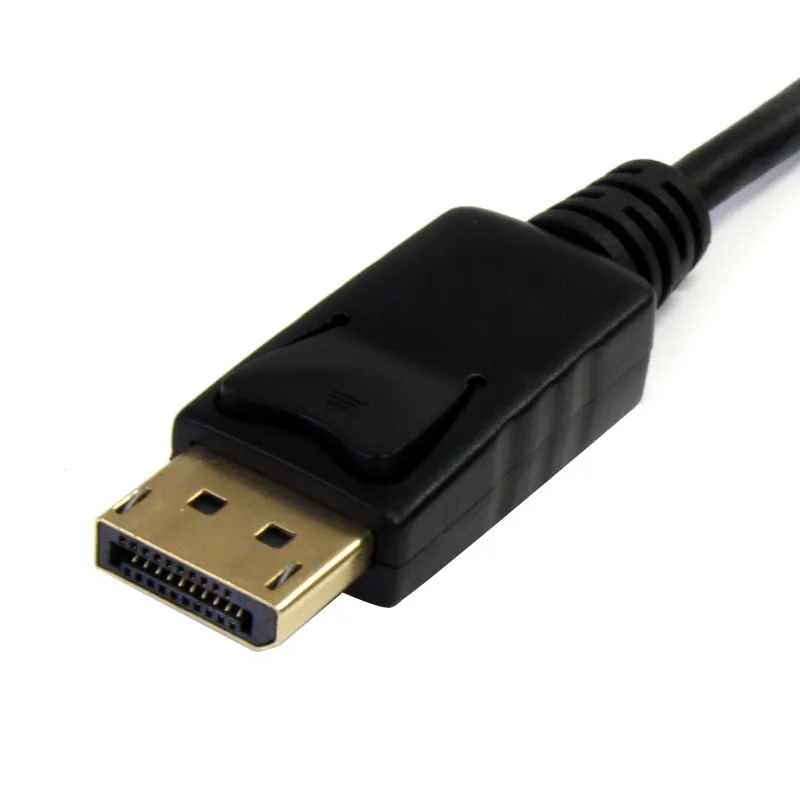

The MDP2DPMM2M 2m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM2M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
| Features | |
|---|---|
| Number of conductors | 19 |
| Multi-Stream Transport (MST) | Yes |
| Plug and Play | Yes |
| Bandwidth | 21600 MB/s |
| AWG wire size | 32 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Product colour | Black |
| Maximum refresh rate | 120 Hz |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2400 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | mini DisplayPort |
| Cable length | 2 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 60 g |
| Packaging data | |
|---|---|
| Package weight | 80 g |
| Package height | 27 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 80 pc(s) |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case width | 324 mm |
| Harmonized System (HS) code | 84733080 |
