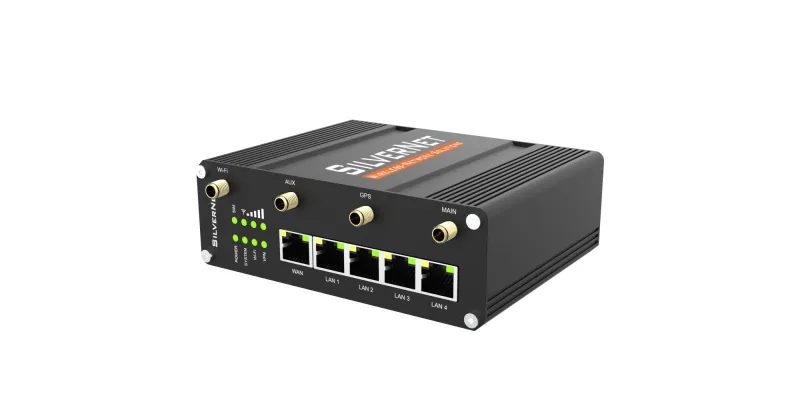

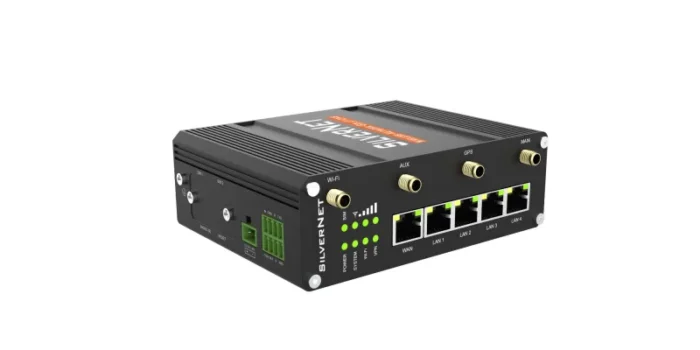

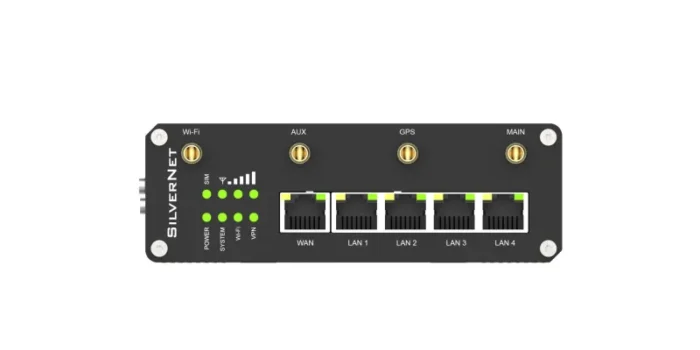

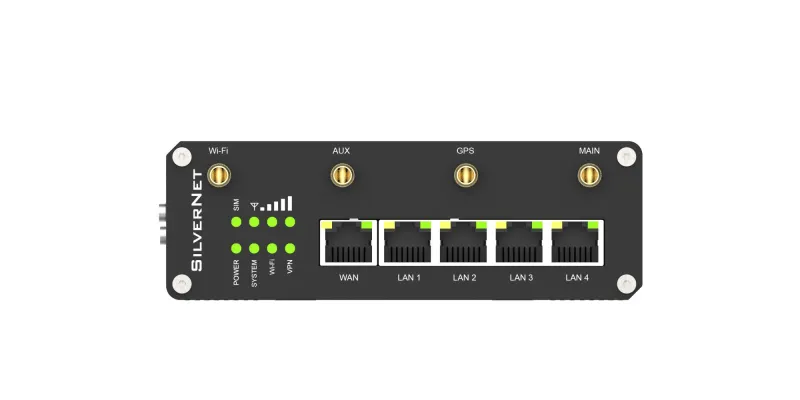

SilverNet SIL iSITE Switch
- NXP Industrial Grade Processor
- Global 4G LTE CAT4/3G Network with Dual SIM Cards for backup between multiple Carrier Networks
- Flexible modular design providing Ethernet, I/O, Serial, Wi-Fi and GPS
- FXS Port for telephone communication
- Rugged Enclosure with IP30 Protection
- Supports 802.11 b/g/n
- Supports SNMP, Modbus Bridging, RIP, OSPF
- 4 x PoE+ 30W 10/100 BaseT Ethernet LAN Ports + 1 x RJ45 WAN Port
- Automatic Failover between Ethernet, Cellular and Wi-Fi
- Supports VPN Tunnels IPsec, iSITE VPN, GRE, L2TP, PPTP, DMVPN
- Supports AAA (Radius, TACACS+, LDAP)
- 2 Year Warranty as standard
The SIL iSITE Switch is an economical, industrial-grade mobile router with embedded smart features designed for a wide range of M2M/IoT applications.
Leveraging Global WCDMA and 4G LTE carrier support with seamless connectivity, the iSITE Switch is ideal for operators aiming to maximize uptime.
Its straightforward deployment and extensive remote device management make the iSITE Switch highly adaptable for a variety of IoT/M2M applications.
Featuring an integrated cellular modem and dual SIM functionality, the iSITE Switch offers 3G/4G cellular connectivity with 150Mbps download and 50Mbps upload speeds.
The device’s LAN ports are PoE+ capable, providing up to 30W of power output to connected equipment.
Additionally, it includes 5 fast Ethernet ports and supports Wi-Fi compliant with 802.11b/g/n standards, ensuring continuous internet access for users.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (third band) | 65 Mbit/s |
| WLAN data transfer rate (second band) | 54 Mbit/s |
| WLAN data transfer rate (first band) | 11 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 65 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Network | |
|---|---|
| VPN Passthrough | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Automatic channel selection | Yes |
| Load balancing system | Yes |
| Port forwarding | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| SIM card type | MicroSIM |
| Dual SIM support | Yes |
| Mobile network generation | 4G |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| Terminal block port | Yes |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| System event log | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Protocols | |
|---|---|
| Supported network protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH |
| Management protocols | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3 |
| Routing protocols | OSPF, RIP-1, RIP-2, VRRP |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| LED indicators | Activity, LAN, Power, System, VPN, WLAN |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
| Housing material | Aluminium |
| Product colour | Black |
| Product type | Portable router |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| AC adapter included | Yes |
| Certificates | |
|---|---|
| Certification | CE, FCC, RCMRoHSIEC 61000-4-2 Level 3IEC 61000-4-3 Level 2IEC 61000-4-4 Level 3IEC 61000-4-5 Level 3IEC 61000-4-6 Level 3IEC 61000-4-8 Level 4IEC 61000-4-11 Level 3EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328EN62368-1 |
| Antenna | |
|---|---|
| Antennas quantity | 4 |
| Antenna connector type | RJ-SMA |
| Antenna design | External |
| Features | |
|---|---|
| Electromagnetic compatibility | EN 55032, EN 55035 |
| Firmware upgradeable | Yes |
| Watch Dog function | Yes |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
| Processor frequency | 528 MHz |
| Processor architecture | ARM Cortex A7 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 3.9 W |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Isolation | 1.5 kV |
| Operating temperature (T-T) | -40 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Weight & dimensions | |
|---|---|
| Width | 45 mm |
| Depth | 103 mm |
| Height | 135 mm |
| Weight | 485 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package type | Box |
| Package weight | 1.32 kg |
| Package height | 55 mm |
| Package depth | 340 mm |
| Package width | 195 mm |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
| Warranty period | 2 year(s) |
