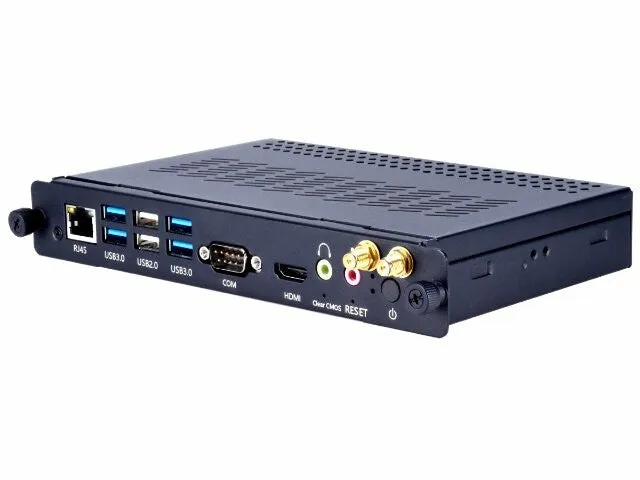

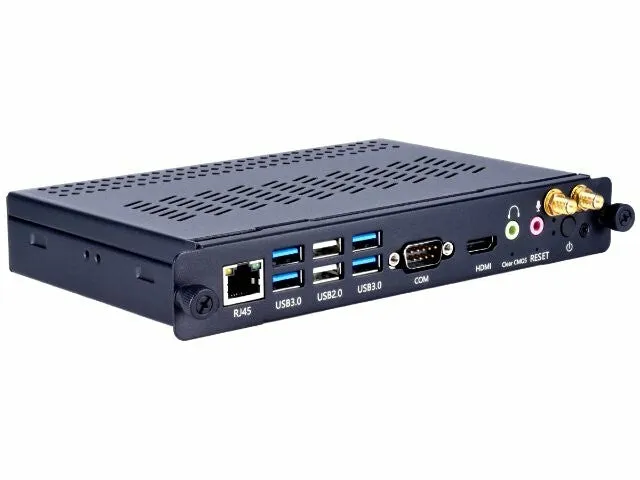

SHARP/NEC 100016113 embedded computer 2.1 GHz Intel® Core™ i3 128 GB SSD 4 GB
- Best value for signage – showing digital signage content was never that powerful in this product category: smooth playback of moving content but also great for Flight Information Display Systems (FIDS)
- Versatile performance – the Core™ i3-8145U processor with 4GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing
- High usage flexibility – thanks to wide connectivity such as 6 x USB, HDMI, Gigabit Ethernet, RS-232 and Audio by, there’s no need to add additional adapters or signal splitters
- Seamless and fully embedded – the OPS form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video and audio signals and RS-232
- 100% compatibility and enhanced feature-set – in combination with supported NEC and Sharp large format displays
- High reliability – ideally suited for 24/7 operation in signage applications
OPS Computing Module Midrange (Core i3)
This Core i3 powered Intel® OPS slot-in PC supports a wide variety of applications such as flight and passenger information, retail and corporate signage as well as interactive and kiosk applications.
| Processor |
| Thermal Design Power (TDP) |
15 W |
| Processor lithography |
14 nm |
| Processor threads |
4 |
| System bus rate |
4 GT/s |
| Processor cache type |
Smart Cache |
| Processor cache |
4 MB |
| Processor boost frequency |
3.9 GHz |
| Processor cores |
2 |
| Processor model |
8145U |
| Processor generation |
8th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Processor frequency |
2.1 GHz |
| Memory |
| Memory slots |
2x SO-DIMM |
| Internal memory |
4 GB |
| Storage |
| SSD capacity |
128 GB |
| SSD interface |
M.2 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics 620 |
| On-board graphics card |
Yes |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
No |
| Ports & interfaces |
| Headphone outputs |
1 |
| Line-out |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Performance |
| Product colour |
Black |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Microsoft Windows 10 IoT Enterprise |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Package weight |
1.2 kg |
| Package height |
75 mm |
| Package depth |
245 mm |
| Package width |
325 mm |
| Weight |
800 g |
| Height |
30 mm |
| Depth |
118 mm |
| Width |
180 mm |
