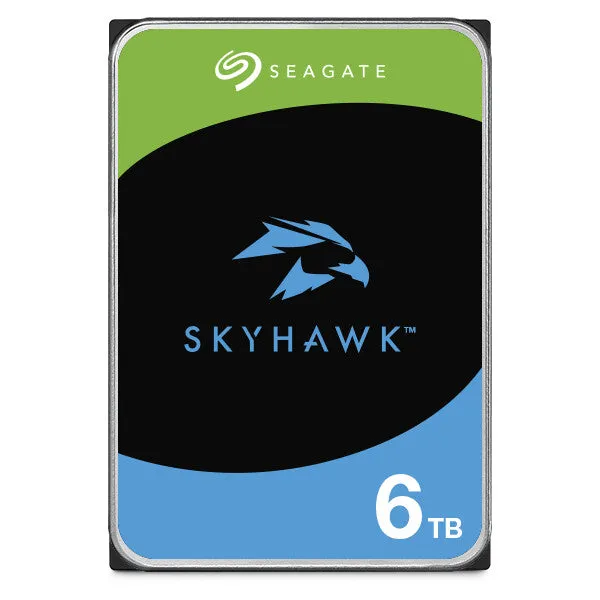

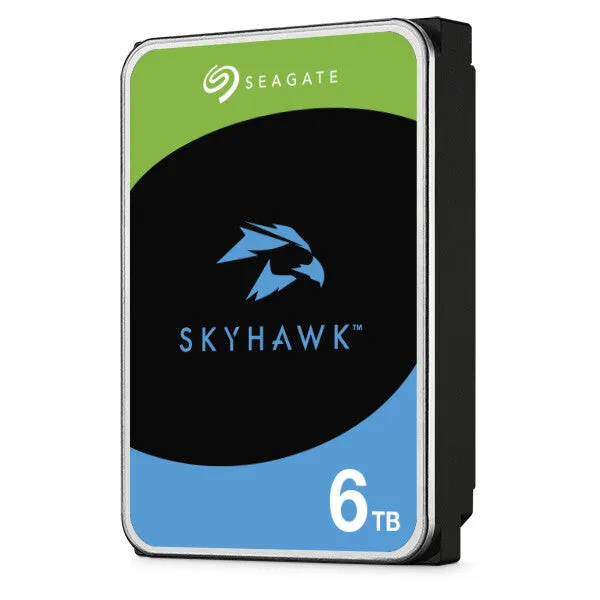

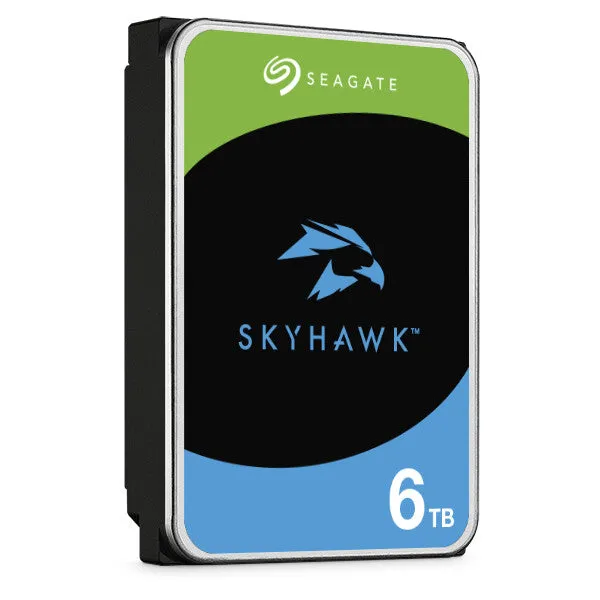

Seagate SkyHawk internal hard drive 6 TB 256 MB 3.5″ Serial ATA III
- 6 TB 3.5″ Serial ATA III
- PC HDD
- Storage drive buffer size: 256 MB
- 6 Gbit/s
- Uncorrectable Bit Error Rate (UBER): < 1 per 10^14 bits read
- 630 g
SkyHawk™ leverages Seagate’s extensive experience in designing drives purpose-built for surveillance applications.
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate’s in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| Workload rate limit | 180 TB/year |
| Start/stop cycles | 600000 |
| RV sensor(s) | Yes |
| 24/7 operation | Yes |
| Rotational Vibration (RV) sensors | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^14 bits read |
| HDD sustained transfer rate | 180 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 256 MB |
| Component for | PC |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5″ |
| HDD capacity | 6 TB |
| Power | |
|---|---|
| Start-up current | 1.8 A |
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 3.4 W |
| Power consumption (off) | 0.25 W |
| Power consumption (typical) | 5.3 W |
| General | |
|---|---|
| Product family | SkyHawk |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 630 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Other features | |
|---|---|
| Maximum number of cameras supported | 64 |
- leaflet
