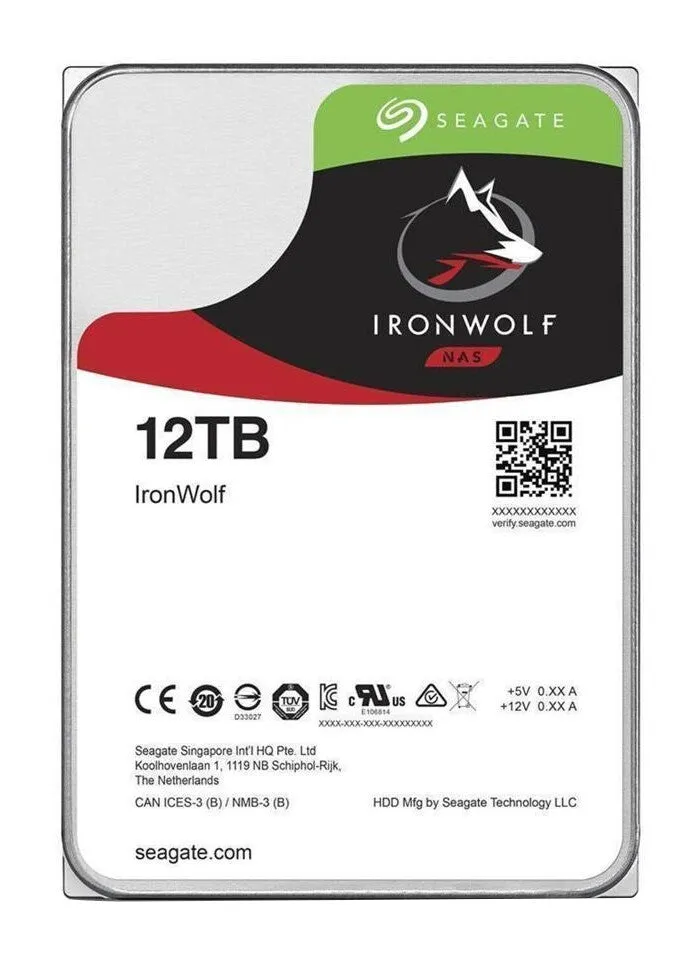

Seagate NAS HDD IronWolf internal hard drive 12 TB 7200 RPM 256 MB 3.5″ Serial ATA III
- 12 TB 3.5″ 7200 RPM Serial ATA III
- NAS HDD
- Storage drive buffer size: 256 MB
- 6 Gbit/s
- 690 g
The Best Comes From Within
Seagate has dominated the data storage industry for 40 years.
We understand your unique data storage challenges, and crafted the IronWolf® and IronWolf Pro 14 TB NAS hard drives to help you achieve your goals.
Be Tough. Be Ready.
For everything NAS, there’s IronWolf and IronWolf Pro — always on, always working.
Built for multi-user environments and high workload rates, these NAS hard drives are enhanced with AgileArray technology for optimal reliability and system scalability.
Drive Health and Data Recovery
IronWolf Health Management (IHM) means better drive health. When IronWolf or IronWolf Pro hard drives are integrated into compatible network attached storage (NAS) systems, the overall system reliability increases because the NAS system is constantly monitored and users are alerted if needed.
Built for Work. Built for Performance.
Multiple users can confidently upload and download data on a NAS system populated with IronWolf hard drives.
All IronWolf hard drives are equipped with RV sensors to maintain performance in multi-bay NAS enclosures.
Support Your Business
A small business needs data that can thrive.
IronWolf NAS hard drives can handle the vibrations and high workload rates of a high data network within a multi-RAID environment.
Be Creative. Keep Growing.
IronWolf and IronWolf Pro help keep you on schedule with 24×7 remote access, backup, and file sharing.
So keep doing what you do best. These drives will keep pace with your growing data storage requirements.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1000000 h |
| Workload rate limit | 180 TB/year |
| Start/stop cycles | 600000 |
| HDD sustained transfer rate | 210 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 256 MB |
| Component for | NAS |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5″ |
| HDD speed | 7200 RPM |
| HDD capacity | 12 TB |
| Power | |
|---|---|
| Start-up current | 1.8 A |
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 5 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (typical) | 7.8 W |
| General | |
|---|---|
| Product family | NAS HDD |
| Operational conditions | |
|---|---|
| Non-operating shock | 250 G |
| Operating shock | 70 G |
| Non-operating altitude | -304.8 – 12192 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 5 – 70 °C |
| Technical details | |
|---|---|
| Doesn’t contain | Halogen |
| Weight & dimensions | |
|---|---|
| Weight | 690 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.8 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 4 pc(s) |
| Logistics data | |
|---|---|
| Products per pallet | 40 pc(s) |
| Layers per pallet | 8 pc(s) |
| Harmonized System (HS) code | 84717050 |
| Other features | |
|---|---|
| Quantity per box | 20 pc(s) |
