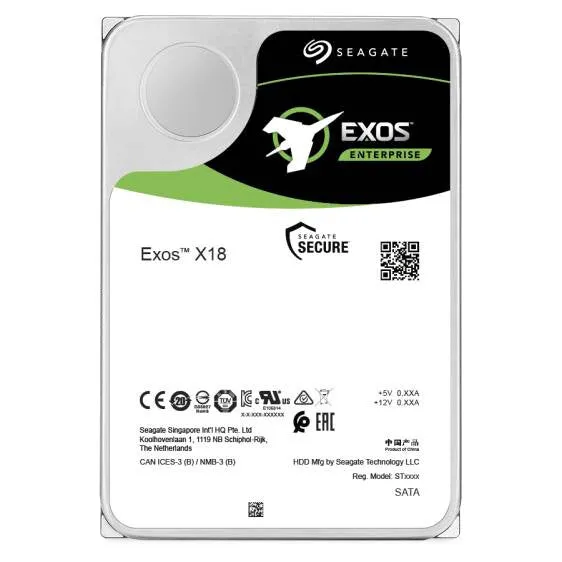

Seagate Exos X18 internal hard drive 16 TB 7200 RPM 256 MB 3.5″ SAS
- 16 TB 3.5″ 7200 RPM SAS
- Server/workstation HDD
- Storage drive buffer size: 256 MB
- 12 Gbit/s
- 670 g
The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data centre.
Scalable. Responsive. Innovative
Designed to handle the most rigorous workloads, the Seagate Exos X series enterprise class drives are perfect, high-reliability solutions for servers, storage systems, and business-centric NAS systems. Whatever your applications, there’s an Exos drive for it.

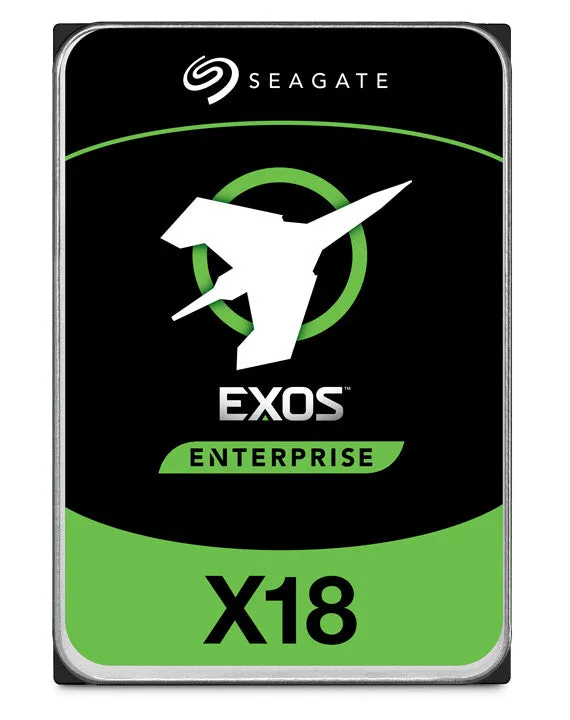

Exos X18
Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18 TB capacity.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2500000 h |
| 24/7 operation | Yes |
| Rotational Vibration (RV) sensors | Yes |
| Average latency | 4.16 ms |
| HDD sustained transfer rate | 249 MiB/s |
| HDD interface transfer rate | 12 Gbit/s |
| Storage drive buffer size | 256 MB |
| Hot-swap | Yes |
| Component for | Server/workstation |
| Type | HDD |
| Interface | SAS |
| HDD size | 3.5″ |
| HDD speed | 7200 RPM |
| HDD capacity | 16 TB |
| Power | |
|---|---|
| Operating voltage | 5 / 12 V |
| Power consumption (read) | 9.9 W |
| Power consumption (write) | 7 W |
| Power consumption (idle) | 5.8 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 200 G |
| Operating shock | 50 G |
| Operating vibration | 2.27 G |
| Operating temperature (T-T) | 5 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 670 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.8 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
