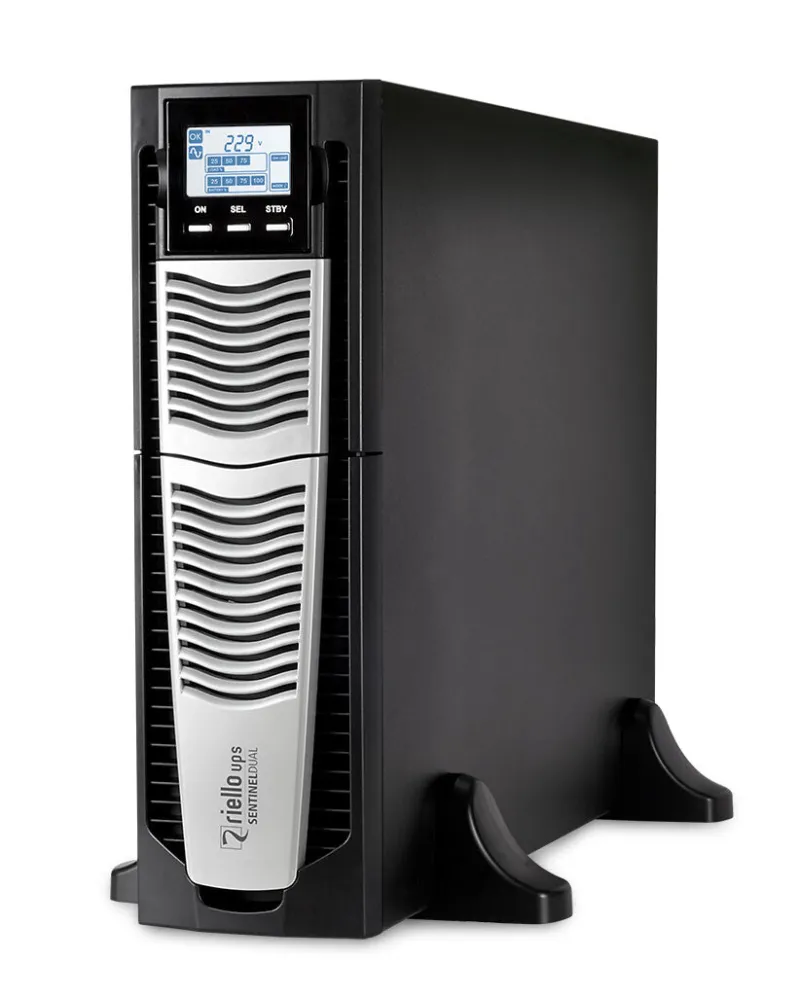

Riello Sentinel Dual SDU 6000 ER uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 2 AC outlet(s)
- Parallelable up to 3 units
- Simplified installation
- Operating mode selection
- High quality output voltage
- High battery reliability
Sentinel Dual is the best solution for powering mission critical applications and electro-medical devices requiring maximum power reliability.
The Sentinel Dual range is available in 4 kVA and 5-6-8-10 kVA/kW models with ON LINE double conversion technology (VFI): the load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of voltage, form and frequency.
Reduce your power consumption using ECO and SMART ACTIVE modes. Prioritise your most critical loads with EnergyShare sockets that enable easy load-shedding. Load-controlled fans minimise noise disruption (<48 dBA).
| Features | |
|---|---|
| Power protection features | Battery discharge, Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Surge protection | Yes |
| Noise level | 48 dB |
| Crest factor | 3:1 |
| Power factor | 0.98 |
| Efficiency (ECO mode) | 98% |
| Efficiency (On-line mode) | 95% |
| Number of input phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 264 V |
| Input operation voltage (min) | 184 V |
| Waveform | Sine |
| Output power | 6000 W |
| Output power capacity | 6 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port | Yes |
| AC outlets quantity | 2 AC outlet(s) |
| AC outlet types | C13 coupler, IEC 320, Terminal |
| Battery | |
|---|---|
| Battery recharge time | 6 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Built-in fan | Yes |
| Cooling type | Active |
| Rack capacity | 3U |
| Product colour | Black, Silver |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 4000 m |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | EN 62040-2, 2014/30/EU |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Safety regulation & standards | |
|---|---|
| Safety | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Weight & dimensions | |
|---|---|
| Weight | 20 kg |
| Height | 448 mm |
| Depth | 640 mm |
| Width | 131 mm |
