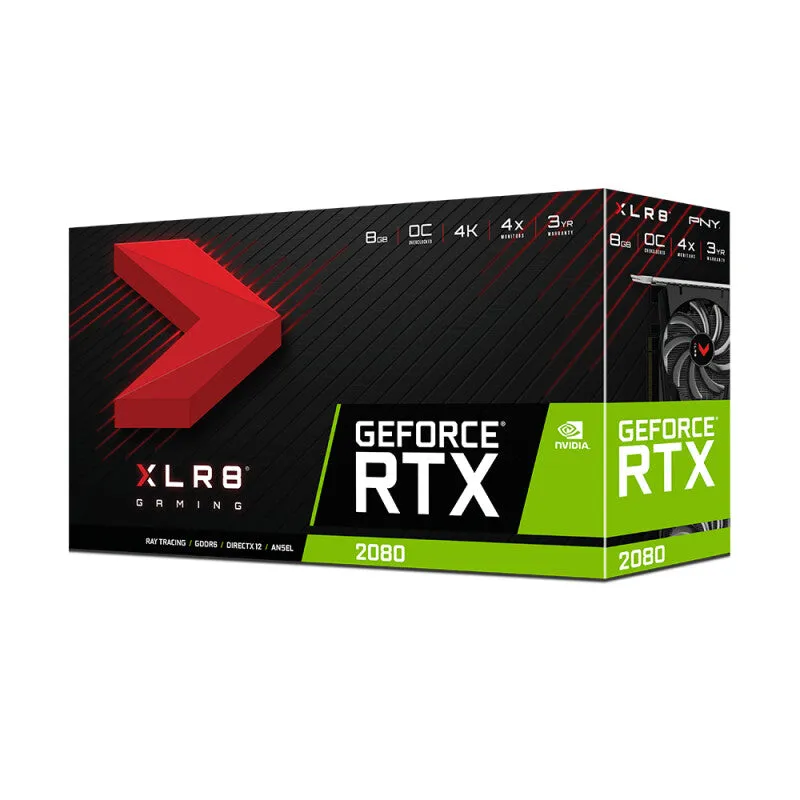

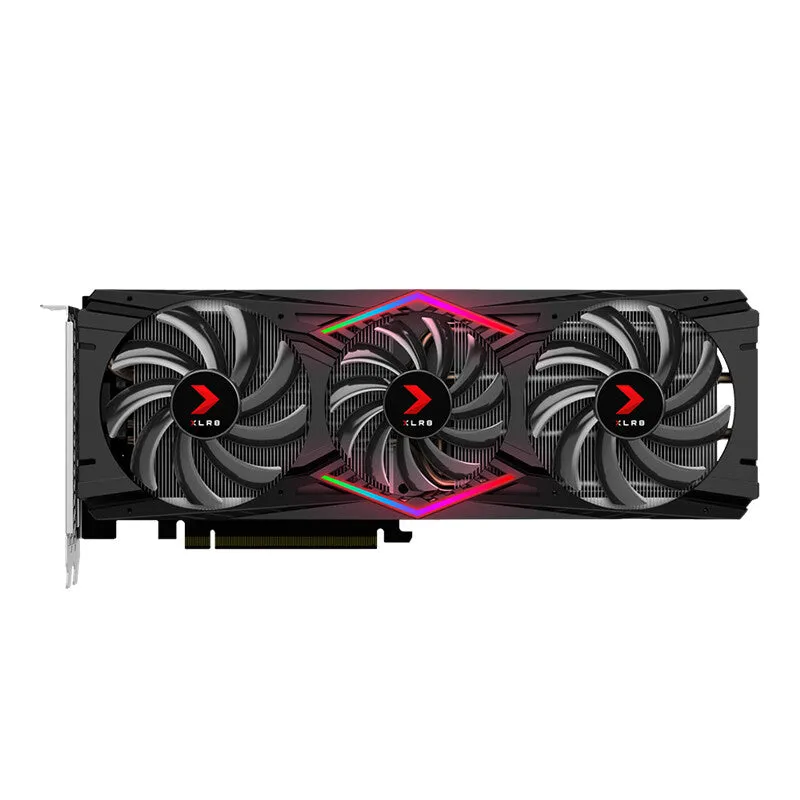

PNY VCG20808TFPPB-O graphics card NVIDIA GeForce RTX 2080 8 GB GDDR6
- Real-Time Ray Tracing
- NVIDIA® GeForce ExperienceTM
- NVIDIA® Ansel
- NVIDIA® Highlights
- NVIDIA® G-SYNCTM-Compatible
- Game Ready Drivers
- Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4/5
- DisplayPort 1.4, HDMI 2.0b
- Designed for USB Type-C™ and VirtualLink™1
- HDCP 2.2
- NVIDIA® GPU Boost™
- VR Ready
NVIDIA Turing TM
GeForce® RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform.
Up to 6X Faster Performance
Experience 6X the performance of previous-generation graphics cards combined with maximum power efficiency.
Real-Time RAY TRACING In Games
GeForce® RTX 2080 is light years ahead of other cards, delivering truly unique real-time ray-tracing technologies for cutting-edge, hyper-realistic graphics.
Latest AI Enhanced Graphics
Powered by NVIDIA Turing™, GeForce® RTX 2080 brings the power of AI to games.
GEFORCE® RTX 2080, GRAPHICS REINVENTED
The GeForce® RTX 2080 is powered by the all-new NVIDIA Turing™ architecture to give you incredible new levels of gaming realism, speed, power efficiency, and immersion. This is graphics reinvented.
| Processor |
| Maximum digital resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
2-Way NVLink |
| Processor boost clock speed |
1710 MHz |
| Processor frequency |
1515 MHz |
| CUDA cores |
2944 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 2080 |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bandwidth (max) |
448 GB/s |
| Data transfer rate |
14 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.4 |
| USB Type-C ports quantity |
1 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
| NVIDIA Ansel |
Yes |
| NVIDIA G-SYNC |
Yes |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.5 |
| DirectX version |
12.0 |
| Design |
| Product colour |
Black |
| Number of slots |
2 |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 6-pin, 1x 8-pin |
| Minimum system power supply |
500 W |
| System requirements |
| Minimum RAM |
8000 MB |
| Minimum storage drive space |
1500 MB |
| Minimum system requirements |
PCI Express-compliant motherboard with one doublewidth×16 graphics slotOne 6-Pin and One 8-pin PCI Express supplementary power connectorMinimum 500W or greater system power supply2300MB of available hard-disk space8GB system memory (16GB or higher recommended)Microsoft Windows 10, Windows 7, LinuxInternet connection37680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Prebuilt system may require less power depending on system configuration.3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the “VirtualLink Advance Overview”. |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Height |
113 mm |
| Depth |
40 mm |
| Length |
293 mm |
| Packaging data |
| Package height |
212 mm |
| Package depth |
96 mm |
| Package width |
373 mm |
