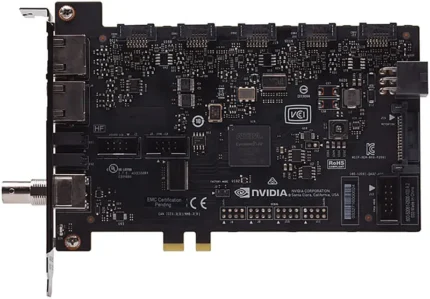

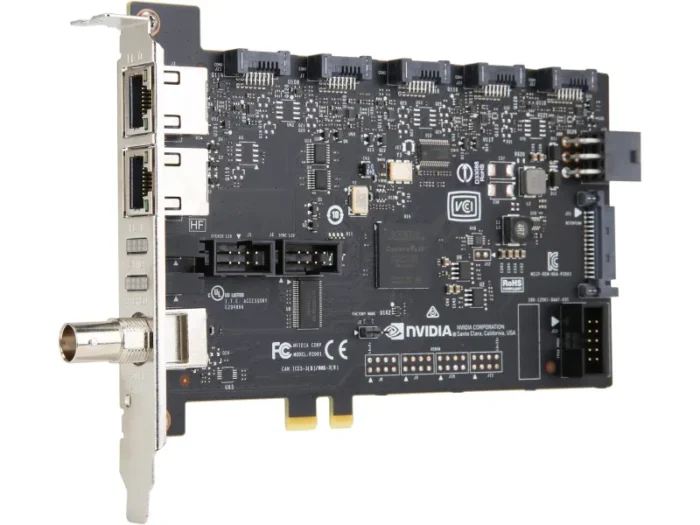

PNY NVIDIA Quadro Sync II
- Keep multi-projector systems or video walls free of imaging artifacts without impacting performance
- Align inputs for multi-input display devices like 8K projectors or panels
- Keep stereoscopic 3D displaying properly across multiple systems
- Synchronize displays or projectors to an external timing source
NVIDIA® Quadro® Sync II solutions enable the creation of dazzling ultra-high resolution, perfectly synchronized displays to meet visualization and presentation needs across industries. Designed for flexibility and scalability, NVIDIA Quadro Sync II boards connect to select NVIDIA Quadro GPUs, synchronizing them with the displays or projectors attached to them. NVIDIA Quadro Sync II also enables NVIDIA Quadro Mosaic™ technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application.
| Features | |
|---|---|
| Compatible products | NVIDIA Quadro RTX 8000NVIDIA Quadro RTX 6000NVIDIA Quadro RTX 5000NVIDIA Quadro RTX 4000NVIDIA Quadro GV100NVIDIA Quadro GP100NVIDIA Quadro P6000NVIDIA Quadro P5000NVIDIA Quadro P4000 |
| Number of GPUs supported | 4 |
| Projector overlap | Yes |
| Stereoscopic 3D support | Yes |
| Interface type | PCIe |
| Secure cable | Yes |
| Cooling type | Passive |
| Ports & interfaces | |
|---|---|
| Number of sync edge connectors | 4 |
| Genlock input ports | 1 |
| RJ-45 ports quantity | 2 |
| Frame lock in | Yes |
