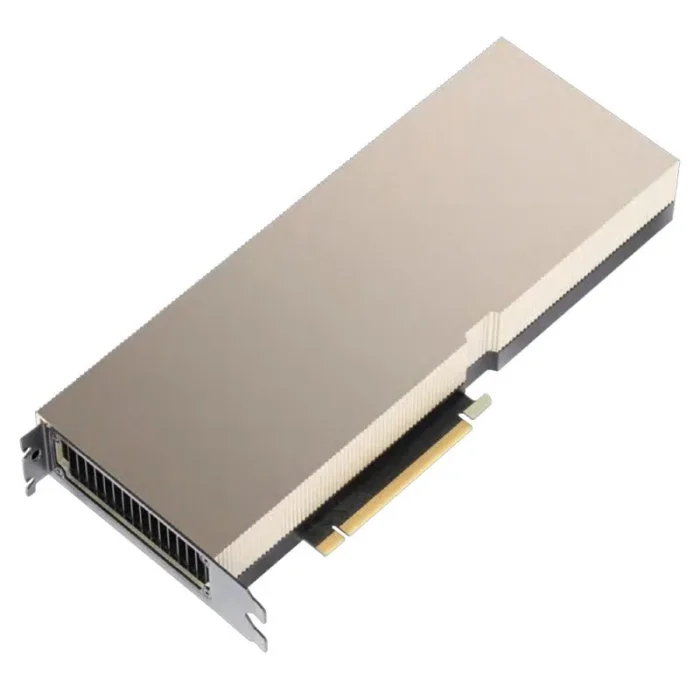

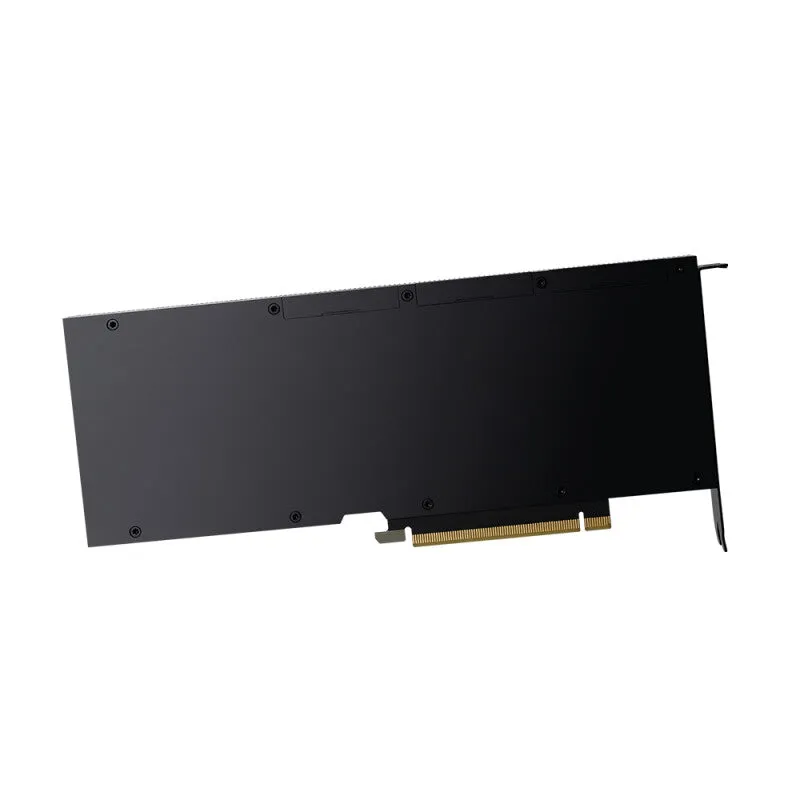

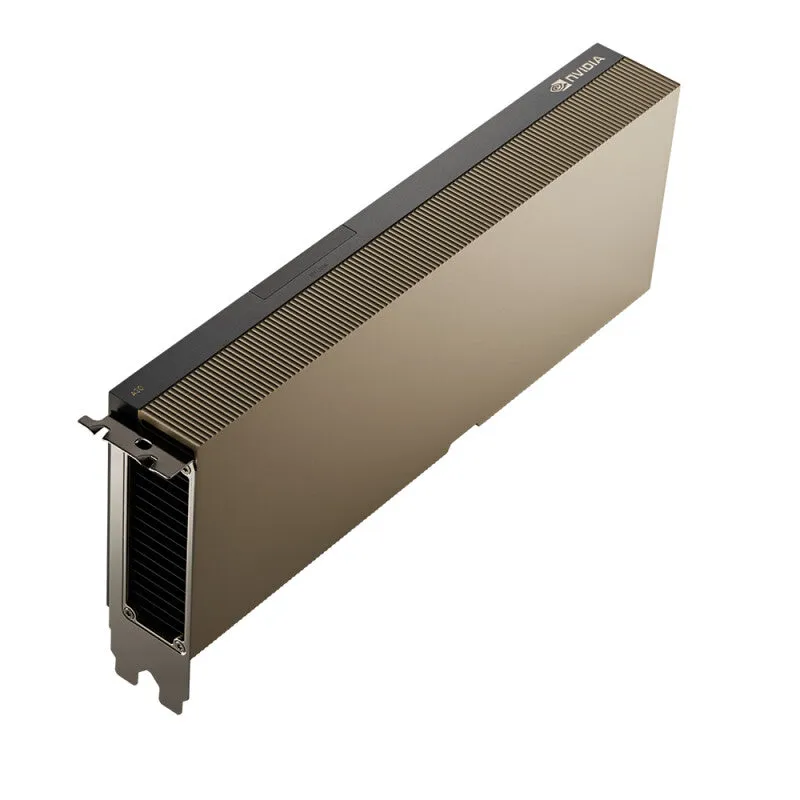

PNY A30 NVIDIA 24 GB High Bandwidth Memory 2 (HBM2)
- NVIDIA A30 24 GB High Bandwidth Memory 2 (HBM2)
- 3072 bit PCI Express x16 4.0
- 165 W 1x 8-pin
NVIDIA A30 Tensor Core GPU is the most versatile mainstream compute GPU for AI inference and mainstream enterprise workloads. Powered by NVIDIA Ampere architecture Tensor Core technology, it supports a broad range of math precisions, providing a single accelerator to speed up every workload. Built for AI inference at scale, the same compute resource can rapidly re-train AI models with TF32, as well as accelerate high-performance computing (HPC) applications using FP64 Tensor Cores. Multi-Instance GPU (MIG) and FP64 Tensor Cores combine with fast 933 gigabytes per second (GB/s) of memory bandwidth in a low 165W power envelope, all running on a PCIe card optimal for mainstream servers.
| Processor |
| Parallel processing technology support |
Not supported |
| FireStream |
No |
| CUDA cores |
3804 |
| CUDA |
Yes |
| Graphics processor |
A30 |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bandwidth (max) |
933 GB/s |
| Memory bus |
3072 bit |
| Graphics card memory type |
High Bandwidth Memory 2 (HBM2) |
| Discrete graphics card memory |
24 GB |
| Ports & interfaces |
| Interface type |
PCI Express x16 4.0 |
| Performance |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| Design |
| Product colour |
Beige |
| Number of slots |
2 |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Cooling type |
Passive |
| Power |
| Supplementary power connectors |
1x 8-pin |
| Power consumption (typical) |
165 W |
| Weight & dimensions |
| Height |
111.2 mm |
| Length |
267.7 mm |
| Weight |
1.02 kg |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
