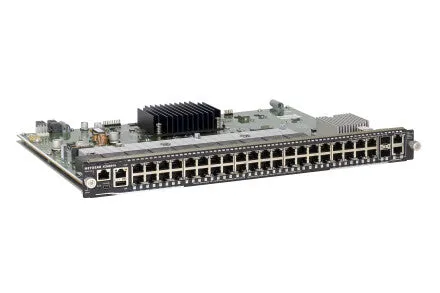

NETGEAR XCM8944 network switch module 10 Gigabit Ethernet, Gigabit Ethernet
- 10 Gigabit Ethernet, Gigabit Ethernet 10,100,1000,10000 Mbit/s
- SFP+
- Data transfer rate: 10 Gbit/s
- Access Control List (ACL)
- Quality of Service (QoS) support
The NETGEAR Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability – including passive backplane, hitless failover, redundant fabric and redundant management – without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
| Network | |
|---|---|
| Link aggregation | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP+ |
| Data transmission | |
|---|---|
| Data transfer rate | 10 Gbit/s |
| Ports & interfaces | |
|---|---|
| Fiber ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 42 |
| Performance | |
|---|---|
| Compatibility | Netgear M6100 |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Queues per port | 7 |
| Quality of Service (QoS) support | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 3000 m |
| Weight & dimensions | |
|---|---|
| Weight | 7.41 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
