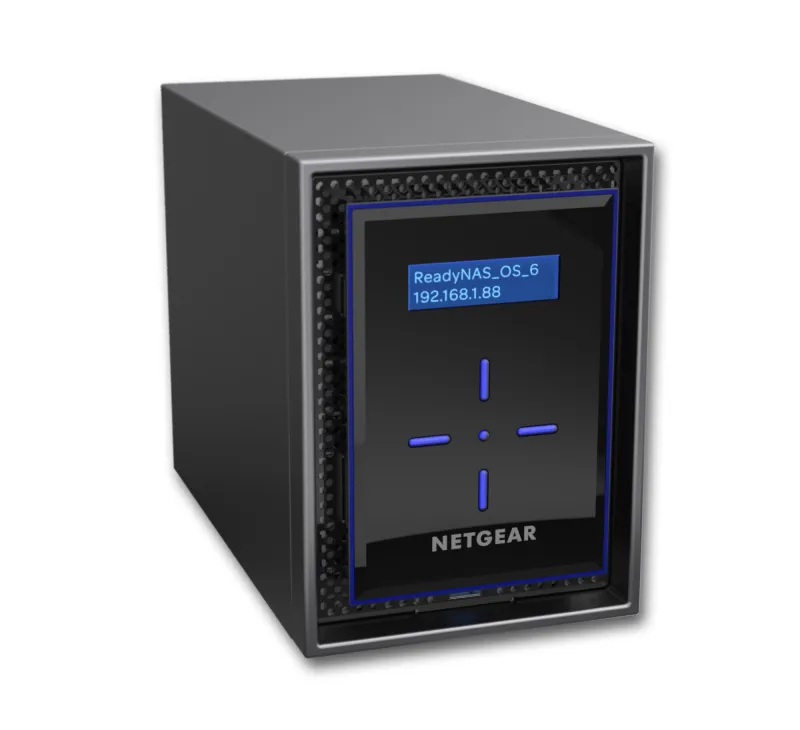

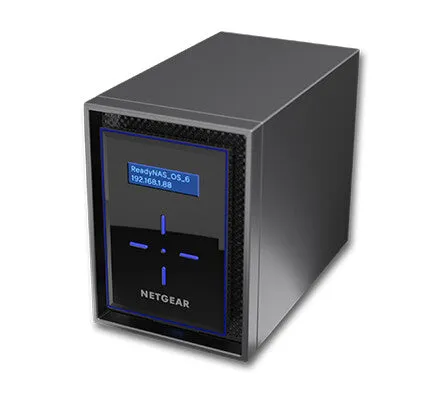

NETGEAR ReadyNAS 422 NAS Desktop Intel Atom® C3338 2 GB DDR4 12 TB HDD Black
- Small & Medium Business NAS Desktop Black
- 6
- Total installed storage capacity: 12 TB Number of storage drives supported: 2 HDD & SSD
- Intel Atom® C3338 1.5 GHz
- 2 DDR4
- Ethernet LAN Jumbo frames support iSCSI support
- Cooling type: Active
High-performance Business Data Storage
2 Bays with up to 20 TB total storage
ReadyNAS 422 enables all the features a smart and modern business is looking for in a single, compact solution: file storage, file sharing, automatic on-premise, off-premise or cloud backup and recovery and full data protection. ReadyNAS 422 is built around the next generation Intel Atom Processor C3338 (1.5 GHz, 2 core) for high levels of networking throughput enabling enterprise-grade file sharing and data backup for offices up to 40 employees.
File Sharing
These days, running a successful business often depends on successful file sharing—application data, virtual images, client files, email, all the digital files that make your business go. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing, and sharing those critical assets. Fasters processors mean more simultaneous users can access unified storage—across PC, Mac and Linux environments. Full Dropbox integration makes it easier than ever to sync your important files, photos or videos across all of your web-connected devices.
Backup
Industry’s most advanced data protection solution for SMB. Businesses depend on data – customer information, transaction records, pay roll, product development and marketing data. ReadyNAS helps businesses protect their data against physical and human errors, malicious attacks, and natural disasters. Business continuity is part of any business plan. Make ReadyNAS part of your business plan with a combination of backup solutions:
– ReadyDR – Block level replication for businesses
– ReadyNAS Replicate – File replication to any ReadyNAS anywhere
– Backup to cloud storage (Dropbox, Amazon)
Disaster Recovery
The custom-built ReadyNAS OS protects stored data with automatic RAID configuration, the continuous security of Unlimited Snapshots, and easy to manage Cloud Replication. By maintaining multiple copies of vital data through cloud replication, it makes it easy for you to move data off-site to protect against natural disasters and theft.
Virtualization
ReadyNAS is VMWare vSphere ESXi 6.0 certified for high-performance virtualized storage with workload-heavy VM support. Build your own Private Cloud for data compliance and privacy which might not be compatible with public cloud solutions.
| Storage | |
|---|---|
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| RAID support | Yes |
| Maximum supported storage capacity | 20 TB |
| Storage drive size | 2.5/3.5″ |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 6 TB |
| Supported storage drive types | HDD & SSD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 2 |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 12 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1×2, 1×4, 1×8 |
| Processor codename | Denverton |
| Tcase | 89 °C |
| Tjunction | 100 °C |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Processor code | SR36E |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 34 x 28 mm |
| Processor socket | BGA 1310 |
| Stepping | B0 |
| Thermal Design Power (TDP) | 9 W |
| Processor cache | 4 MB |
| Processor threads | 2 |
| Processor cores | 2 |
| Processor boost frequency | 2.2 GHz |
| Processor frequency | 1.5 GHz |
| Processor model | C3338 |
| Processor family | Intel Atom® |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Internal memory | 2 GB |
| Network | |
|---|---|
| Link aggregation | Yes |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| DHCP client | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |

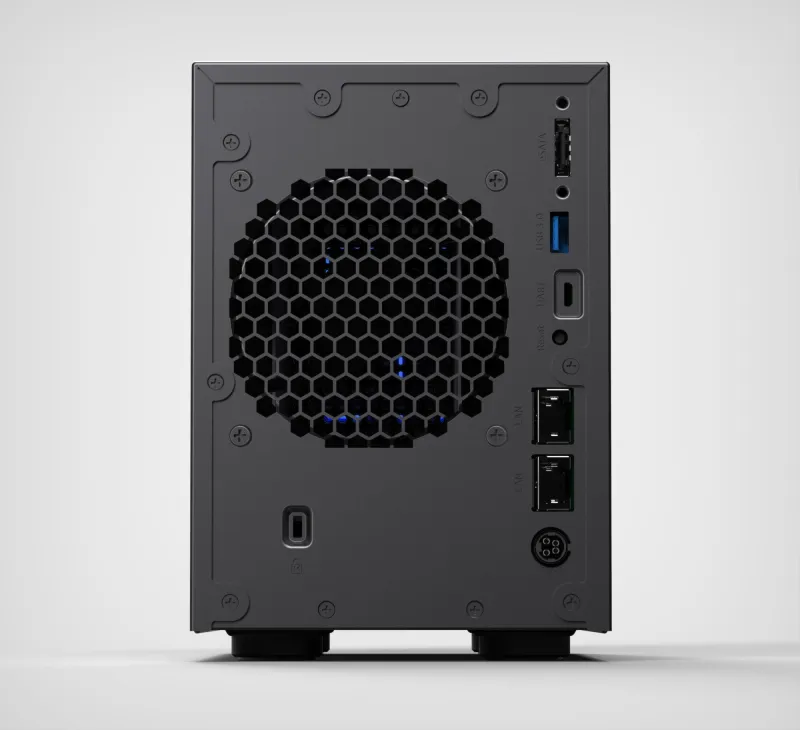

| Ports & interfaces | |
|---|---|
| eSATA ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Built-in display | Yes |
| LED indicators | Yes |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cooling type | Active |
| Chassis type | Desktop |
| Performance | |
|---|---|
| Security algorithms | 256-bit AES |
| On/off switch | Yes |
| Built-in UPnP AV media server | Yes |
| S.M.A.R.T. support | Yes |
| Browser supported | Microsoft Internet Explorer 9+, Microsoft Edge, Mozilla Firefox 14+, Google Chrome 20+, Apple Safari 5+ |
| Number of users | 8192 user(s) |
| Backup function | Yes |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2012 R2 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operating system version | 6 |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (off) | 0.27 W |
| Power consumption (sleep) | 4.5 W |
| Power consumption (typical) | 34.86 W |
| Weight & dimensions | |
|---|---|
| Weight | 3.52 kg |
| Height | 194 mm |
| Depth | 239 mm |
| Width | 135.5 mm |
| Processor special features | |
|---|---|
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory channels supported by processor | Single |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Intel QuickAssist Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 10 |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 45 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Other features | |
|---|---|
| Processor ARK ID | 97928 |
| Certification | FCC, CE, VCCI |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Compliance certificates | RoHS |
