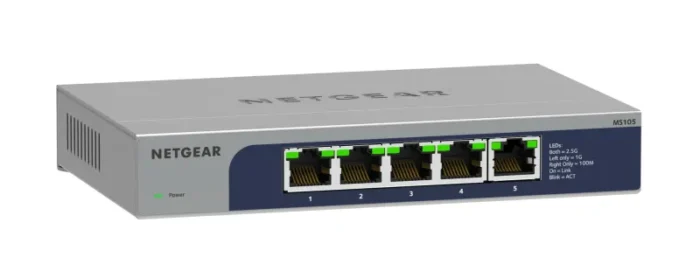

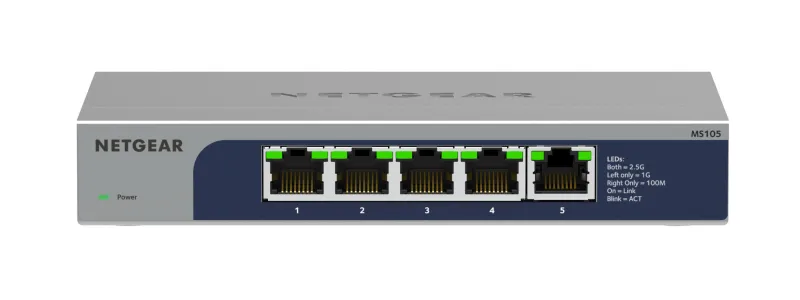

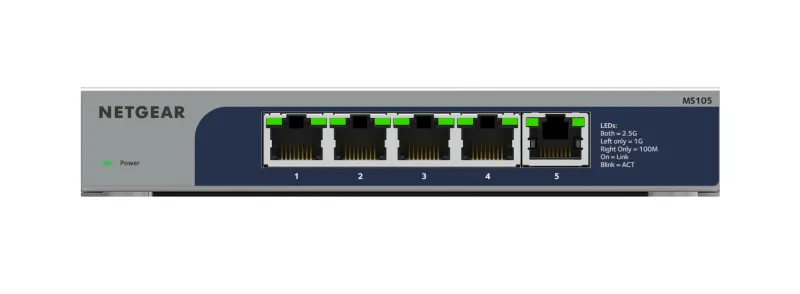

NETGEAR MS105 Unmanaged 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Blue, Metallic
- RELIABLE PERFORMANCE
- ENERGY EFFICIENT
- PLUG-AND-PLAY
- SILENT OPERATION
- VERSATILE MOUNTING OPTIONS
The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS105, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS105 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | No |
| Half duplex | Yes |
| Full duplex | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 9720 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2.458 µs |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
|---|---|
| Market segment | Business |
| Wall mountable | Yes |
| LED indicators | Activity, Link, Power, Speed |
| Housing material | Metal |
| Product colour | Blue, Metallic |
| Form factor | Desktop/Wall-Mounting |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1401743 h |
| Fanless | Yes |
| Plug and Play | Yes |
| Noise level | 0 dB |
| Power | |
|---|---|
| Power saving mode (EEE) | Yes |
| Power consumption (max) | 9.24 W |
| Power consumption (typical) | 4.6 W |
| Input current | 1 A |
| DC input voltage | 12 V |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Bandwidth | 25 Gbit/s |
| Operational conditions | |
|---|---|
| Heat dissipation | 31.545 BTU/h |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 480 g |
| Height | 29 mm |
| Depth | 101 mm |
| Width | 158 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Wall mounting kit | Yes |
| Rubber feet | Yes |
| Certificates | |
|---|---|
| Certification | CB, CSA, CCC, BSMI, RCM, CE LVD |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), ISED, KC, RCM, VCCI |
