Neomounts ADM-875WH2 Dual screen adapter 42-65″
- Mounting bar
- Material: Steel
- Maximum weight capacity: 40 kg
- White

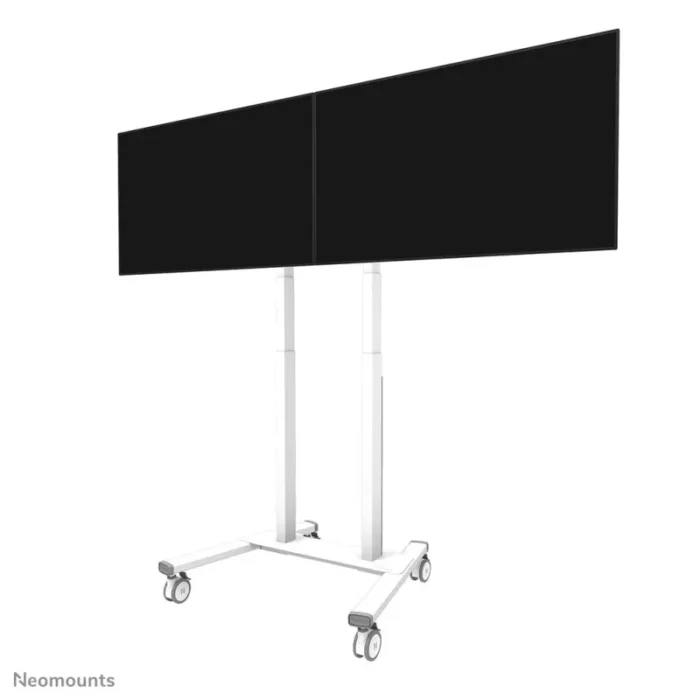

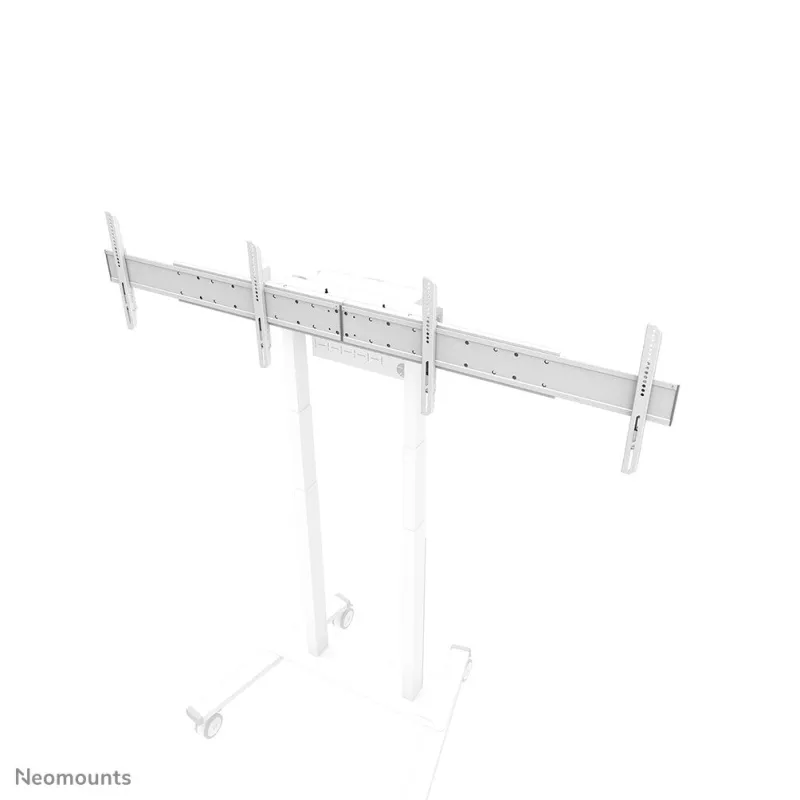

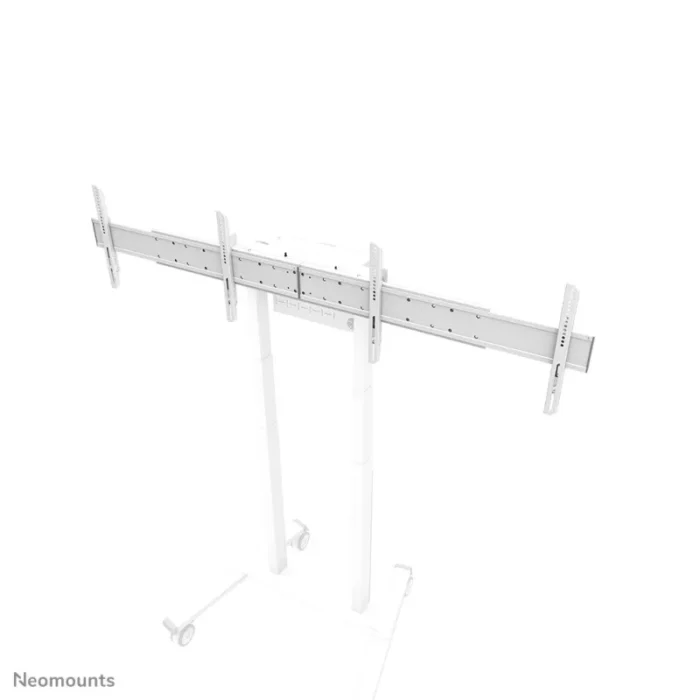

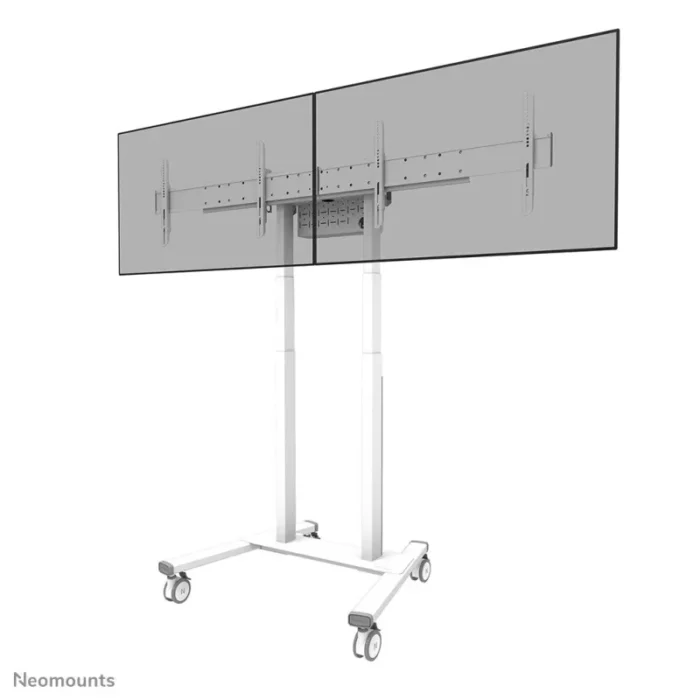

The Neomounts ADM-875WH2 is a dual screen adapter optional for the FL55-875WH1 mobile floor stand and WL55-875WH1 wall stand. The adapter allows the installation of 2 screens from 42″ up to 65″ with a maximum weight of 40 kg per screen. The height adjustable brackets ensure perfect alignments of the screens. It is possible to lock these brackets, using a padlock (not included). It is also possible to install a XXL display up to VESA 2000×600 mm and max 80 kg.
The optional AFL-875WH1 videobar & multimedia kit can be used in combination with the dual screen adapter without any problem.
| Features | |
|---|---|
| Minimum screen size | 106.7 cm (42″) |
| Maximum screen size | 165.1 cm (65″) |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Cable management | No |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400 |
| Lockable | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 – 10 mm |
| Maximum weight capacity | 40 kg |
| Maximum weight capacity (per display) | 40 kg |
| Number of displays supported | 2 |
| Material | Steel |
| Product colour | White |
| Type | Mounting bar |
| Weight & dimensions | |
|---|---|
| Weight | 10.4 kg |
| Height | 650 mm |
| Depth | 59 mm |
| Width | 2130 mm |
| Packaging data | |
|---|---|
| Package weight | 12.2 kg |
| Package height | 1010 mm |
| Package depth | 72 mm |
| Package width | 213 mm |
| Packaging content | |
|---|---|
| Padlock included | No |
| Other features | |
|---|---|
| Country of origin | China |
| Warranty period | 5 year(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 50 pc(s) |
| Harmonized System (HS) code | 7326909890 |
