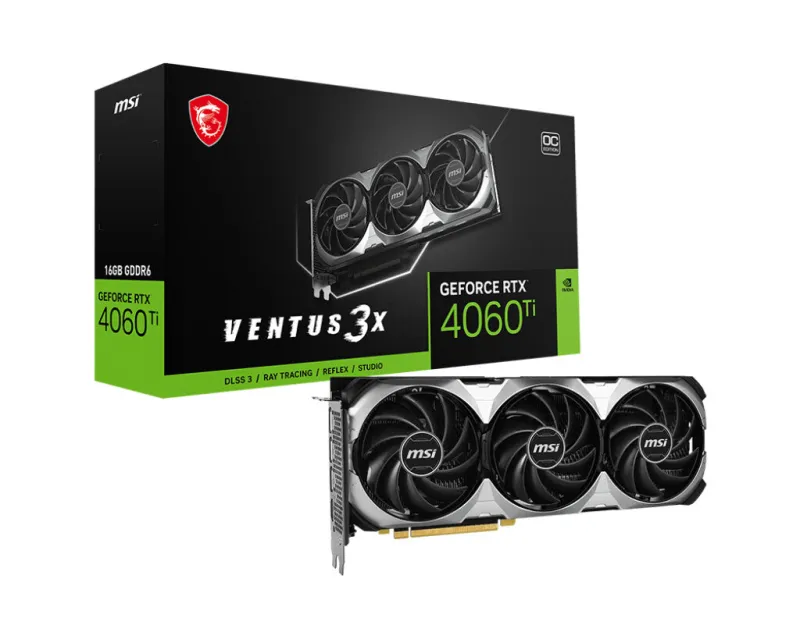

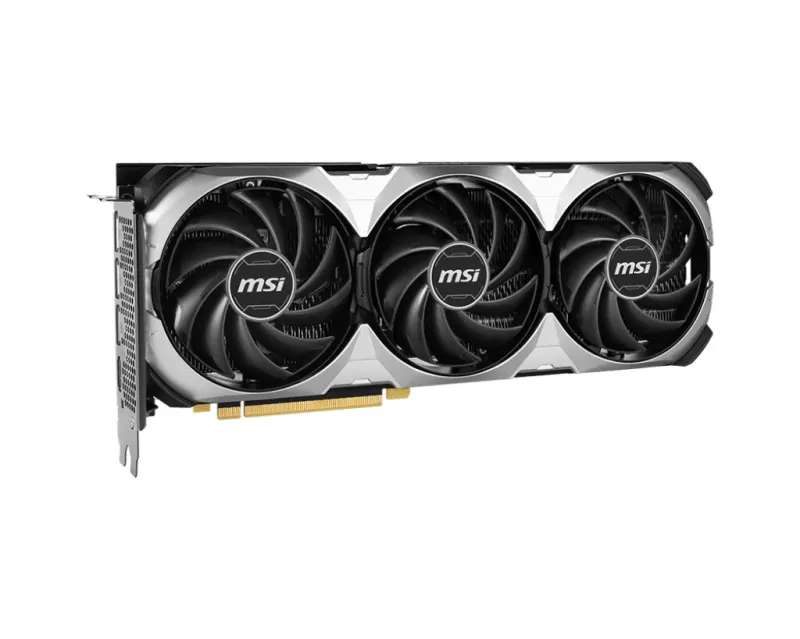

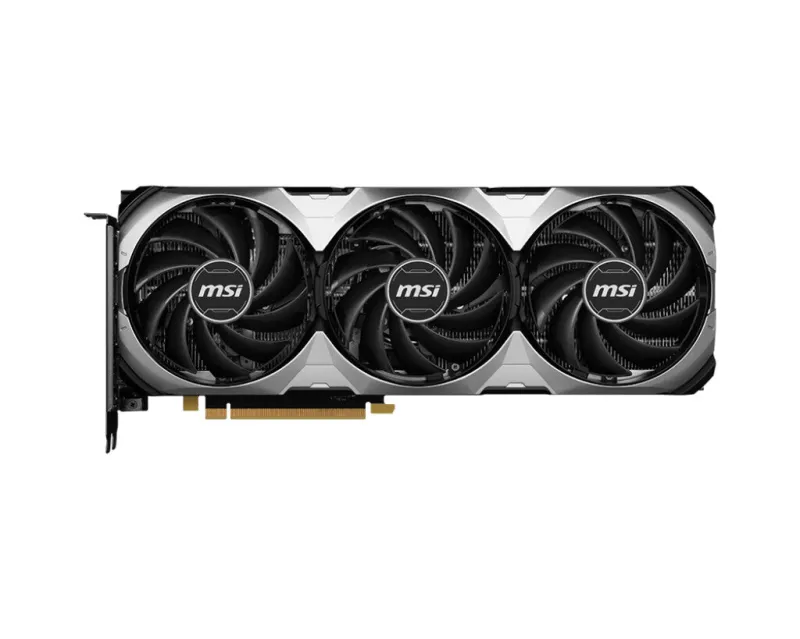

MSI VENTUS GEFORCE RTX 4060 TI 3X 16G OC graphics card NVIDIA 16 GB GDDR6
- 2610 MHz / 18 Gbps
- 16GB GDDR6
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
REVOLUTIONARY
TRIPLE-FAN THERMAL
Three fans on a huge heatsink ensures a cool and quiet experience.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BRINGING IT ALL TOGETHER
MSI’s exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2610 MHz |
| Processor frequency | 2625 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 165 W |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
|---|---|
| Height | 120 mm |
| Depth | 42 mm |
| Length | 757 mm |
| Weight | 308 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.11 kg |
| General | |
|---|---|
| Product family | VENTUS |
