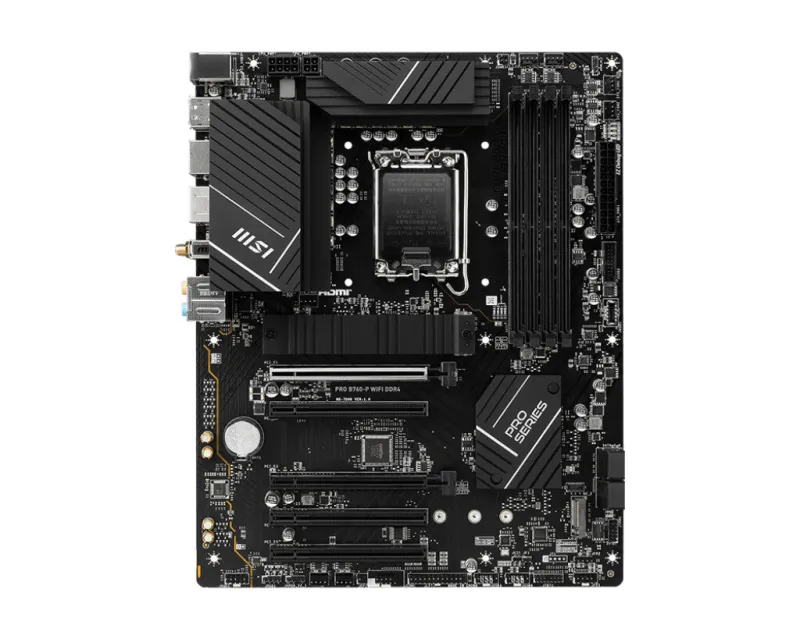

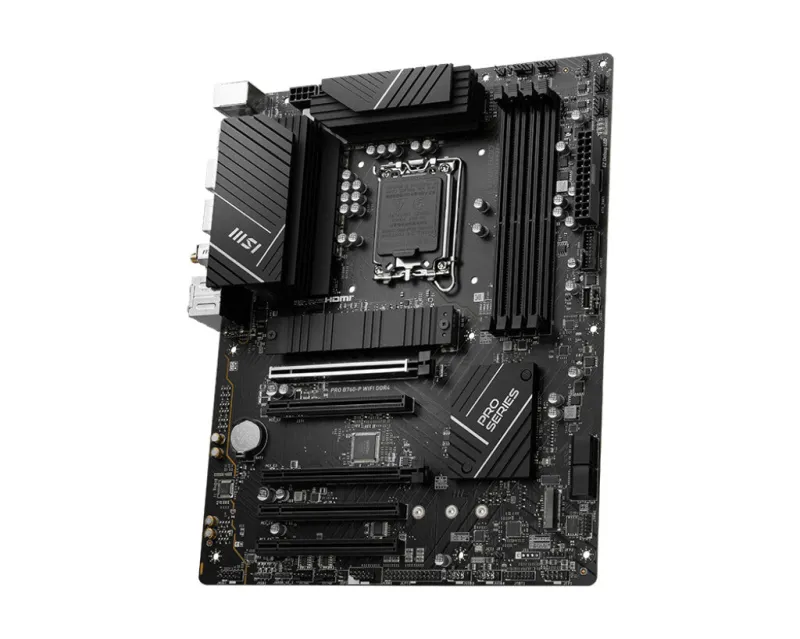

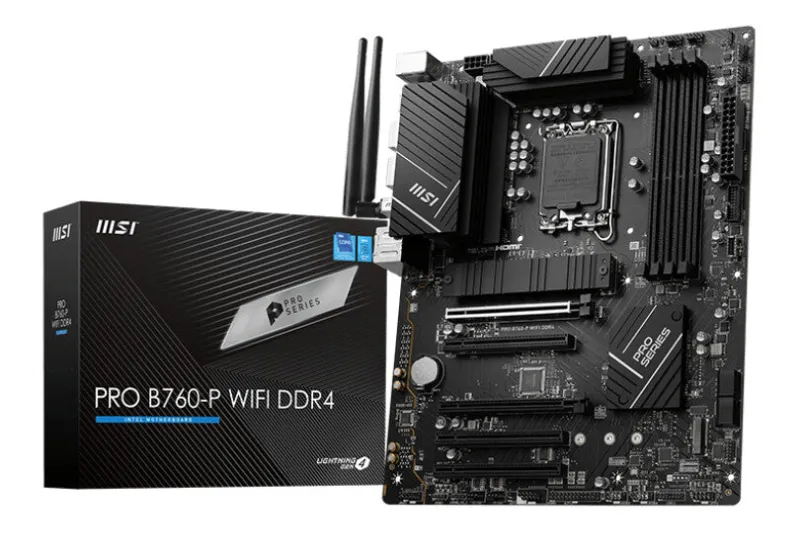

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10G
Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 2.0 connectors | 4 |
| Rear panel I/O ports | |
|---|---|
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 5 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.5 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 304.8 mm |
| Width | 243.8 mm |
