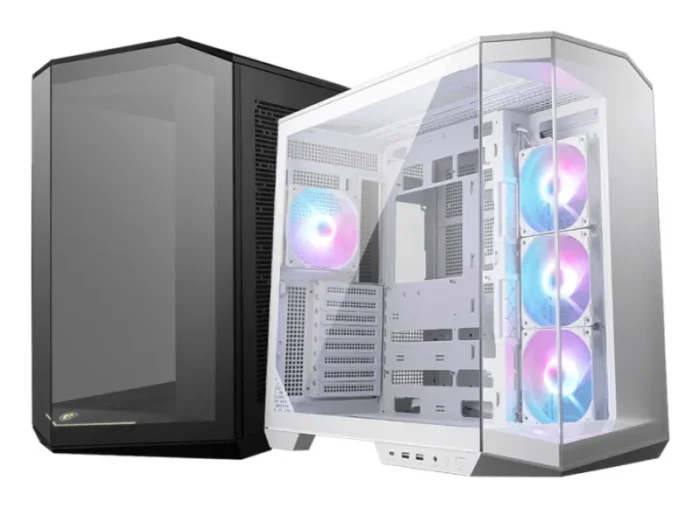

MSI MAG PANO 100R PZ Midi Tower White
- Supported ATX and Micro-ATX Back-connect motherboard
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass
- Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear
- 1-to-4 ARGB-Fan control board
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission
- Removable dust filter at the top, side and bottom being easily removed for cleaning
- UNI front panel cable make your DIY process easier and create more possibilities to your system
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn’t just about performance; it’s a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.
To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.
Chamfering Technique
Each piece of 4 mm tempered glass is cut at an angle to minimize every edge gap to make case appearance look more beautiful.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
At the side, supports the flexibility of mounting radiator in a push-pull configuration or the thicker radiator and fans.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
Removable panel design
The front, side and top panels are tool-free to remove, when installing side fans and radiators, there are no obstacles to hinder your progress.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 38 cm |
| Maximum CPU cooler height | 16.6 cm |
| LED indicators | Yes |
| On/off button | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of 2.5″ bays | 3 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Product colour | White |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply location | Bottom |
| Power supply included | Yes |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Display | |
|---|---|
| Built-in display | No |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Side radiator sizes supported | 120,240,360 mm |
| Bottom fans diameters supported | 120,140,160 mm |
| Number of bottom fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Side fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 3 |
| Side fans installed | 3x 120 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| General | |
|---|---|
| Product family | MAG |
| Product series | Pano |
| Packaging content | |
|---|---|
| VESA mounting | No |
| Weight & dimensions | |
|---|---|
| Height | 482 mm |
| Depth | 518.7 mm |
| Width | 290 mm |
