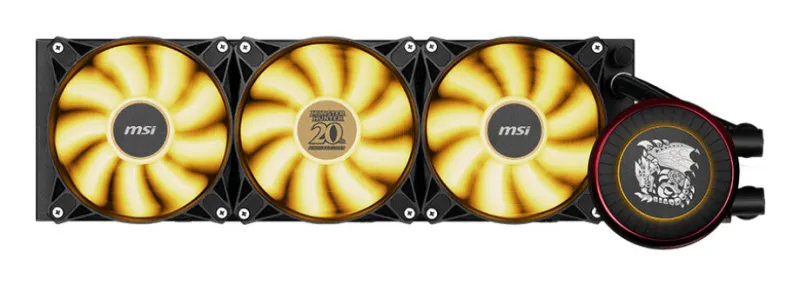

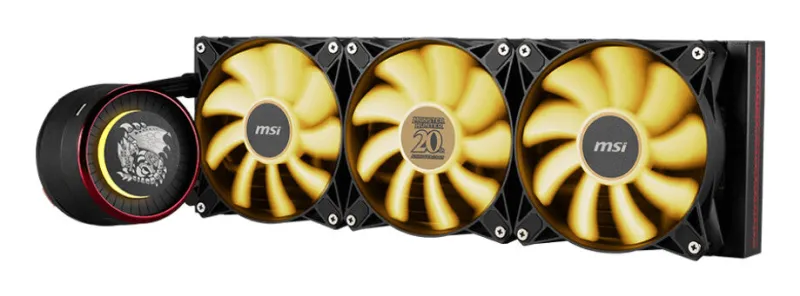

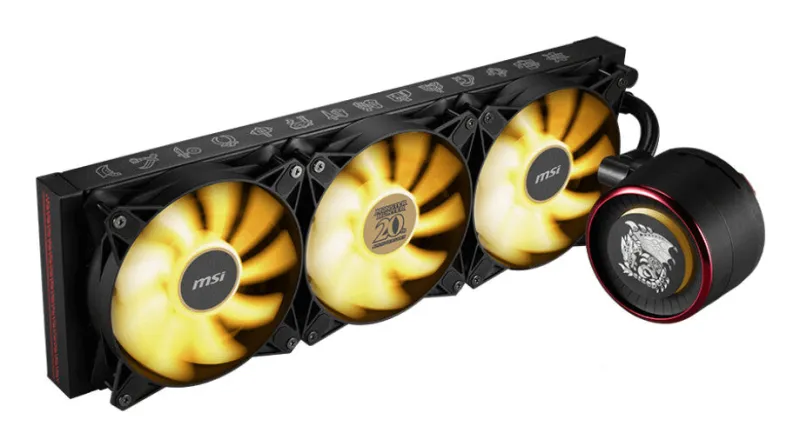

MSI MAG Coreliquid E360 Motherboard, Processor Liquid cooling kit 12 cm Multicolour 1 pc(s)
- The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation
- Maximize micro-channels to dissipate heat efficiently
- Rotatable water block cap for 270-degree
- ARGB fan can change the lighting by MSI center
- Enhanced fan performance to dissipate heat quickly
- Durable three phase motor of the pump generates minimal vibrations for long-lasting operation
- Spilt pathway through the radiator rapidly dissipates heat
PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.
Achieve Full CPU Coverage
By enlarging the contact area between the water channel and the copper base of the waterblock, the MAG CORELIQUID E360 MONSTER HUNTER EDITION maximizes heat dissipation from your CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HEAT THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat
EVAPORATION PROOF TUBING
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
| Performance | |
|---|---|
| Pump’s mean time to failure (MTTF) | 200000 h |
| Pump motor speed | 3000 RPM |
| Pump motor speed (max) | 3000 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 20 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum airflow | 75.04 cfm |
| Minimum airflow (imperial) | 25.5 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTR4 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Motherboard, Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminum |
| Product colour | Multicolour |
| Power | |
|---|---|
| Pump current | 0.25 mA |
| Pump power consumption | 4.8 W |
| Fan power consumption | 3 W |
| Weight & dimensions | |
|---|---|
| Cable length | 500 m |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator height | 2.7 cm |
| Radiator depth | 11.9 cm |
| Radiator width | 39.4 cm |
