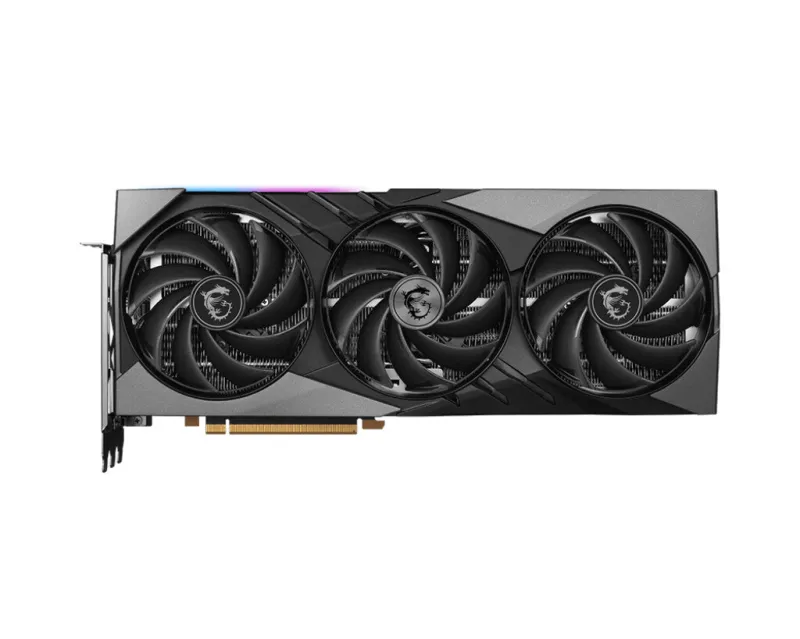

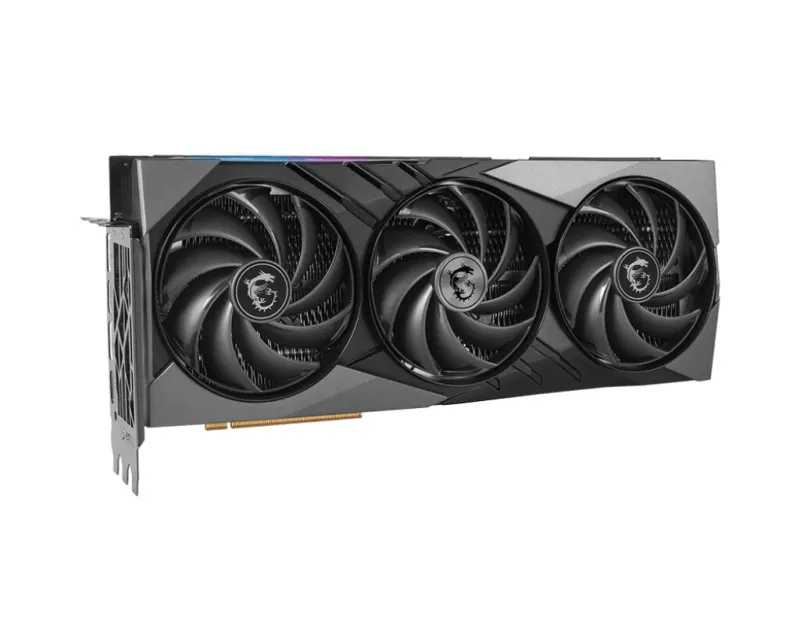

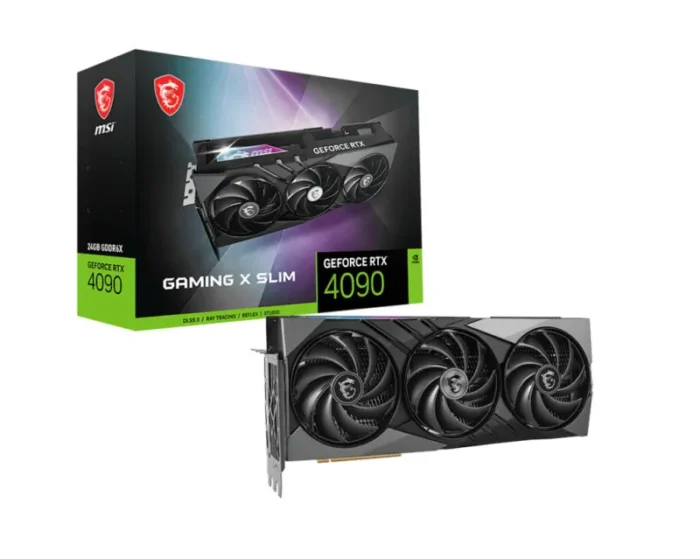

MSI GAMING GEFORCE RTX 4090 X SLIM 24G graphics card NVIDIA 24 GB GDDR6X
- 2595 MHz (GAMING & SILENT Mode) / 21 Gbps
- 24GB GDDR6X
- DisplayPort x 2 (v1.4a)
- HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling
Gaming Unbound
GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
HASSLE-FREE COMPATIBILITY
Lightened design is made for those building a gaming rig with space constraints.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING
A large airflow vent on the backplate allows exhaust air to pass through directly.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2595 MHz |
| CUDA cores | 16384 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4090 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | MSI TORX FAN 5.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 450 W |
| Power consumption (typical) | 450 W |
| Minimum system power supply | 850 W |
| Weight & dimensions | |
|---|---|
| Height | 136 mm |
| Depth | 62 mm |
| Length | 322 mm |
| Weight | 1.78 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.65 kg |
| General | |
|---|---|
| Product family | GAMING |
- leaflet
