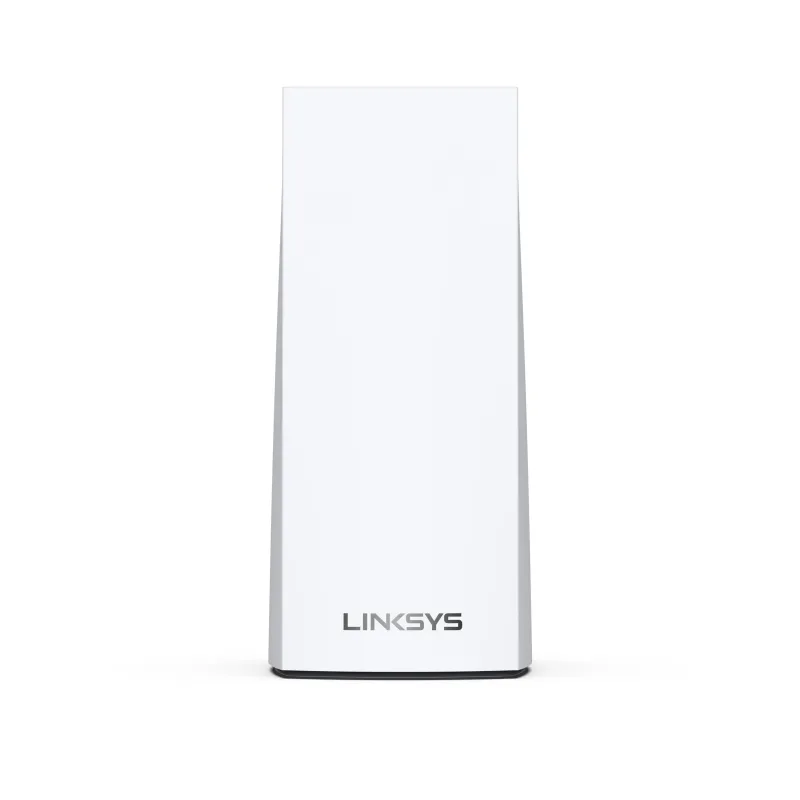

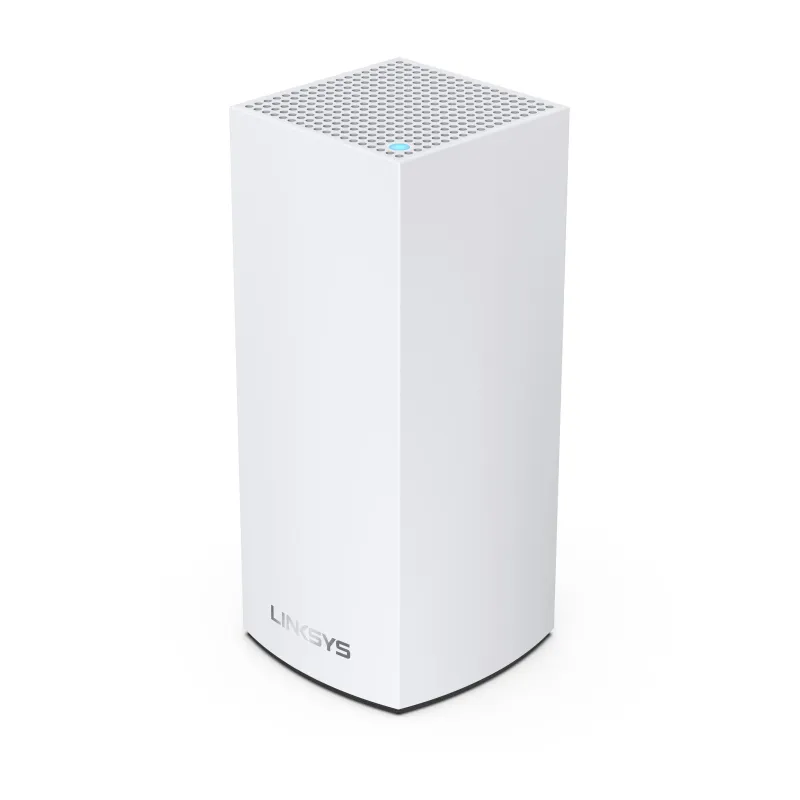

Linksys AX5400 Whole Home Mesh WiFi 6 Dual‑Band System, 1-pack
- Enjoy 3,5X faster speeds than WiFi 5, with WiFi 6 technology delivering true gigabit speeds throughout your home, up to 5.4 Gbps with 6-stream connectivity
- WiFi 6 (802.11ax) delivers even more range than WiFi 5
- Modular system can be scaled with your growing WiFi needs
- Intuitive easy App-led setup
- Works with all modems and ISPs, and is 100% backward compatible with WiFi 5 and older devices
A better WiFi has arrived
Simultaneous video calls, gaming and high-speed data capacity
Linksys Atlas Pro 6 with Velop Intelligent Mesh is a dual-band WiFi 6 system that simultaneously delivers next-level streaming, gaming and uninterrupted video calls to more than 30 devices per node. Access to 160 MHz unleashes the true power of WiFi 6 technology—these are the least congested channels available on the 5GHz band and offer incredibly fast connectivity.
Dynamic Frequency Selection (DFS) provides access to more channels, reducing interference from neighboring networks. Velop Intelligent Mesh technology offers whole home mesh WiFi coverage that’s easily expandable by adding additional nodes. With easy setup, advanced security and parental controls, Linksys Atlas Pro 6 is an essential upgrade to any home.
WiFi 6 Offers 4x More Capacity
Mesh WiFi 6 delivers true gigabit speeds—up to 5.4 Gbps with 6-stream connectivity—throughout your entire home inside & out.
160 MHz Capable
Access to 160 MHz channels—the least congested on the 5GHz band—unleashes WiFi 6’s incredibly fast connectivity, allowing work from-home, online learning, streaming & gaming devices to operate simultaneously without reduced bandwidth.
More WiFi Channels
Dynamic Frequency Selection (DFS) reduces interference from neighboring networks.
Industry-Leading Technology
The Qualcomm™ Immersive Home 216 Platform transforms home & business WiFi to wired-like stability and speed.
Easy Setup and Control
It’s simple to set up and lets you manage your network or prioritise devices from anywhere, all with the free Linksys app.
Easy App-led setup
Setting up the Linksys Atlas Pro 6 is easy. Download and install the free Linksys app on any iOS or Android smartphone. When you launch the app, it automatically identifies the device to be set up and provides an animated setup guide that will have you online in minutes.
With the Linksys App, you can always monitor and manage your home WiFi from anywhere, using a smartphone or tablet.
A modular and easy-to-add-on system delivering coverage for any home & lifestyle.
The Atlas Pro 6 easy-to-add-on modular system of nodes all working together to give you flawless and seamless WiFi everywhere and easily replaces a standard router with a Mesh WiFi network. As your home and family expands, easily add more nodes to expand your network. Each Atlas Pro 6 AX5400, Dual-Band node adds 2 to 3 rooms of coverage or 1 floor, at speeds of up to 5.4 Gbps
Control your WiFi in real time, wherever you are
The Linksys app is the command center for your WiFi. Use the Linksys app anywhere you have an internet connection to check connected devices, set up guest access, or keep your kids off the internet when they should be doing homework.
Linksys App at a glance
– View which devices are connected, and easily limit internet usage with Parental Controls.
– Assign bandwidth hierarchy with Device Prioritisation.
– Keep your WiFi secure with Automatic Firmware updates.
– Give guests access and share their password via text message.
Essential Features
Parental Control
Create device schedules, block certain websites or pause WiFi for homework.
Guest Access
Easily share a guest network with visitors. Your main WiFi stays separated by a firewall.
Device Prioritisation
Prioritise streaming devices while your kids surf or play games.
Auto Firmware Update
Keep your WiFi safe and secure with Automatic Firmware updates.
| Design | |
|---|---|
| Maximum coverage | 251 m² |
| Antennas quantity | 5 |
| Antenna type | Internal |
| LED indicators | Yes |
| Product type | Mesh router |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Security algorithms | 128-bit AES, WPA2, WPA3 |
| WLAN data transfer rate (second band) | 4800 Mbit/s |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Firmware upgradeable via | Network |
| Mobile operating systems supported | Android, iOS |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor cores | 2 |
| Processor frequency | 1 GHz |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
|---|---|
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 80% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 185.5 mm |
| Depth | 86 mm |
| Width | 86 mm |
| Packaging content | |
|---|---|
| Number of units included | 1 pc(s) |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
| Packaging data | |
|---|---|
| Package height | 245 mm |
| Package depth | 103 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
