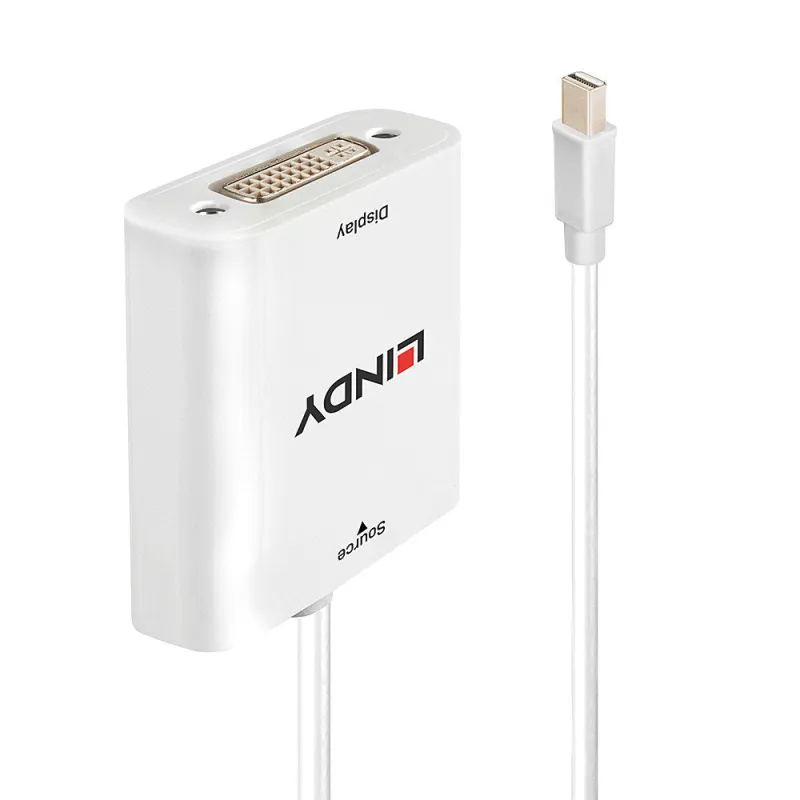

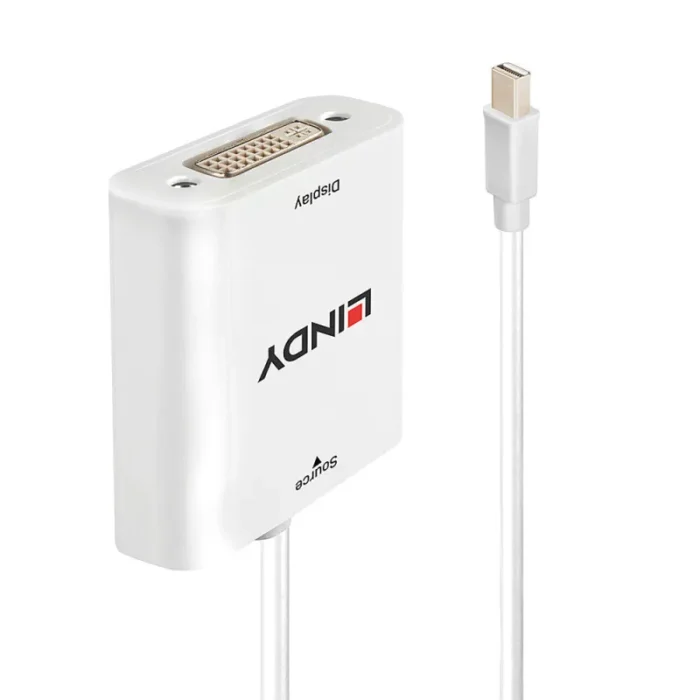

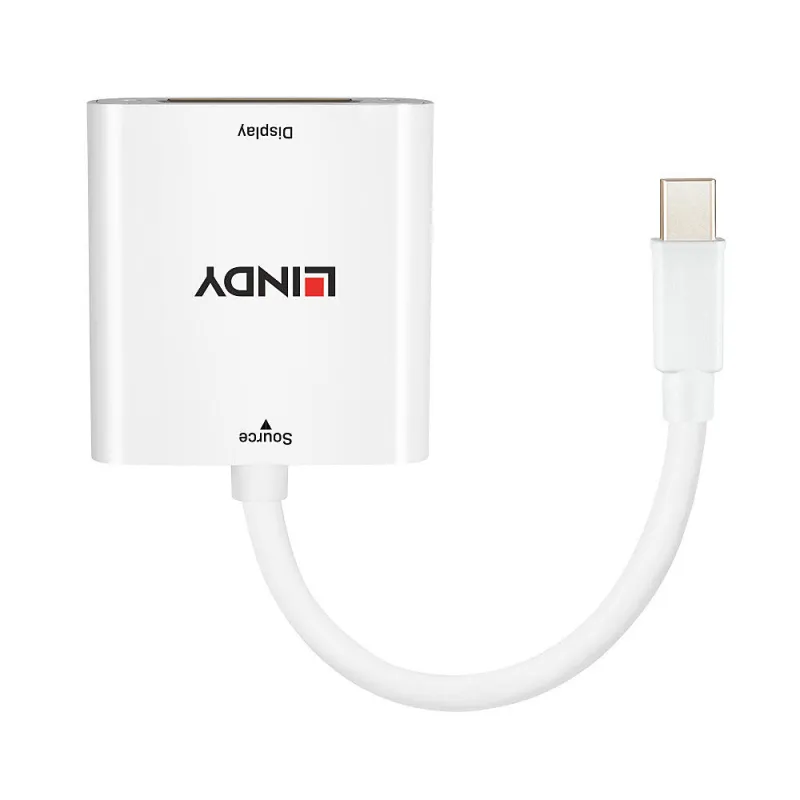

Lindy Mini DisplayPort to DVI Converter
- Connects a Mini DisplayPort equipped PC, Mac or laptop to a DVI display
- Supports resolutions up to 1920×1200
- Add a DVI monitor as a secondary display
- Compact, portable design, perfect for travel and field based use
- 2 Year Warranty
The Lindy MiniDP to DVI Converter allows a DVI display to be connected to a Mini DisplayPort equipped source device such as a notebook, laptop or mDP PC. Supporting resolutions up to 1920×1200, content can be viewed in and above, high quality Full HD, perfect for showing the optimum quality possible of a DVI display.
Internal copper shielding provides enhanced reliability and compatibility. This converter is a perfect tool for flexible working in different environments, whether it’s in the office, travelling to hold presentations or in the home, due to its compact, lightweight form factor.
Please note: To use this passive converter, the source device must support dual-mode DisplayPort (also known as DP++).
| Features |
| Jacket material |
Polyvinyl chloride (PVC) |
| Chipset |
NXP PTN3361BBS |
| Product colour |
White |
| Data transfer rate |
4.45 Gbit/s |
| Maximum resolution |
1920 x 1080 pixels |
| DisplayPort version |
1.1 |
| HDCP version |
1.4 |
| HDCP |
Yes |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Female |
| Connector 2 |
Mini DisplayPort |
| Connector 1 |
DVI-I |
| Cable length |
0.1 m |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage temperature (T-T) |
-10 – 80 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Certificates |
| Certification |
CE, FCC, REACH, Calif. Prop. 65 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height |
14.6 mm |
| Depth |
46.3 mm |
| Width |
45 mm |
| Weight |
26 g |
| Packaging data |
| Package type |
Polybag |
| Package weight |
38 g |
| Package height |
20 mm |
| Package depth |
194 mm |
| Package width |
176 mm |
