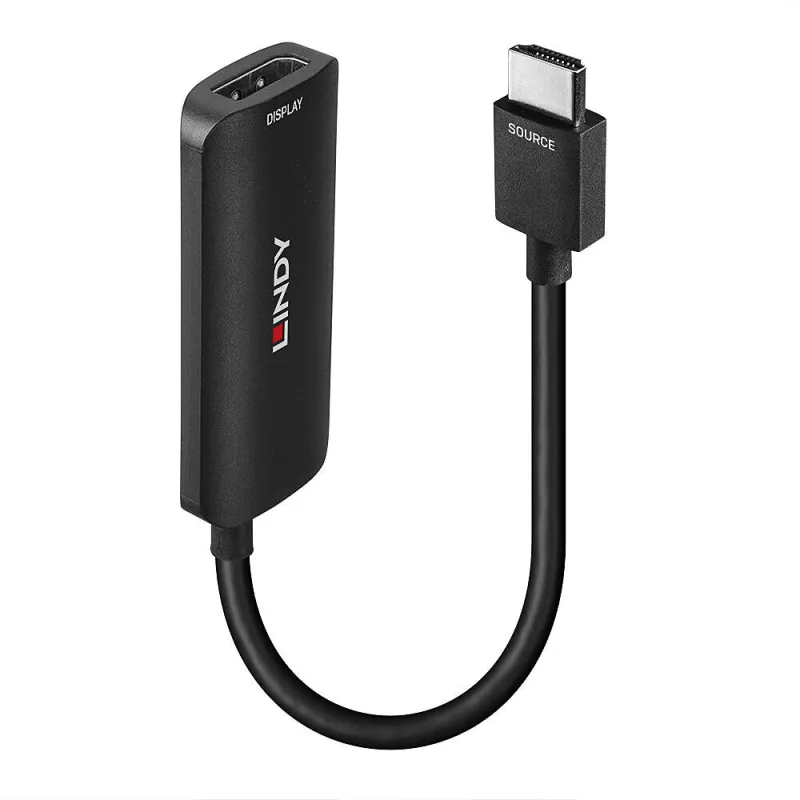

Lindy HDMI 4K60 to DisplayPort 1.2 Converter
- Connects an HDMI source to a DP display
- Supports resolutions up to 4K UHD 3840×2160@60Hz
- Enclosed USB cable for power supply
- High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut
- 2 year warranty
A converter allows devices which use different interfaces e.g. HDMI and DVI to connect to one another by converting one signal to the other.
The Lindy HDMI 4K60 to DisplayPort 1.2 Converter allows the connection of HDMI source devices, such as a PC, Blu-ray player or media player to DisplayPort monitors digital signage and LFDs (Large Format Displays). Supporting resolutions up to 3840×2160@60Hz 4:4:4 8bit, this converter ensures superior clarity content within innovative workspaces, engaging collaboration environments and educational setups. Immersive multi-channel audio is supported up to 7.1CH to compliment the video on screen.
For added convenience the converter features a USB power cable, allowing the converter to be externally powered when used with low power HDMI sources. The converter can also be used to add an additional display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
| Features | |
|---|---|
| Colour sampling | 4:4:4 |
| Colour depth | 8 bit |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable type | Round cable |
| Jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Chipset | LT6711A |
| Product colour | Black |
| Bend radius (min) | 2.5 cm |
| Maximum refresh rate | 60 Hz |
| Refresh rate at maximum resolution | 60 Hz |
| Data transfer rate | 21.6 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| Power source | USB |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 157 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 70% |
| Storage temperature (T-T) | -20 – 45 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 50 g |
| Connector 2 dimensions (WxDxH) | 71 x 12 x 31 mm |
| Connector 1 dimensions (WxDxH) | 30 x 8 x 17 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Package weight | 60 g |
| Package height | 20 mm |
| Package depth | 194 mm |
| Package width | 174 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
- CE Declaration of Conformity
