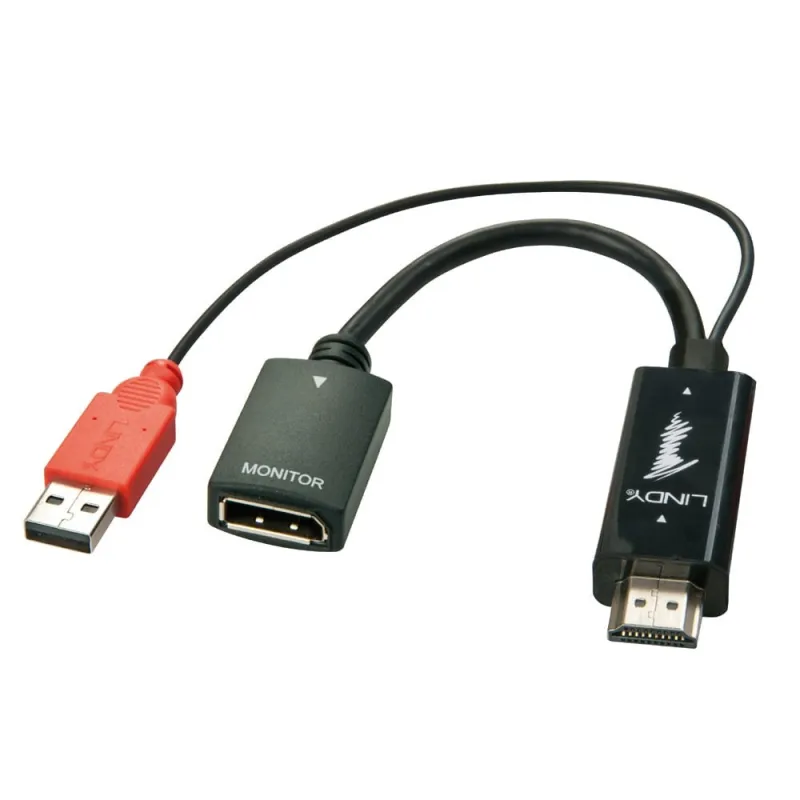

Lindy HDMI 1.4 to DisplayPort 1.2 Converter with USB Power
- 0.1 m
- HDMI Type A (Standard) Straight Male
- DisplayPort Straight Female
- 3840 x 2160 pixels 60 Hz
- Black, Red
- 1 pc(s)
This compact unit accepts audio & video signals via an HDMI or DVI input and converts them into a DisplayPort signal. This allows HDMI or DVI devices such as a PC, bluray player or Sky HD box to be connected to a high resolution monitor. For added convenience the Converter features a USB power cable, allowing it to be externally powered when used with a low power interface such as Intel HD4000.
The available resolutions depend on the EDID of the DisplayPort monitor, however resolutions such as 2560×1600/1440p as commonly found on 30″ Monitors are not supported.
– Converts an HDMI signal to DisplayPort
– Supports Ultra HD 4K 30Hz and Full HD 1080p/1200p 60Hz
– Integrated USB Power cable
– Plug & Play – simple to install and use
– 2 Year Warranty
| Features |
| Converter type |
Passive video converter |
| Plug and Play |
Yes |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Jacket material |
Polyvinyl chloride (PVC) |
| Product colour |
Black, Red |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes |
1080p, 2160p |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Power source |
USB |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
0.1 m |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 95% |
| Storage temperature (T-T) |
0 – 70 °C |
| Operating temperature (T-T) |
-20 – 85 °C |
| Certificates |
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| Packaging data |
| Package weight |
46 g |
| Package height |
20 mm |
| Package depth |
160 mm |
| Package width |
160 mm |
| Packaging content |
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Other features |
| Supported resolutions |
1920 x 10801920 x 12003840 x 2160 |
