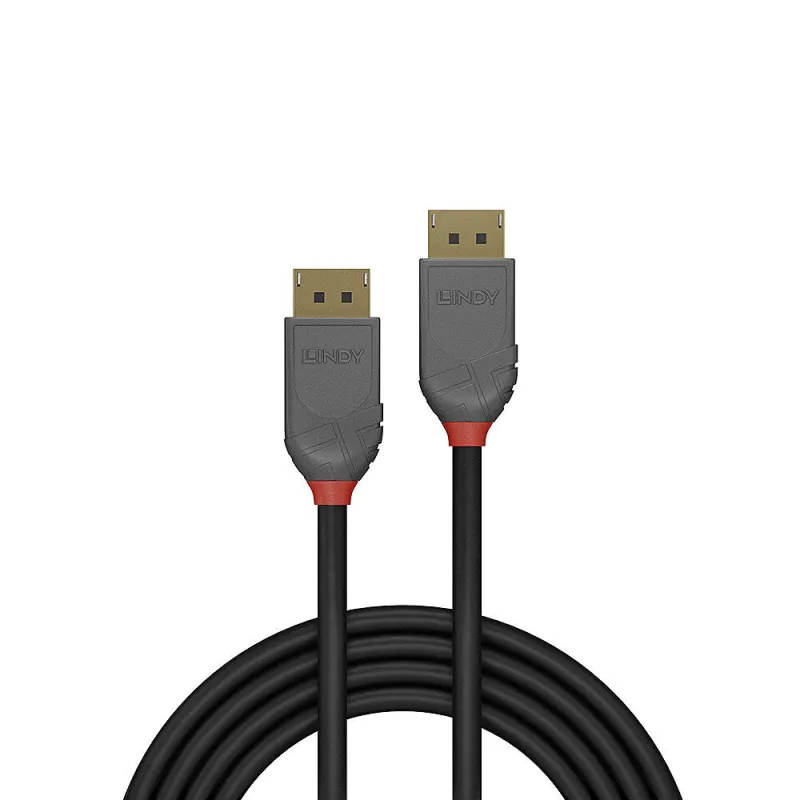

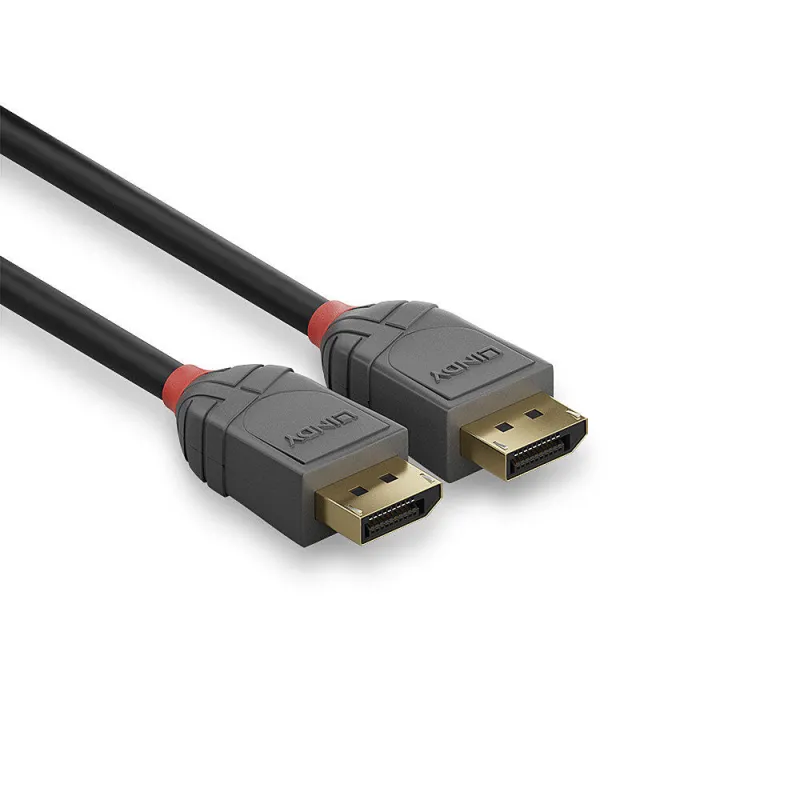

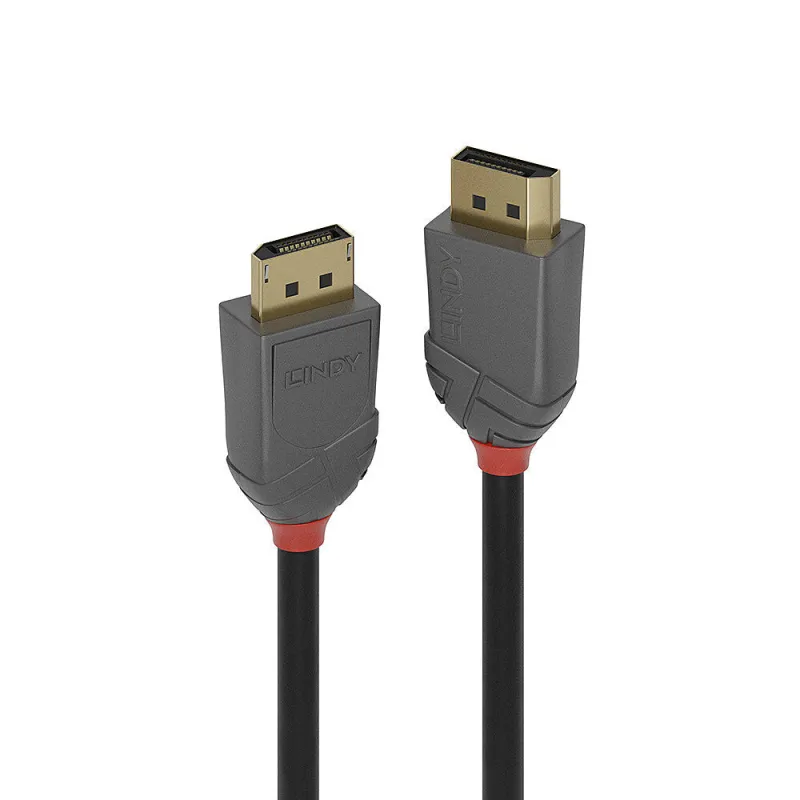

Lindy 5m DisplayPort 1.4 Cable, Anthra Line
- Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 4K 4096×2160@120Hz 4:2:2 8bit
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps, 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
| Features | |
|---|---|
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Cable type | Round cable |
| Colour sampling | 4:2:2 |
| Plug and Play | Yes |
| Contact material | Phosphor bronze |
| Data transfer rate | 21.6 Gbit/s |
| AWG wire size | 28 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Copper |
| Cable material | Tinned copper |
| Product colour | Black, Grey |
| Maximum refresh rate | 120 Hz |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 5 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 – 85 °C |
| Operating temperature (T-T) | -20 – 80 °C |
| Certificates | |
|---|---|
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 5.84 cm |
| Cable diameter | 7.3 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
