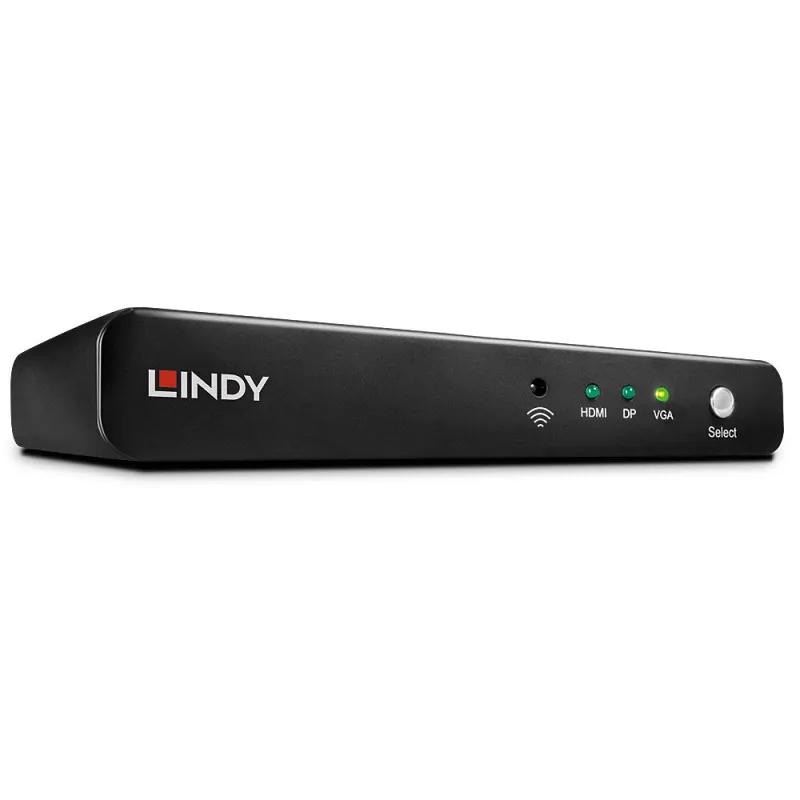

Lindy 3 Port Multi AV to HDMI Presentation Switch
- Supports direct conversion (no-scaling) of DisplayPort and VGA with Audio to HDMI
- Supports resolutions up to 4K Ultra HD 3840 x 2160p 60Hz
- Compatible with HDCP 2.2 protected content
- Switching by IR, Push Button and Auto-Sensing*
- 2 Year Warranty
Multi interface video switch for connecting various source devices to an HDMI display or projector – ideal for presentation, conference and education installations
Supports direct conversion (no-scaling) of DisplayPort and VGA with Audio to HDMI
Supports resolutions up to 4K Ultra HD 3840 x 2160p 60Hz, HDCP 2.2 compatible
Easy switching by IR, Push Button and Auto-Sensing
2 Year Warranty

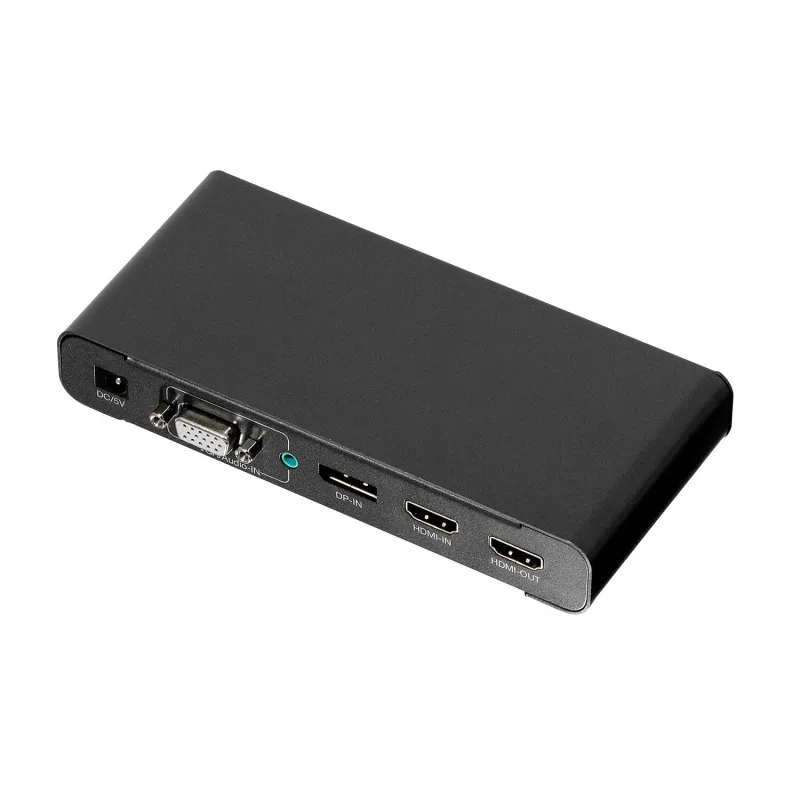

Designed to connect multiple source devices with HDMI display equipment this Presentation Switch features DisplayPort, HDMI and VGA inputs, which are directly converted to HDMI at resolutions up to 4K Ultra HD, without scaling. In addition to support for 4K Ultra HD resolutions the Switch also supports HDCP 2.2 protected signals and both DTS and Dolby Digital audio pass-through making it suitable for both PC and AV applications.

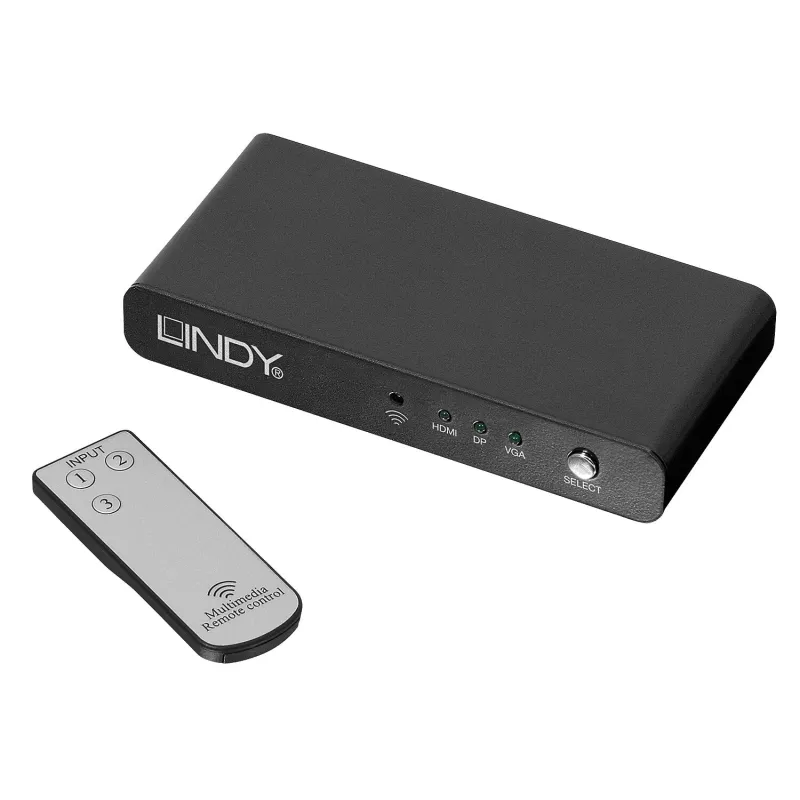

Switching between the connected source devices can be completed using the Presentation Switch’s Auto-Sensing function which automatically switches to a newly connected/powered on device, via the front panel push buttons or using the supplied IR remote control. IR codes are also provided to enable integration of the switch within a larger AV installation. The switch is supplied with mounting brackets which allow it to be conveniently installed according to the installation environment.
The Presentation Switch is an ideal addition to any meeting or conference room, lecture hall or auditorium. For added flexibility the Switch can be used with LINDY’s range of HDMI Extenders, to reach remote displays and projectors.
Please Note: Using the auto-sensing switching feature with the DisplayPort input requires the use of the supplied all pins connected 20 Pin DisplayPort cable between the source PC or Notebook and the switch.
| Features | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Width | 155 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
