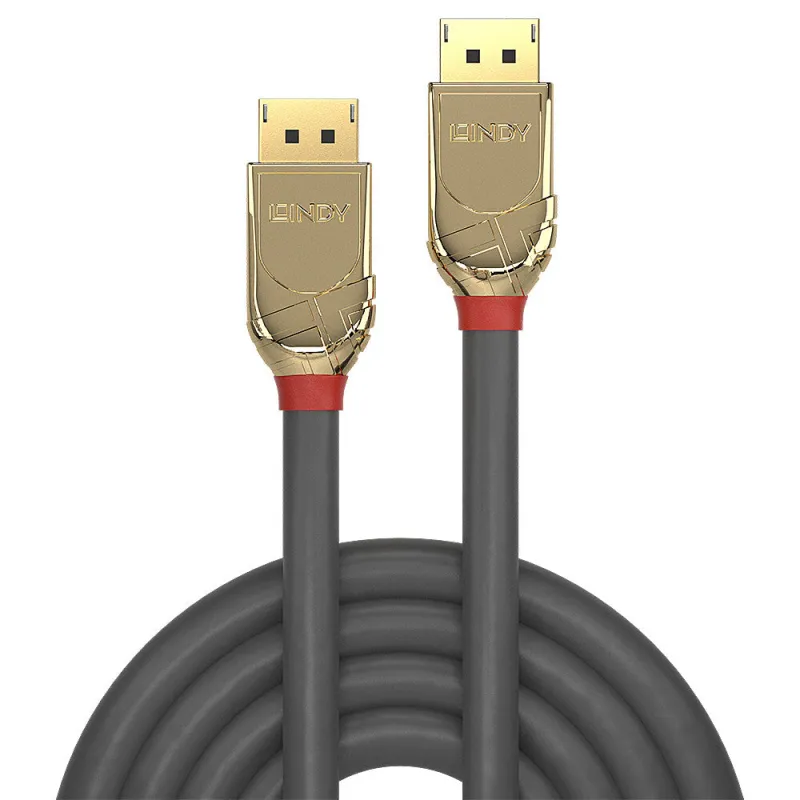

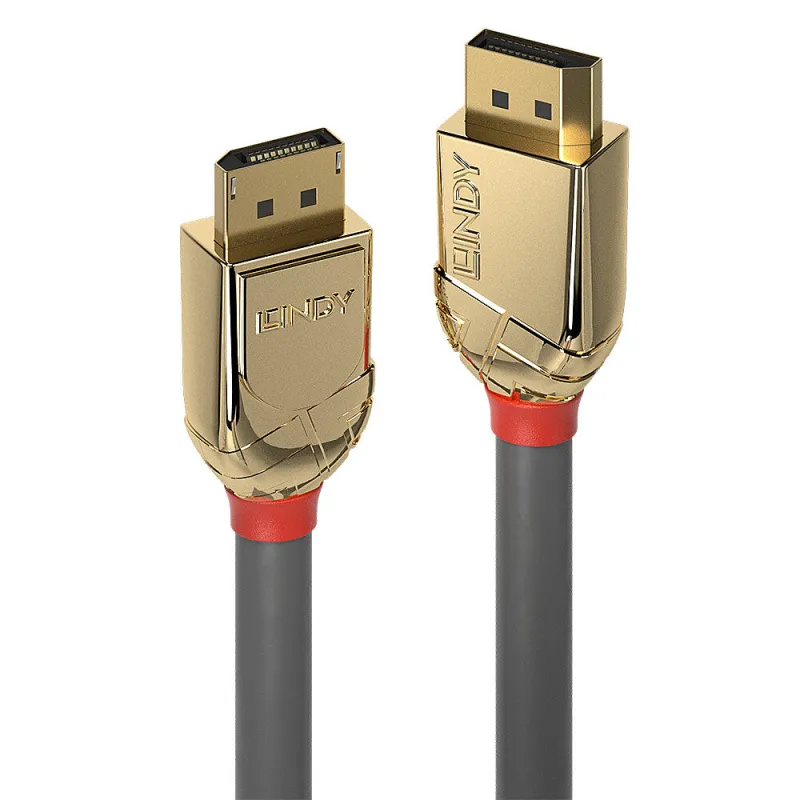

Lindy 20m DisplayPort 1.2 Cable, Gold Line
- No compromise, ultimate performance DisplayPort cable for demanding environments and mission critical systems
- Supports UHD resolutions up to 4096×2160@30Hz 4:4:4 8bit

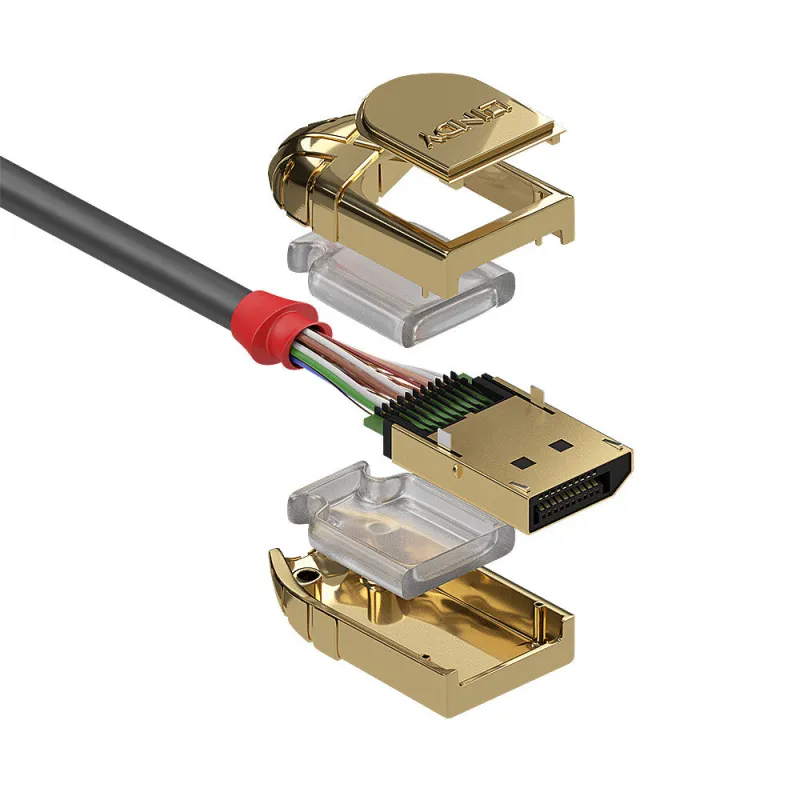

- Full metal 24K gold plated housing, 24K gold plated connectors and contacts
- Low attenuation triple shielded cable, corrosion resistant, high performance OFC 24AWG conductors
- DisplayPort 1.2 compliant: 3D, 4K, 10.8Gbps, DisplayPort Certified; 25 year warranty
From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096×2160@30Hz 4:4:4 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
Gold DisplayPort cables are available in lengths from 0.5m to 20m.
| Features | |
|---|---|
| Data transfer rate | 10.8 Gbit/s |
| AWG wire size | 24 |
| Jacket material | Polyvinyl chloride (PVC) |
| Product colour | Grey |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 20 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 – 80 °C |
| Operating temperature (T-T) | -20 – 80 °C |
| Certificates | |
|---|---|
| Certification | REACH, UL |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
