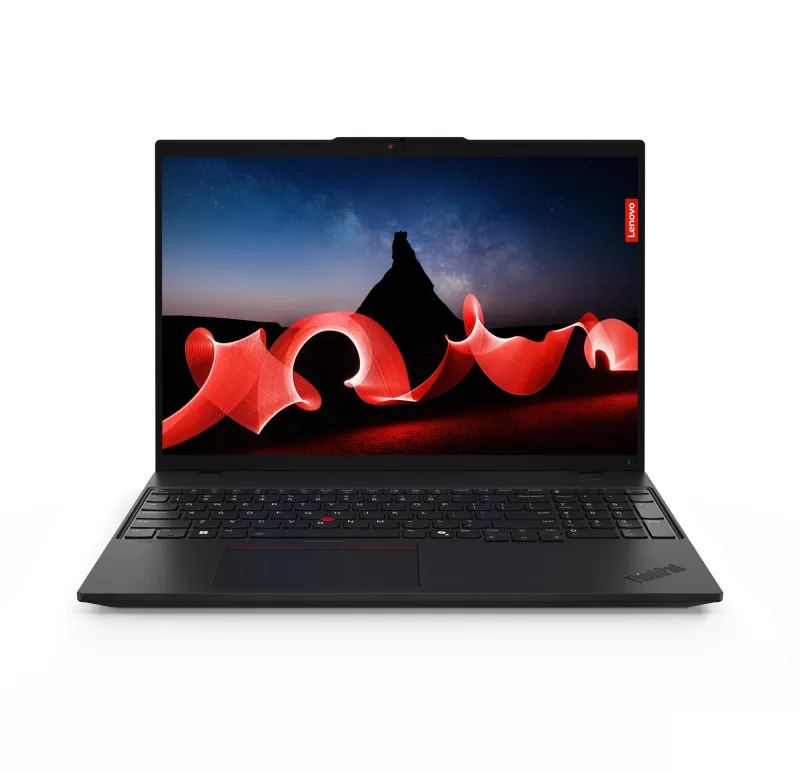

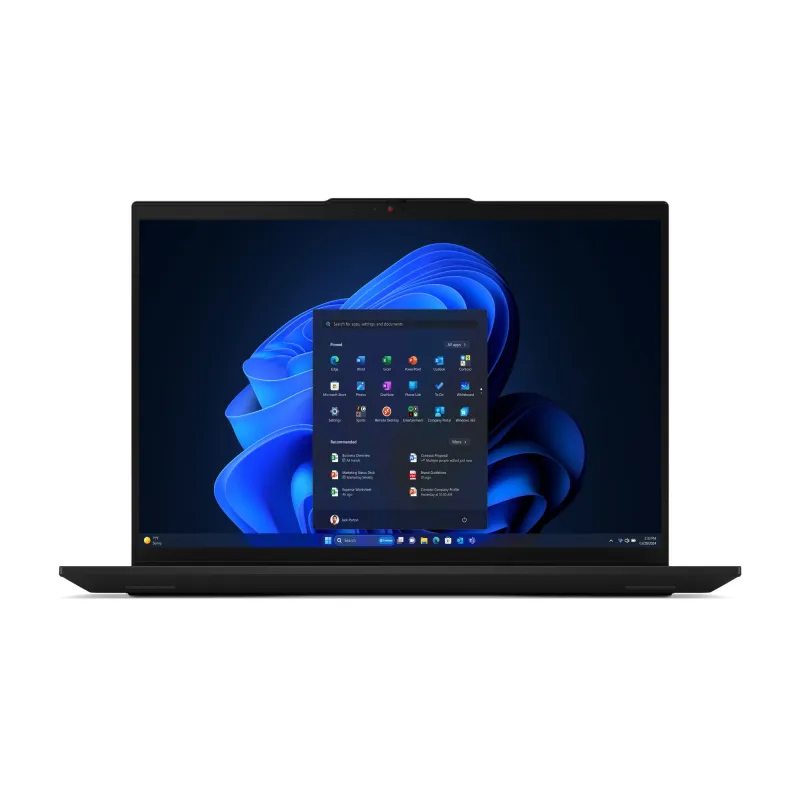

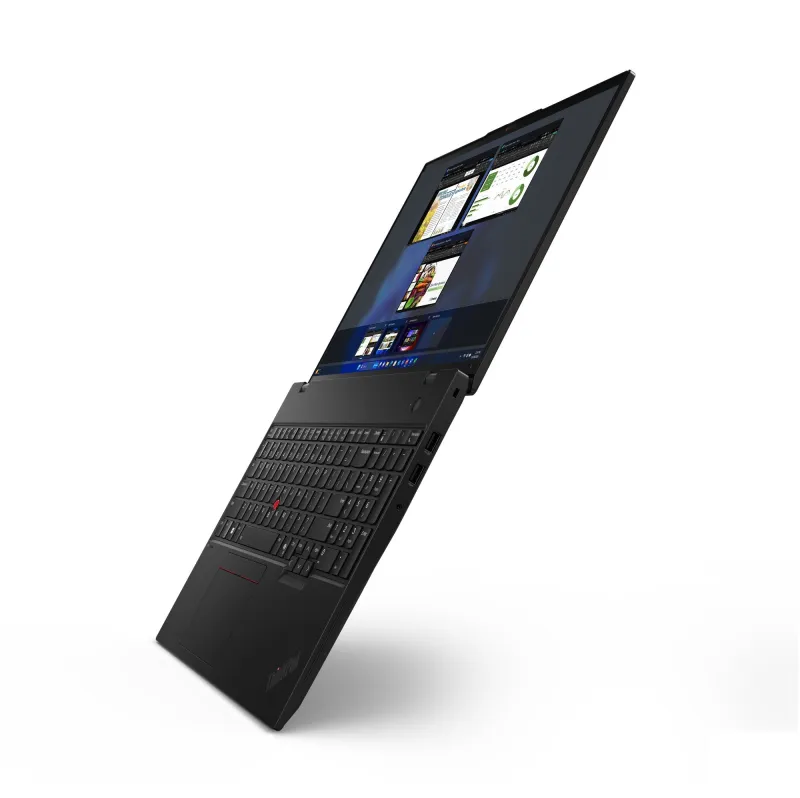

Lenovo ThinkPad L16 Gen 1 (AMD) AMD Ryzen™ 5 PRO 7535U Laptop 40.6 cm (16″) WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black
- AMD Ryzen 5 PRO 7535U (6C/12T, 2.9/4.55GHz, 3MB L2/16MB L3)
- 16″ WUXGA (1920×1200) IPS 300nits 45% NTSC
- 1x 16GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
- AMD Radeon 660M Graphics
- Windows 11 Pro
The Laptop That Keeps Power-Users Productive
– 16″ enterprise-grade laptop with expansive display options
– Seamless multitasking with plenty of storage & memory
– Powerful AMD Ryzen™ PRO 7030 Series processors
– Accessible navigation & larger TrackPad with redesigned ThinkPad keyboard
– Maximized thermal design for cool & quiet performance
– Highly customizable & easily upgradeable as your business grows
| Design |
| Housing material |
Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Form factor |
Clamshell |
| Colour name |
Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
2.9 GHz |
| Processor boost frequency |
4.55 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
7535U |
| Processor generation |
AMD Ryzen PRO 7000 Series |
| Processor family |
AMD Ryzen™ 5 PRO |
| Processor manufacturer |
AMD |
| Memory |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
4800 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon 660M |
| On-board graphics card family |
AMD Radeon |
| On-board GPU manufacturer |
AMD |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Upgradable |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller manufacturer |
Qualcomm |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 3×2 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Performance |
| Motherboard chipset |
AMD SoC |
| Keyboard |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Fast charging |
Yes |
| Battery capacity |
57 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
65 W |
| Security |
| Password protection type |
BIOS, Power on, SSD, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Certification |
ENERGY STAR 8.0EPEAT Gold RegisteredErP Lot 6ErP Lot 26RoHS compliantTCO Certified 9.0MIL-STD-810H |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, ErP, TCO |
| Weight & dimensions |
| Height |
20.8 mm |
| Depth |
253.4 mm |
| Width |
357.2 mm |
| Weight |
1.77 kg |
| General |
| Product family |
ThinkPad |
| Product series |
L |
