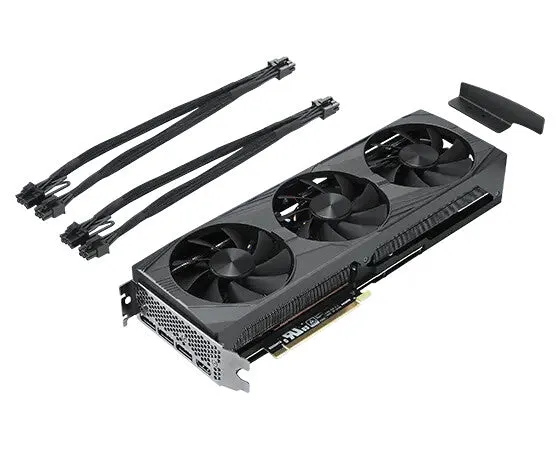

Lenovo NVIDIA GeForce RTX 3080 Intel 10 GB GDDR6X
- 8704 CUDA Cores with boost clock up to 1710 MHz
- 10GB GDDR6X memory, and up to 320 memory bandwidth, which is the world’s fastest graphics memory, enables faster framerates
- Max. Power Consumption: 320W
- 3x DisplayPort 1.4a , 1x HDMI 2.1
- NVIDIA’s Ampere architecture delivers the highest performance and performance per watt
- GeForce RTX VR By combining advanced VR rendering, real-time ray tracing, and AI, GeForce RTX will take VR to a new level of realism
The ThinkStation NVIDIA GeForce RTX3080 10GB GDDR6X Graphic Cards delivers ultra quality performance and is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing user experience.
| Processor | |
|---|---|
| Processor boost clock speed | 1710 MHz |
| Processor frequency | 1440 MHz |
| CUDA cores | 8704 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3080 |
| Graphics processor family | Intel |
| Memory | |
|---|---|
| Memory bus | 320 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 10 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| HDCP version | 2.3 |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| Design | |
|---|---|
| Certification | CB/TUV/UL/BSMI/CE/RVM/UK/VCCI/FCC/KS/KCC/UKCA/AS/EN |
| Product colour | Black |
| Number of slots | 2 |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Power consumption (max) | 320 W |
| Minimum system power supply | 750 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Weight & dimensions | |
|---|---|
| Height | 129.8 mm |
| Depth | 50.6 mm |
| Length | 279.9 mm |
| Weight | 1.4 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2 kg |
| Package height | 90 mm |
| Package depth | 220 mm |
| Package width | 485 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
| Other features | |
|---|---|
| Chipset | GA102-202-KD-A1 |
