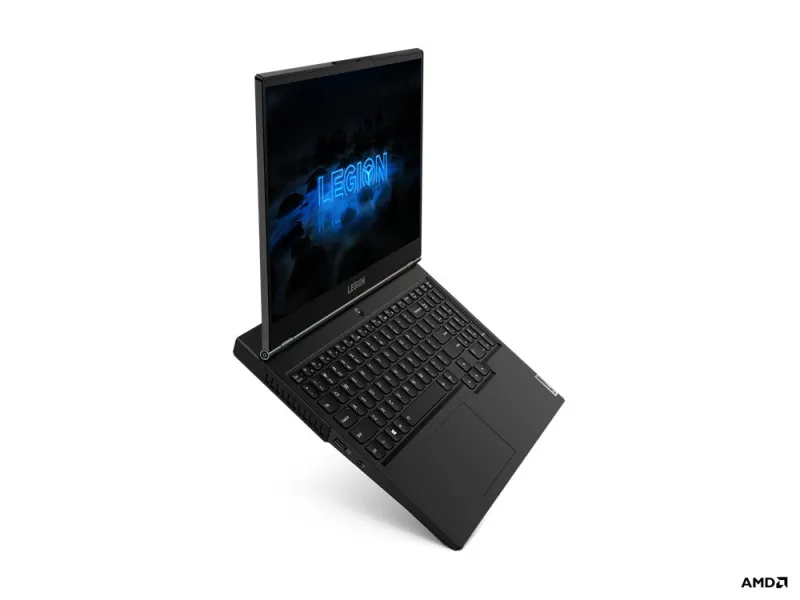

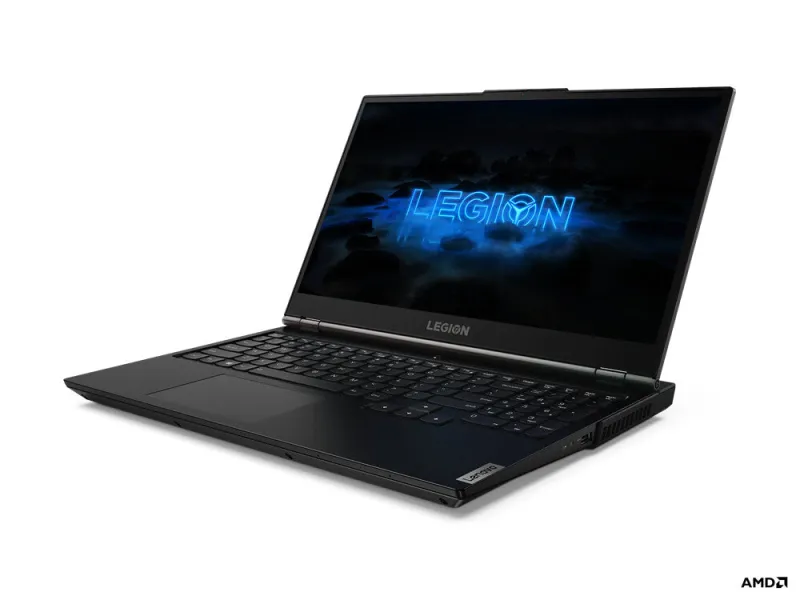

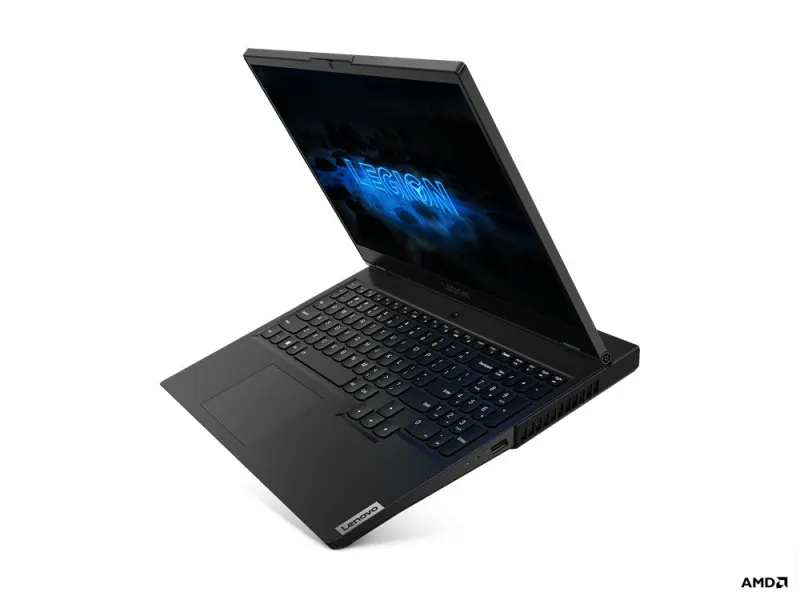

Lenovo Legion 5 15ARH05 AMD Ryzen™ 5 4600H Laptop 39.6 cm (15.6″) Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® GTX 1650 Wi-Fi 6 (802.11ax) Windows 10 Home English Black
- AMD Ryzen 5 4600H (6C/12T, 3.0/4.0GHz, 3MB L2/8MB L3)
- 15.6″ FHD (1920×1080) IPS 250nits 120Hz 45% NTSC DC dimmer
- 1x 8GB SO-DIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe 3.0×4 NVMe + Empty M.2 2280 PCIe 3.0×4 SSD Slot
- NVIDIA GeForce GTX 1650 4GB
- Windows 10 Home 64
Minimal meets mighty
Offering an abundance of performance options for any gamer in a clean, minimalist design, the Legion 5 Gen 5 (15″ AMD) pairs solid AMD Ryzen 4000 series processors, NVIDIA® GeForce® graphics, and optional SSD hard drive, all thermally tuned via Legion Coldfront 2.0. Enjoy blindingly fast refresh rates on a 100% color accurate FHD display and quick controls with the TrueStrike keyboard to scream past competition.
| Design |
| Market positioning |
Gaming |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor |
Clamshell |
| Colour name |
Phantom Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Maximum refresh rate |
120 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
WVA |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Processor cache |
8 MB |
| Processor frequency |
3 GHz |
| Processor boost frequency |
4 GHz |
| Processor cores |
6 |
| Processor model |
4600H |
| Processor generation |
AMD Ryzen 4000 Series |
| Processor family |
AMD Ryzen™ 5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon Graphics |
| On-board GPU manufacturer |
AMD |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA® GeForce® GTX 1650 |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Built-in subwoofer |
No |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
1 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Performance |
| Motherboard chipset |
AMD SoC |
| Keyboard |
| Keyboard backlit colour |
White |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
English |
| Pointing device |
Touchpad |
| Software |
| Trial software |
Office |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Battery |
| Fast charging |
Yes |
| Battery life (max) |
9.3 h |
| Battery capacity |
80 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
No |
| DC-in jack |
Yes |
| AC adapter power |
170 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Certificates |
| Certification |
ErP lot3 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Height (rear) |
2.4 cm |
| Height (front) |
2.2 cm |
| Depth |
259.6 mm |
| Width |
363.1 mm |
| Weight |
2.3 kg |
| Packaging data |
| Package weight |
4.5 kg |
| Package height |
154 mm |
| Package depth |
447 mm |
| Package width |
367 mm |
| General |
| Product family |
Legion |
| Product series |
5 |
| Packaging content |
| AC adapter included |
Yes |
